Stone Stamping & Recycling Machine for Waste Marble and Granite Slabs
Xiamen Bestlink Factory Co., Ltd.- Type：Hydraulic Cutting Machine
- Usage：Concrete Curb, Granite, Marble
- Application：Machinery & Hardware, Art & Craft, Mineral Industry, Stone Industry
- Source Voltage：380V
- Automation：Semi-automatic

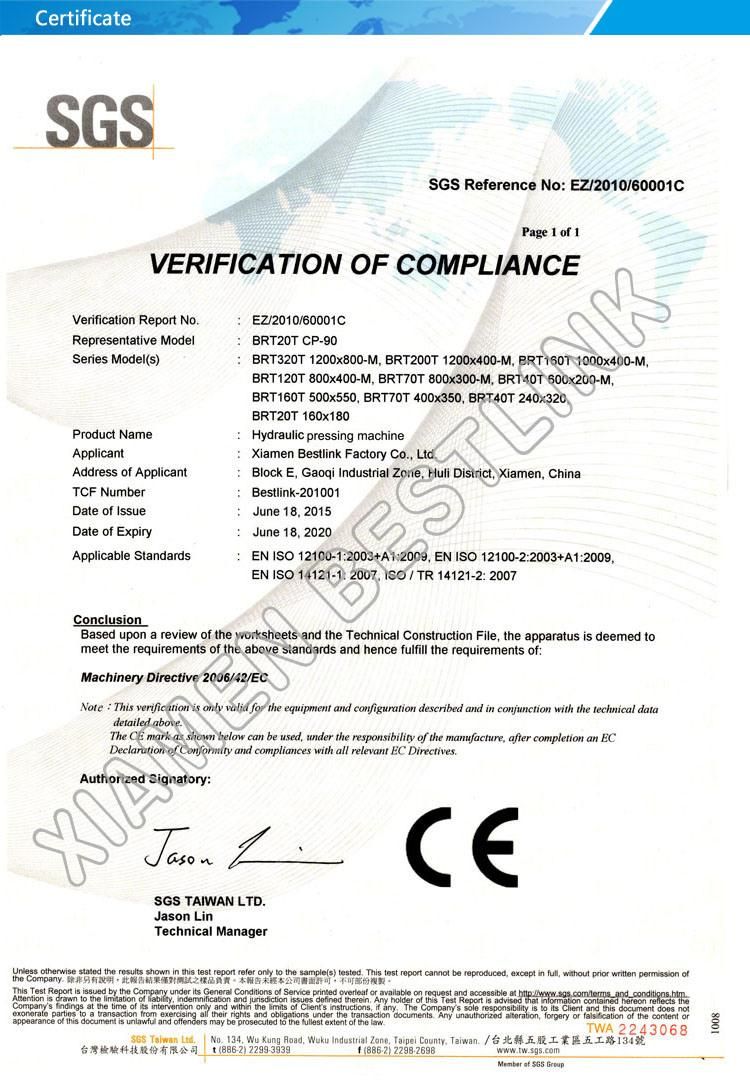

- Certification：CE
Base Info
- Model NO.：CP90
- Splitter Power：20t and 40t
- Fuctions：Stamping, Splitting, Cutting
- Color：Green
- System：Hydraulic
- Transport Package：by Plywood Case
- Specification：CE
- Trademark：BESTLINK
- Origin：China
- HS Code：84741090
- Production Capacity：1000sets Per Year
Description

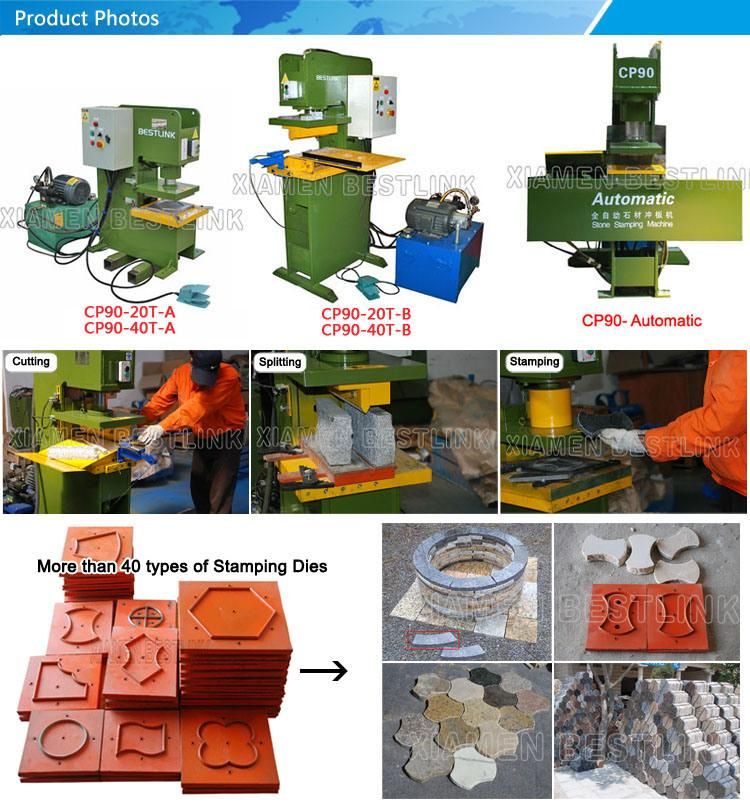

Model
CP90-20T-A
CP90-40T-A
CP90-20T-B
CP90-40T-B
CP90
(40T automatic)
Hydraulic pressure
20Mpa
20Mpa
20Mpa
20Mpa
20Mpa
Splitting power
20T
40T
20T
40T
40T
Electric motor power
4kw
7.5kw
4kw
7.5kw
7.5kw
Max.slab stamping size
30cm×30cm×5cm
30cm×30cm×8cm
30cm×30cm×5cm
30cm×30cm×8cm
30cm×30cm×8cm
Max splitting length
30cm
35cm
30cm
35cm
Max splitting height
1-5cm
5-8cm
1-5cm
5-8cm
1-5cm
Machine size
70*86*113cm
80*100*150cm
80*100*150cm
80*100*150cm
80*100*150cm
Weight
420kg
550kg
500kg
580kg
650kg
Fuctions
stamping,splitting
stamping,splitting
stamping,cutting,splitting
stamping,splitting,cutting
stamping
