• Model NO.：QB600
• Cutting Ability：Medium Speed
• Control：CNC
• Certification：ISO, CE
• Color：Green
• Max.Blade Size：600mm
• Max.Cut Length：3000mm
• Max.Cut Width：1200mm
• Weight：2800,3200kg
• Transport Package：in Crate
• Specification：4.5*2.3*2.3m
• Trademark：AGA
• Origin：China
• HS Code：84641090
• Production Capacity：50sets,Month

Basic Info.

Model NO. QB600 Cutting Ability Medium Speed Control CNC Certification ISO, CE Color Green Max.Blade Size 600mm Max.Cut Length 3000mm Max.Cut Width 1200mm Weight 2800/3200kg Transport Package in Crate Specification 4.5*2.3*2.3m Trademark AGA Origin China HS Code 84641090 Production Capacity 50sets/Month

Product Description

Stone/Granite/Marble Edge Cutting Machine
Description :
A solid machine cuts and trims the edge of stone slabs.
The machine is made of joint structure and with strong steel base ensuring stability when work.
The beam lifts up and down via motor and the blade travels on the beam by precise screw rod, which ensures the precise location of cutting point. The table is on the sealed oil-immersion guide rails and moves smoothly by hand.
The cutting machine is with high-grade mechanical and electrical parts ensuring the machining accuracy and stable performance.
It is an ideal and highly cost-effective equipment for edge cutting work.

Stone Edge Cutting Machine Specification :

Model		QB600A	QB600B
Blade size	mm	Φ300-Φ600	Φ300-Φ600
Max. cut length	mm	3000	3000
Max. cut width	mm	1200	1200
Spindle motor	Kw	11	15
Total power	Kw	11.75	15.75
Water consumption	m³/h	1.8	1.8
Size	m	4.9×2.5×2.1	4.9×2.5×2.1
Weight	Kg	2800	3200

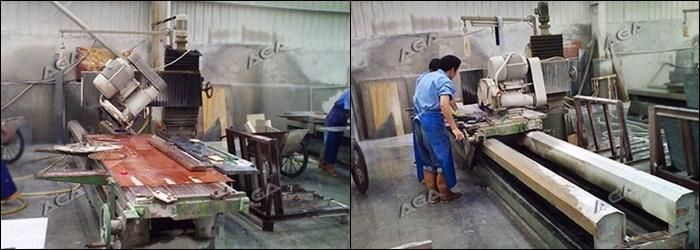

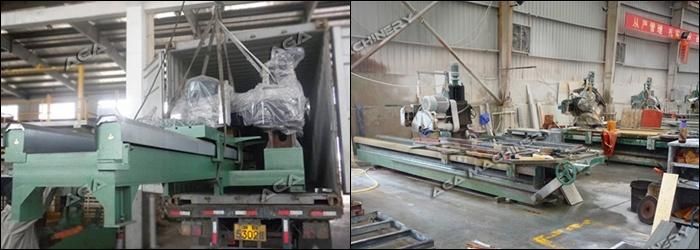

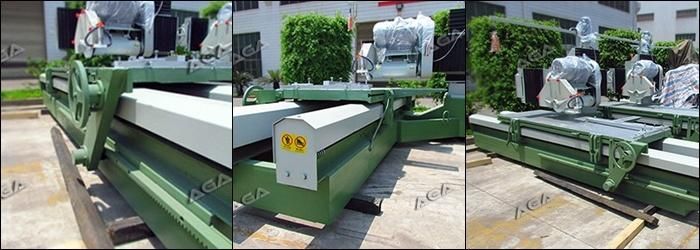

Stone Edge Cutting Machine Pictures :






Guarantee & after sale service
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.

FAQ:
1, How to pay to you ?
 T/T in advance We accept 30% deposit , 70% before shipment
2, How long is the delivery time?
For standard machines, it would be 2-5 weeks; For non-standard machines and customized machines according to client s specific requirements, it would be 10 days longer.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, What is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
Save space as much as possible for container loading .

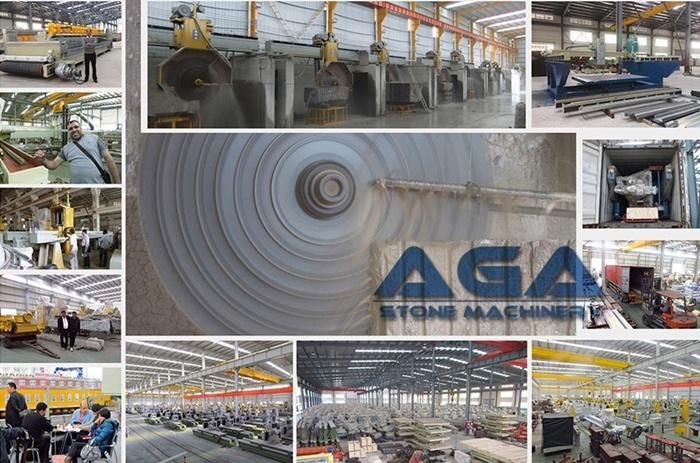

Our Company :
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. the products include bridge saw, block cutter, polishing machine as well as equipment for other construction stones. the equipment has been successfully exported to the world stone market in USA, Canada, Europe, the Mid-East, Egypt, India, etc.


AGA understands that machinery creates value for the customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipment of high quality and advanced technology to assist customers in their pursuit of a true competitive advantage. our philosophy is all about professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.

 AGA Product:
Stone cutting machine, multi blades block cutter, automatic bridge cutting machine, bridge saw, edge cutting machine, edge polishing machine, profile cutting machine, arm polisher machine, splitting machine, pressing machine, stone crusher. CNC Machine, CNC Cutting Machine

 Keyword :
Stone cutting machine, granite edge cutting machine, marble cutter, edge cutting machine, marble cutting machine, granite cutting machine
