• Model NO.：XZQQ625A
• Control：CNC
• Certification：ISO, CE
• Max. Cutting Size：3200*2000
• Max. Cut Thick：170mm
• Spindle Motor：15kw
• Table Rotation：360 Degree
• Dimention：6*5*2.6m
• Transport Package：Plastic Packing
• Specification：blade tilting 45 degree
• Trademark：AGA
• Origin：Xiamen
• HS Code：84641010
• Production Capacity：3600sets,Year

Blade size400 - 625 mm   16" - 25"Cut length3200 mm    126"Cut width2000 mm    78"Cut thick170 mm     6.7"Blade tilt0 - 45°Table rotate0 - 360°Table tilt0 - 85°Spindle motor15 Kw      20 HPSize (L×W×H)6×5×2.6 m    20'×16'×8.5'Weight7200 Kg     16,000 Lbs
Stone Bridge Cutter Specification:

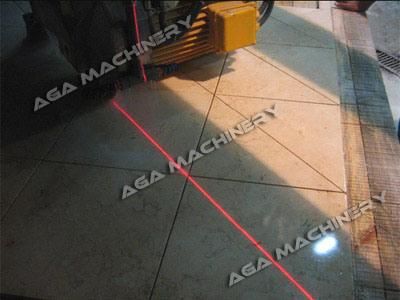

The laser guide and sensors gives high accuracy for the machining tolerance.



The blade travels on the beam and it also provides power tilting 0 - 45 degree for mitre edge trim.



The table turns 0 - 360 degree automatically and it also tilts 0 - 85 degree hydraulic for easy load and unload of the material.

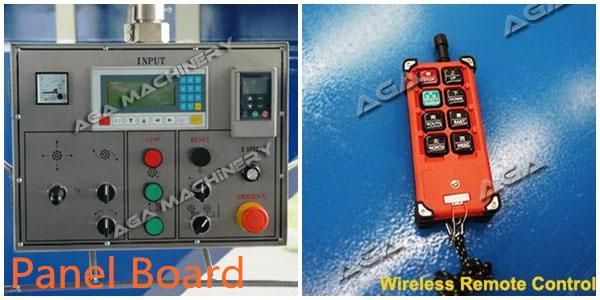

This monobloc bridge saw machine is computer control and able to program for up to 99 repeat cuts automatically and also capable of manual operation.Also all the functions are operated on the control panel that make it very user friendly.



Guarantee & after sale service:

(1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
(2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
(3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.

FAQ:

1, How to pay to you ?
 T/T in advance. We accept 30% deposit , 70% before shipment

2, How long is the delivery time?
For standard machines, it would be 2-5 weeks

3, Do You Arrange Shipment For The Machines?
For FOB or CIF price, we will arrange shipment for you.

4,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release

5, How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package


AGA Company:
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. the products include bridge saw, block  cutter, polishing machine as well as equipments for other construction stones. the equipments have been successfully exported to world stone market in usa, canada, europe, mid east, egypt, india, etc.



AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers  in their pursuit of a true competitive advantage. our philosophy is all about  professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately

Products of AGA:
Stone cutting machine, multi blades block cutter, automatic bridge cutting machine, bridge saw, edge cutting machine, edge polishing machine, profile cutting machine, arm polisher machine, splitting machine, pressing machine, stone crusher.

Keyword:
Laser Bridge Cutter,Bridge saw,Cutting machine,Marble saw,Granite saw,Bridge cutting machine,
