• Model NO.：Yhjj-600-2000
• Control：PLC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Column of Diameter：Φ600mm-Φ2000mm
• Max Cutting Width：1300mm
• Outline Dimension：6300*5150*2100mm
• Main Motor：4kw
• Gross Motor：9.5kw
• Gross Weight：4500kg
• Water Consumption：4m3,H
• Color：White,Blue
• Transport Package：Load in a 20 Feet Container
• Specification：6300*5150*2100mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. Yhjj-600-2000 Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Column of Diameter Φ600mm-Φ2000mm Max Cutting Width 1300mm Outline Dimension 6300*5150*2100mm Main Motor 4kw Gross Motor 9.5kw Gross Weight 4500kg Water Consumption 4m3/H Color White,Blue Transport Package Load in a 20 Feet Container Specification 6300*5150*2100mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

Product Description

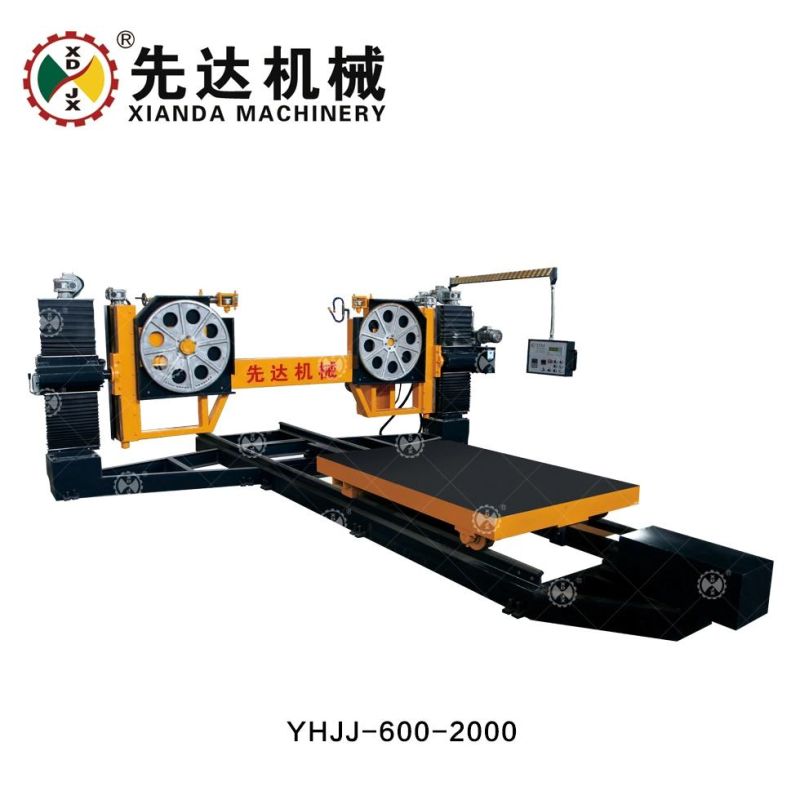

 YHJJ-600-2000 granite stone  machine&stone cutting machine&marble cutting machine adopts the latest structure design, the saw blade which operates around the central axis, slicing blocks is controled by the worktable automatic feeding. It has the featrues of lower energy consumption and small saw kerfs(3mm sawkerfs), saving blocks, simple operation, high precision and high efficiency. Maximum's processing diameter range is 600 mm to 2000mm. It is recommended for processing the column slab at marble block.
Technical Parameter

Parameter	Unit	YHJJ-600-2000
Column of diameter	mm	600-2000
Max cutting width	mm	1300
Outline dimension	mm	6300*5150*2100
Main motor	kw	4
Gross motor	kw	9.5
Gross weight	kg	4500
Water consumption	m3/h	4

Xianda Machinery

Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
