• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Crushing Style：Grinding & Impact
• Compressive Strength (For Crushing)：>300MPA
• Crushing Degree：Fine Grinding Machine
• Finished Surface：Cut Off Tool
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Crushing Style Grinding & Impact Compressive Strength (For Crushing) >300MPA Crushing Degree Fine Grinding Machine Finished Surface Cut Off Tool Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

gold mining machines, concrete crusher, stone crushing plant

gold mining machines, concrete crusher, stone crushing plant application: 1. This series of stone crushers is One of the most popular stone-crushing equipments in the world, small stone crusher is ideally suitable for primary and secondary crushing. The highest anti-pressure strengthof crushed material is 320Mpa.  2. Our design and production are of high position both at home and abroad. One of our main products, small stone crusher is designed by our engineers with large reduction ration,even granularity, simple structure, reliable operation, convenient maintenance,low cost. It is widely used in mining, metallurgy, construction, highway, railroad,and chemistry industries

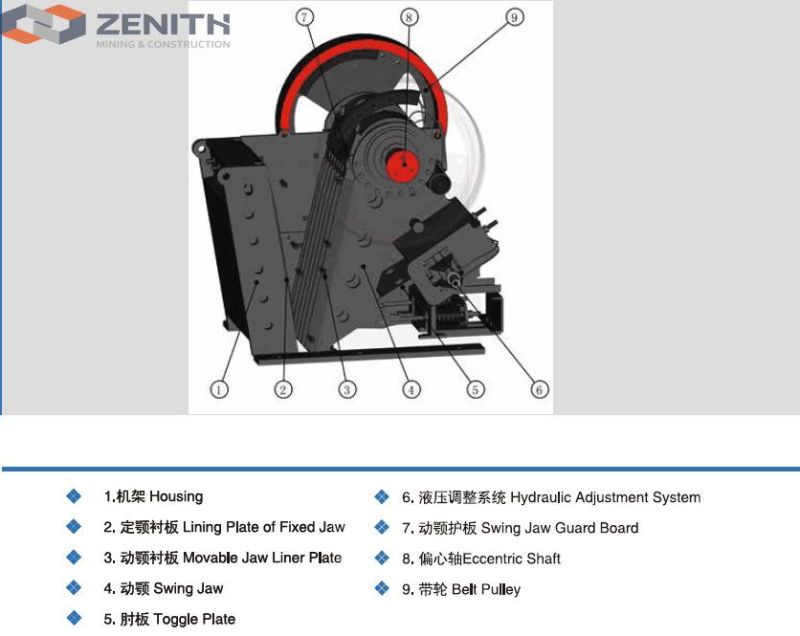

gold mining machines, concrete crusher, stone crushing plant structure:
 gold mining machines, concrete crusher, stone crushing plant mainly consists of main frame, movable( swing ) jaw, eccentric shaft, pulley, toggle plates etc. The electric motor passes power via V-belt pulley to the eccentric shaft to make the movable jaw moves in mesh, therefore, materials in crushing chamber can be crushed.

 performance features of gold mining machines, concrete crusher, stone crushing plant :
 1. The gold mining machines, concrete crusher, stone crushing plant grain size of charge is big, the breaking ratio is big. the productivity is high.2. The operation of jaw crusher is stable and reliable,fixed with over-loading protective device.3. The jaw crusher's energe consumption is low, the throwaway parts are little,the maintenance cost is low.4. The adjusting parts of the jaw crusher are reinforced emphatically. and precisi on working, reduce the frequency of rapair.5. The bearing part adopts multilayer labyrinth craft, to prolong the operating life of the bearing.6. Adopt the way of mould lubrication, the maintenance work is quicker and more convenient.7. The pulley adopts new craft and to be locked tensely, connects without keys, the maintenance is more convenient.

 gold mining machines, concrete crusher, stone crushing plant Technical data:


Model	Feed opening (mm)	Maximum feeding size (mm)	Range of discharge opening (mm)	Capacity (t/h)	Speed (r/min)	Power (kw)	Overall dimension (mm)
PEW250×1000	250×1000	220	20-40	15-50	330	30	1400×1850×1310
PEW250×1200	250×1200	220	20-40	20-50	330	37	1400×2050×1310
PEW400×600	400×600	350	35-85	15-70	250	37	1920×1460×1840
PEW760	760×1100	640	75-200	150-350	270	110	2600×2500×2200
PEW860	860×1100	720	100-225	200-500	240	132	3300×2320×3120
PEW1100	1100×1200	930	150-275	300-650	210	185	4140×2660×3560
