Stone Processing Machinery

Home > Product > Stone Cutting Machine

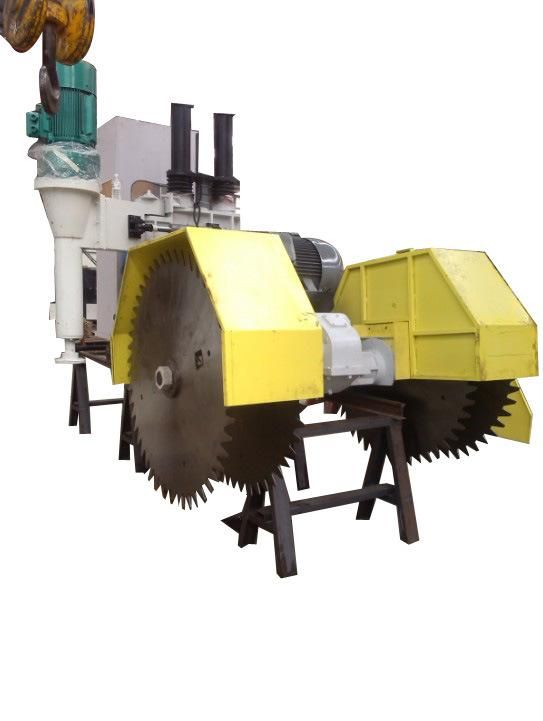

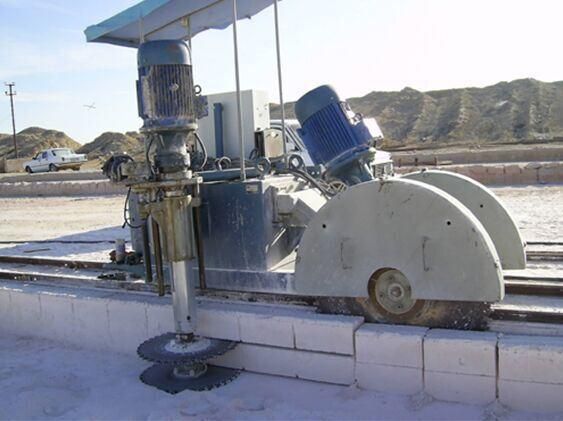

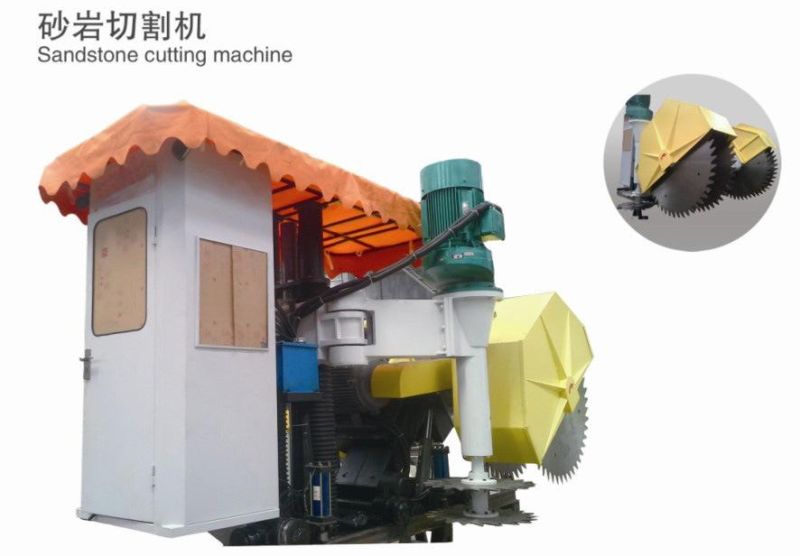

Sandstone Cutting Machine with Vertical Blades

Xiamen Bestlink Factory Co., Ltd.
  • Type：Cobble
  • Usage：Landscape
  • Drive：Electric
  • Weight：6000kg
  • No.of Blade：6PCS
  • Power：93kw

Base Info

  • Model NO.：SC-1400
  • Dimension：3600*2350*2600
  • Material：Natural Stone
  • Surface Finishing：Honed
  • Color：Green
  • Stone Form：Cut-to-Size
  • Sandstone Type：Litharenite

Description


 Name Unit Technical data
 Quantity of bladepic1-6
 Diameter of blademmφ700 /φ1400
 Thickness of blademm8()Power of main motor(vertical)kw55()Power of main motor(Horizontal) 30
 Total powerkw93
 Max. Lifting strokemm950
 Max. Moving stroke of blademm240
 Max.cutting depthmm500
 Max.cutting dimension mm400X200X200 (adjustable)
 Overall dimensionmm3600X2350X2600
 Approximate weightkg≈6000
