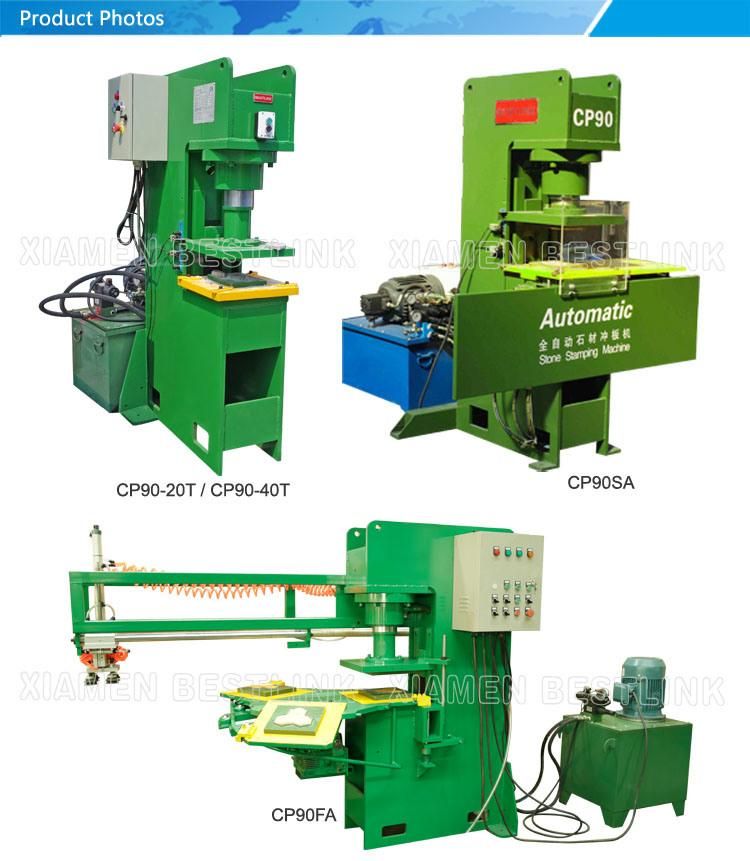

• Model NO.：CP90 Stone Stamping Machine
• Control：Artificial
• Certification：CE
• Max Stamping Thickness：50mm
• Key Word：Stone Stamping and Cutting Machine
• Dimension(L*W*H)：800*100*1500 mm
• Pressing Size：300X300X80mm
• Output Per Day：100-120 Square Meter.
• Color：Green and Blue, Other Color Available
• Main Market：America,Europe,Asia,Africa.
• Manufacturer：Xiamen Bestlink Factory Co.,Ltd.
• Speical Design：Speical Design Available

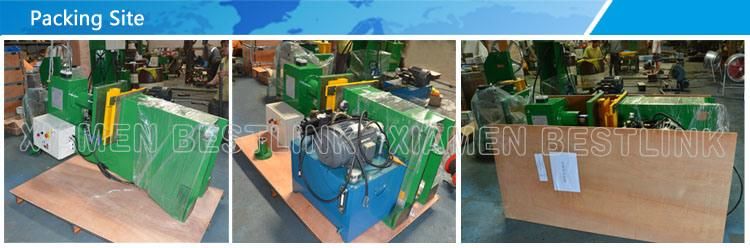

• Transport Package：Plywood Packing
• Specification：CE SGS
• Trademark：BESTLINK
• Origin：Xiamen Fujian
• HS Code：84791090
• Production Capacity：500sets,Year

ModelCP90(40T automatic)Hydraulic pressure20MpaSplitting power40TElectric motor power7.5kwMax.slab stamping size30cm×30cm×8cmMax splitting height1-5cmMachine size80*100*150cmWeight650kgFuctionsstamping
B. Structure
(1)Our machine is constituted of the bed, rub rail, slide carriage, tooth on the top, bottom jaw and hydraulic system, etc.
(2)The bed is welded by the steel plate and integrally annealed after that.
(3)Hydraulic system is made up by the oil box, electric motor, oil pump and different valves. Oil box stores hydraulic liquid. The Hydraulic liquid should be filtered by the 10μ M nets. The top of the oil box can be dismantled for clean and the oil drain hole is at the bottom.

C. Company introduction:

Xiamen Bestlink Factory Co., Ltd since 2000 is committed to providing the best drilling and cutting machine, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. It is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in china.
