• Model NO.：DQ2500
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO
• Max.Blade Size：2500mm
• Max. Cut Length：3300mm
• Max.Cut Width：2200mm
• Max. Cut Depth：1100mm
• Lifting Stroke：1350mm
• Spindle Motor：45,55kw
• Dimention：7.8*4.3*3.7m
• Transport Package：20gp
• Specification：7.8m*4.3m*3.7m
• Trademark：AGA
• Origin：China
• HS Code：84641010
• Production Capacity：100,Month

Basic Info.

Model NO. DQ2500 Automation Automatic Cutting Ability High Speed Control CNC Certification ISO Max.Blade Size 2500mm Max. Cut Length 3300mm Max.Cut Width 2200mm Max. Cut Depth 1100mm Lifting Stroke 1350mm Spindle Motor 45/55kw Dimention 7.8*4.3*3.7m Transport Package 20gp Specification 7.8m*4.3m*3.7m Trademark AGA Origin China HS Code 84641010 Production Capacity 100/Month

Product Description

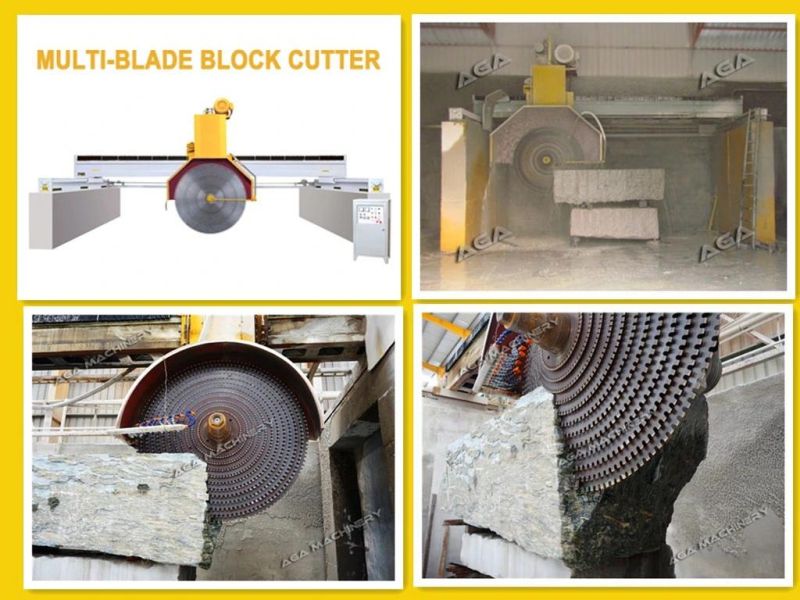

Multi Blades Block Cutter DQ2200 Introduction :

Equipment applicable for cutting granite, marble, sandstone, limestone, etc.

PRODUCT  FERTURES
1.A bridge type reliable and heavy duty machine with the latest technology for sawing granite block into slabs.
2.Suitable for running with one blade and multi blades, which greatly improves the production output.

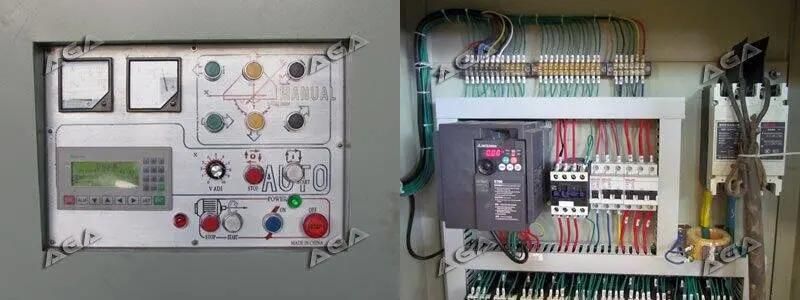

The machine is microcomputer control and works by program automatically and also capable of manual operation.
3.The heavy cast steel bridge provides excellent balance when working ensuring uniform thickness of slabs.




blade/head lift by 4 columns



Specification :

Model	Unit	2200	2500	2800
Max. blade size	mm	Φ2200	Φ2500	Φ2800
Max. cut length	mm	2800	3300	3000
Max. cut width	mm	2000	2000	2000
Max. cut depth	mm	950	1100	1250
Spindle motor	Kw	45	45	45
Total power	Kw	52	52	52
Size (L×W×H)	mm	7×4.3×5.3	7.8×4.3×5.5	7.3×4.3×5.8
Weight	Kg	11000	11500	12000

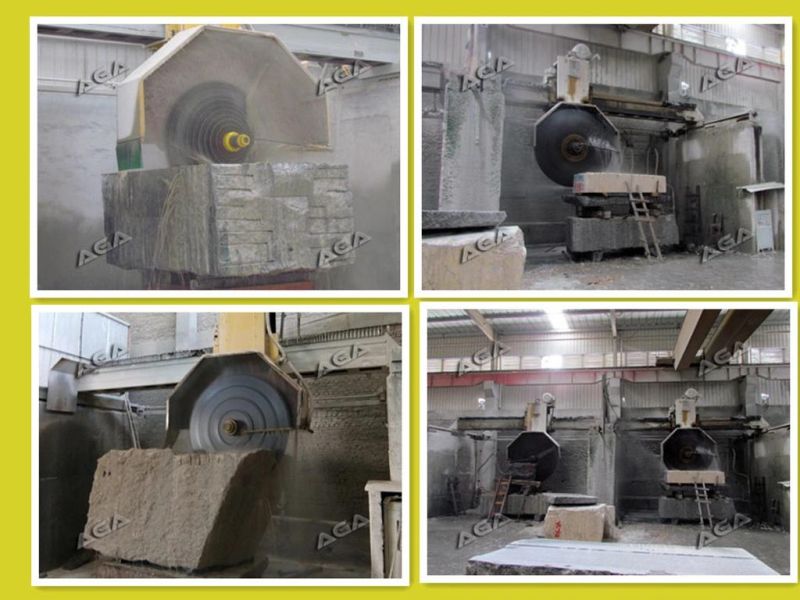

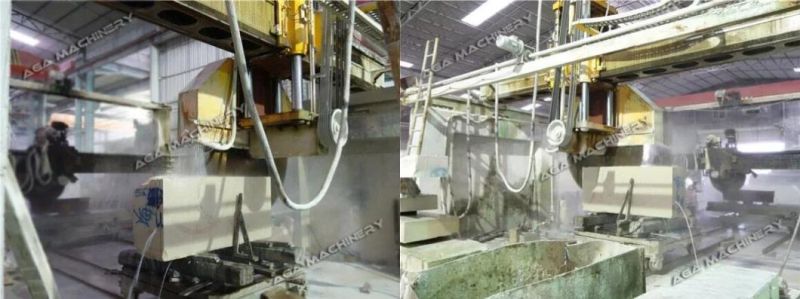

1. Working :

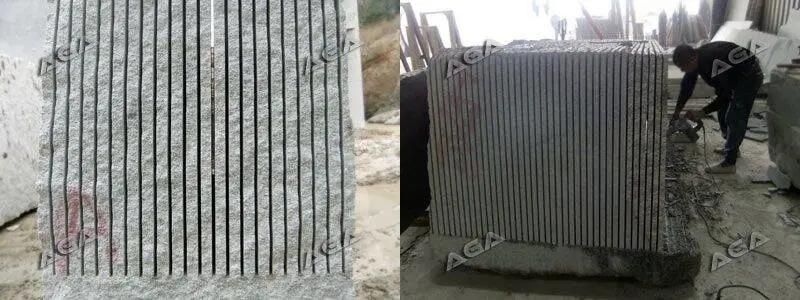

2. Product :


3. Our Factory
Our Company :


AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. the products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. the equipments have been successfully exported to world stone market in usa, canada, europe, mid east, egypt, india, etc.

AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers in their pursuit of a true competitive advantage. our philosophy is all about professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.

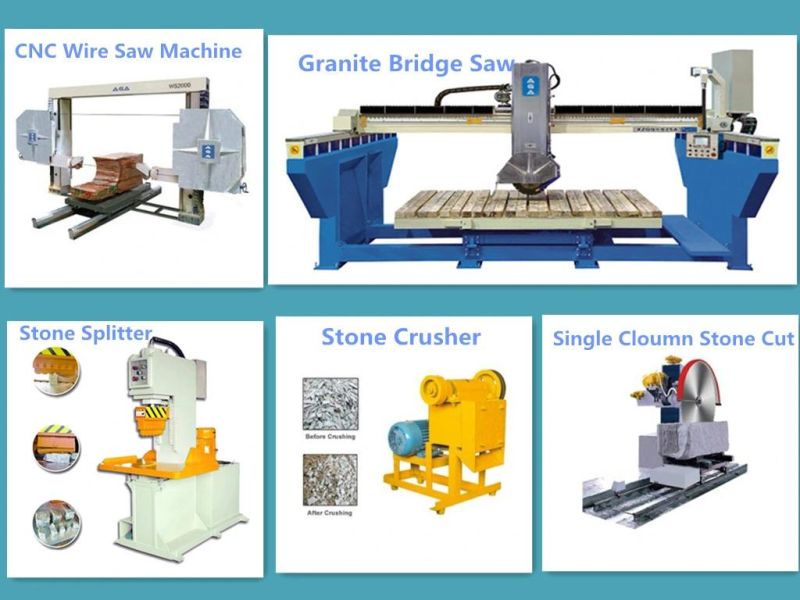

AGA Product:
Stone cutting machine, multi blades block cutter, automatic bridge cutting machine, bridge saw, edge cutting machine, edge polishing machine, profile cutting machine, arm polisher machine, splitting machine, pressing machine, stone crusher.



For more details information, please visit our website: agastonemachine.en.made-in-china.com or agastonemachine.en.made-in-china.com , thanks !
