• Model NO.：DQCM-26-95-A
• Control：PLC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Max Blade Diameter：Φ2800mm
• Max Processing Length：5600-4700mm
• Max Processing Width：2200mm
• Max Lifting Stroke：1150mm
• Water Consumption：25m3,H
• Main Motor：110kw
• Gross Motor：126kw
• Outline Dimension：10000*5400*3800mm
• Gross Weight：25500kg
• Blade：Multi-Blades
• Transport Package：Load in a 40 Feet Container
• Specification：10000*5400*3800mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. DQCM-26-95-A Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Max Blade Diameter Φ2800mm Max Processing Length 5600-4700mm Max Processing Width 2200mm Max Lifting Stroke 1150mm Water Consumption 25m3/H Main Motor 110kw Gross Motor 126kw Outline Dimension 10000*5400*3800mm Gross Weight 25500kg Blade Multi-Blades Transport Package Load in a 40 Feet Container Specification 10000*5400*3800mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

Product Description

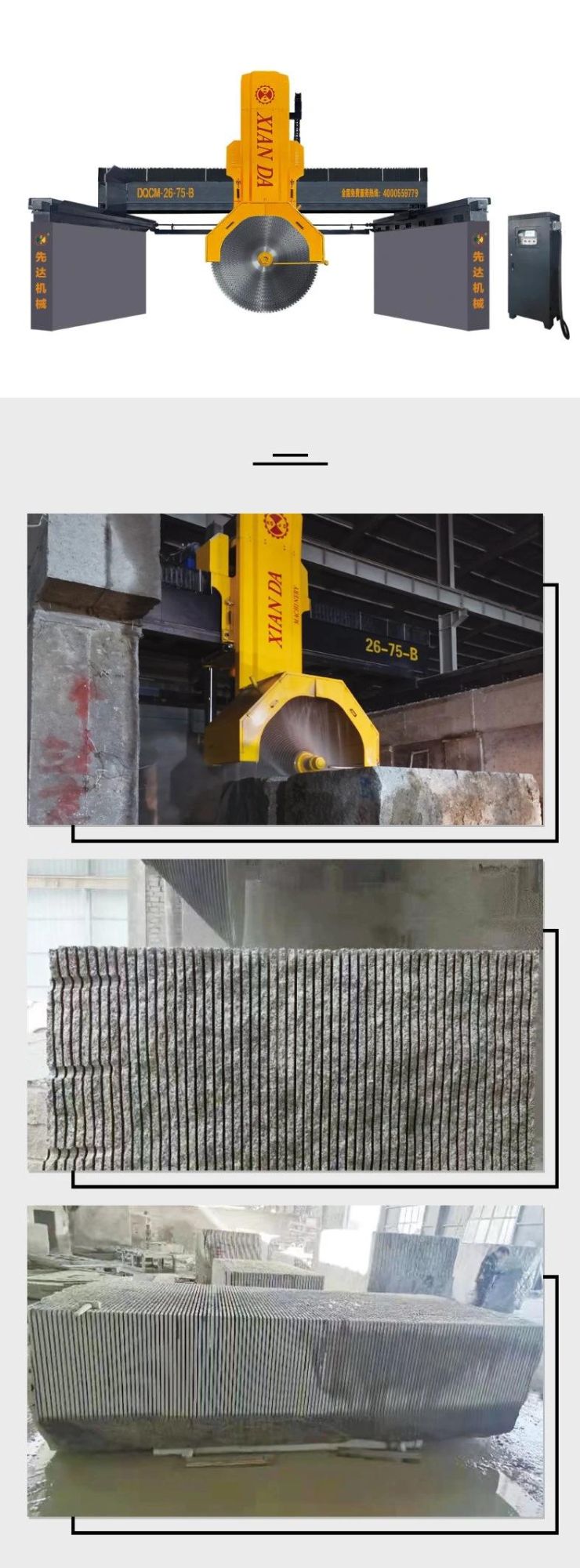

DQCM-26-75, Dual driver heavy duty block cutting machine, adopts our patented dual-drive mode(one pull and one push) for moving left and right, and can adjust the moving speed according to the material, and cooperated with the Dual V-track beam track, so moving more stable; lifting using hydraulic, with four guide post made of 200mm solid round steel chrome-plated; front and back adopt screw drive and double nut drive, and cooepate with the oil-immersed sidebeam rail, which is more wear-resistant; adopts more longer and more heavy casting beams, cutting more stable. Main parts adopt imported materails; the block can be placed in the ground directly to save wokrtable and its maintenance costs; thus the whole machine is featured as high cutting efficiency , high slicing precision, flatness of plate after cutting, high stablility, easy-operating to suit specially cutting granite block.

Technical Parameter



Parameter	Unit	DQCM-26-75-A	DQCM-26-75-B	DQCM-26-95-A	DQCM-26-95-B
Max blade diameter	mm	φ1650-2500	φ1650-2500	φ1650-2500	φ1650-2500
Max processing length	mm	3600-2700	3600-2700	5600-4700	5600-4700
Max processing width	mm	2200	3300	2200	3300
Max lifting stroke	mm	1150	1150	1150	1150
Water consumption	m3/h	25	25	25	25
Main motor	kw	90	90	110	110
Gross motor	kw	105	105	126	126
Outline dimension	mm	8000*5400*3800	8000*6500*3800	10000*5400*3800	10000*6500*3800
Gross weight	kg	22500	23500	25500	26500





Xianda Machinery

Fujian  Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
