• Model NO.：DQ2200
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Color：Yellow
• Max. Cut Length：300mm
• Max. Cut Width：2000mm
• Max. Cut Depth：1100mm
• Weight：11500kg
• Spindle Motor：45kw
• Total Power：52kw
• Transport Package：in Crate
• Specification：7.8*4.3*3.7
• Trademark：AGA
• Origin：China
• HS Code：84641010
• Production Capacity：50sets,Month

Basic Info.

Model NO. DQ2200 Cutting Ability High Speed Control CNC Certification ISO, CE Color Yellow Max. Cut Length 300mm Max. Cut Width 2000mm Max. Cut Depth 1100mm Weight 11500kg Spindle Motor 45kw Total Power 52kw Transport Package in Crate Specification 7.8*4.3*3.7 Trademark AGA Origin China HS Code 84641010 Production Capacity 50sets/Month

Product Description

Stone Block Cutting Machine DQ2200/2500/2800
Multi Blades Block Cutter
Granite Marble Cutting Machine

Introduction :
A bridge type reliable and heavy duty machine with the latest technology for sawing granite block into slabs. Suitable for running with one blade and multi blades, which greatly improves the production output.
The machine is microcomputer control and works by program automatically and also capable of manual operation.
The heavy cast steel bridge provides excellent balance when working ensuring uniform thickness of slabs.

Block Cutting Machine DQ2200/2500/2800 Features:
1. Mainly used for cutting granite stone blocks;
2. Logical control system and bridge structure ensure a stable performance;
3. Blade combinations in different diameters work simultaneously;
4. Complete with hydraulic lifting system;
5. Complete with oil-immersed guide rail for crossbeam and side beam;
6. The machine moves along the crossbeam while cutting stone blocks;
7. Table (optional);
8. Computer controlled system makes the machine easy to operate;
9. Blade combinations are flexibly decided according to specific customer need.

Comparing with normal single blade cutting machine, this machine has following advantages:
Trolley is not necessary when it cutting,You can lie the block on the ground and cutting several blocks of different sizes at one time.
The crossbeam movement on the side beams. There precise cutting and less maintenance are available by this machine.
The machine can take multi-blades(2500/2000/1600/1200/800mm, 2200/2000/1800/1600/1370/1160/950/740/530mm). Daily production capacity for MID-hard granite can be 170sqm while the single blade life is only 30sqm.


Specification :

Model	Unit	2200	2500	2800
Max. blade size	mm	Φ2200	Φ2500	Φ2800
Max. cut length	mm	2800	3300	3000
Max. cut width	mm	2000	2000	2000
Max. cut depth	mm	950	1100	1250
Spindle motor	Kw	45	45	45
Total power	Kw	52	52	52
Size (L×W×H)	m	7×4.3×5.3	7.8×4.3×5.5	7.3×4.3×5.8
Weight	Kg	11000	11500	12000

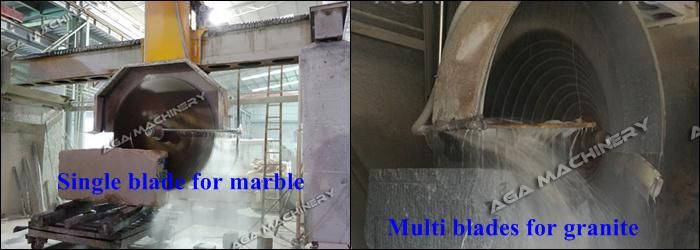

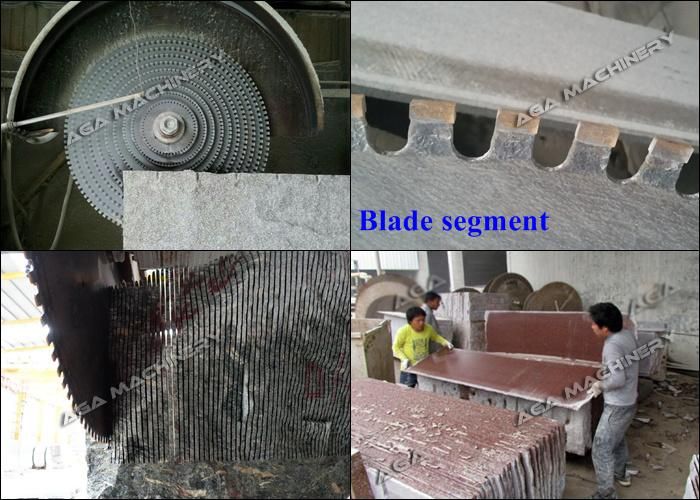

Block Cutting Machine DQ2200/2500/2800 Pictures :






Guarantee & after sale service
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.

FAQ:
1, How to pay to you ?
 T/T in advance We accept 30% deposit , 70% before shipment
2, How long is the delivery time?
For standard machines, it would be 2-5 weeks; For non-standard machines and customized machines according to client s specific requirements, it would be 10 days longer.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

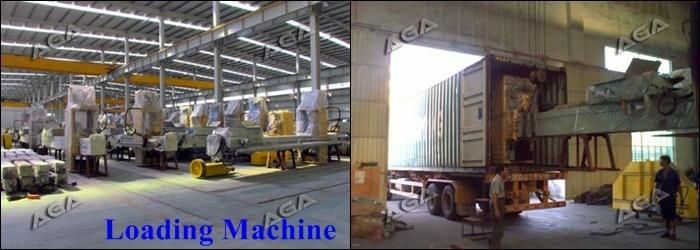

5, What is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
Save space as much as possible for container loading .

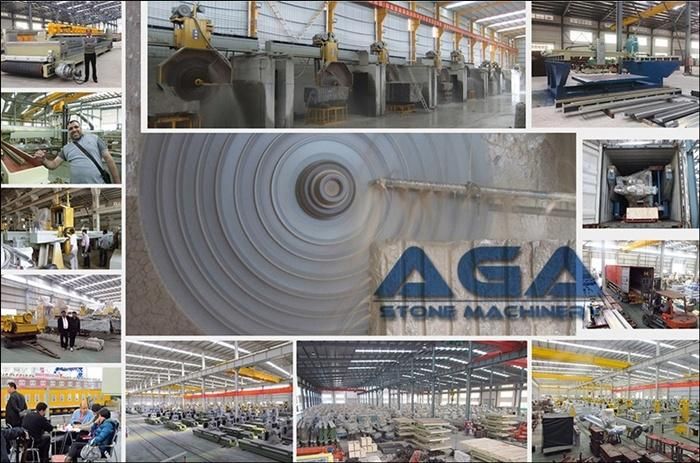

Our Company :
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. the products include bridge saw, block  cutter, polishing machine as well as equipments for other construction stones. the equipments have been successfully exported to world stone market in usa, canada, europe, mid east, egypt, india, etc..


AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers  in their pursuit of a true competitive advantage. our philosophy is all about  professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.

AGA Product :
Stone cutting machine, multi blades block cutter, automatic bridge cutting machine, bridge saw, edge cutting machine, edge polishing machine, profile cutting machine, arm polisher machine, splitting machine, pressing machine, stone crusher, CNC machine, CNC cutting machine
