• Model NO.：PE500x750, PE600x900, PE750x1060, PE900x1200
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• After-Sale Service：for Whole Using Year
• Test&Installation：Engineer Assigned
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：CE, ISO
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：40-850tph

Basic Info.

Model NO. PE500x750, PE600x900, PE750x1060, PE900x1200 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year After-Sale Service for Whole Using Year Test&Installation Engineer Assigned Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification CE, ISO Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 40-850tph

Product Description

China High Quality Jaw Stone Crusher with 40-650tph

Zenith Jaw Stone Crusher are designed for a wide range of applications such as: Limestone, gravel, granite, coal, cement rock, and many types of minerals. It can increase profits by maximizing the production of marketable cubical product. We provide efficiency, economy and the durability through selective reinforcement of critical components.

Application of Jaw Stone Crusher:

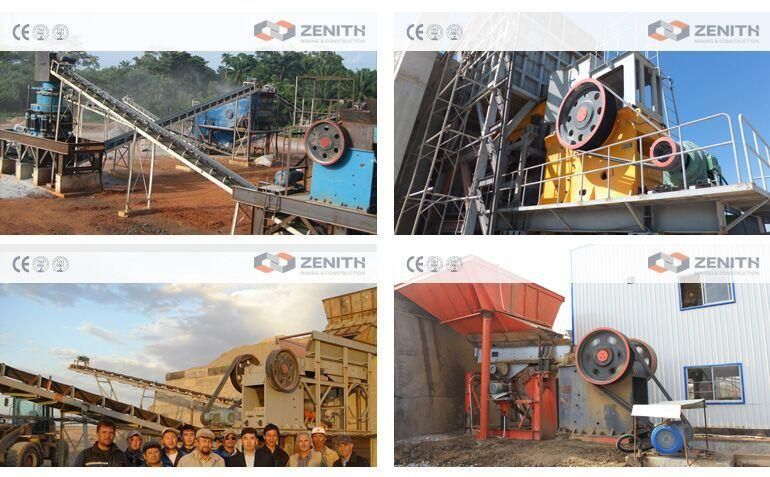

Jaw Stone Crusher is widely used in various materials processing of mining &construction industries, such as it is suit for crushing granite, marble, basalt, limestone, quartz, cobble, iron ore, copper ore, and some other mineral and rocks, with compression strength less than 320Mpa.

jaw crusher Work principle:

PE series jaw crusher adopts extrusion crushing. Its working principle is as follows: The motor drives belt and pulley wheel, making the movable jaw upside and down through the eccentric shaft. When the movable jaw rises, the angle between toggle plate and movable jaw becomes large, and the movable jaw plate is pushed close to the fixed jaw plate, meanwhile the materials are crushed or milled, rubbed to realize the crushing purpose. On the contrary, when the movable jaw down, the angle becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the rod and spring. Then materials have been crushed are discharged from the bottom opening of crushing cavity. With the continuous rotation of the motor, the movable jaw cyclically crush and discharge materials, realizing mass production.

Jaw Crusher Features and Benefits :

1. The cavity of jaw crusher is deep and no dead area, so it prompts the feeding capacity and output.
2. The size of the reduction ratio is big and the production size is even.
3. Adjustment device of the spacer style discharge mouth is convenient and reliable. And jaw crusher's adjustment range is big what improves the flexibility of equipment.
4. Lubrication system of jaw crusher is safe and reliable. Unit replacement is convenient. And the work of maintenance is small.
5. Its structure is simple and operation is reliable. The operation charge is low.
6. Energy conservation : single machine's energy conservation 15%-30% and the machine system energy conservation is more than twice of the single machine.
7. The adjustment range of the outlet is big, so it can satisfy the requirement of different customers.
8. The noise of jaw crusher is low and dust is little.

jaw crusher technical data:

Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PE200×350	200×350	170	20-50	2-6	220	6-7.5	Y160M-6/7.5
PE250×400	250×400	210	20-60	5-20	310	6-15	Y180L-6/15	1450×1315×1296
PE250×750	250×750	210	20-60	8-22	320	6-30	Y225M-6/30
PE500×750	500×750	425	50-100	45-100	275	6-55	Y280M-6/55	1890×1916×1870
PE600×900	600×900	500	65-160	70-120	250	6-75	Y315S-6/75	2520×1840×2303
PE750×1060	750×1060	630	80-140	130-260	250	8-90	Y315L1-8/90	2620×2302×3110
PE900×1200	900×1200	750	95-165	220-380	200	8-130	JR127-8/130	3789×2826×3025
PE1000×1200	1000×1200	850	195-265	230-380	200	8-130	JR127-8/130	3889×2826×3025
PE1200×1500	1200×1500	1020	150-300	400-800	220	8-200	YR355M4-8/200	4930×3150×3700
