• Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
• Condition：New
• Color：Red
• Power(W)：90-600kw
• Capacity(T/H)：27-1460
• Place of Origin：Shanghai, China (Mainland)
• Brand Name：Chuangshen
• Model Number：Cpyq
• Dimension(L*W*H)：Negotiable
• Weight：According to The Stone Crusher
• Warranty：Mainframe Is One Year (Excluding The Quick Wear PA
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：Export Standard
• Specification：Industrial Grade
• Trademark：chuangshen
• Origin：Shanghai
• Production Capacity：5set,Day

Basic Info.

Certification CE, ISO, GOST, SONCAP, UL, CCC, API Condition New Color Red Power(W) 90-600kw Capacity(T/H) 27-1460 Place of Origin Shanghai, China (Mainland) Brand Name Chuangshen Model Number Cpyq Dimension(L*W*H) Negotiable Weight According to The Stone Crusher Warranty Mainframe Is One Year (Excluding The Quick Wear PA After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Export Standard Specification Industrial Grade Trademark chuangshen Origin Shanghai Production Capacity 5set/Day

Product Description

Hydraulic cone crusher, Single cylinder hydraulic cone crusher, Basalt cone crusher



I. CPYQ Single Cylinder Hydraulic Cone Crushers



Single cylinder hydraulic cone crushers are developed by introduction of foreign technology and widely applied in mining, metallurgy and building material industries. They can crush ores and rocks with various hardness even the most hardness. CPY Series have simple structure, excellent productivity, low energy consumption and even product size.



II. Main advantages of Single Cylinder Hydraulic Cone Crusher



1. CPYQ Single cylinder hydraulic cone crusher is made by Japanese technology. The machine uses laminated crushing principle, one cylinder replace the traditional hydraulic spring protection, and lubricates.

2. No packing liner, rapid for replacement and reduced downtime.

3. Material level detection device can automatically remove the excess material; CPYQ-1212 got the device, can be evenly feeding.

4. Discharge opening with hydraulic adjustment makes it quick and easy.

5. Transmission with arc-shape gear gives stronger power and lighter noise.

6. Blowing dust system on the top gives longer lives of all bronze bushing`s spare parts.

7. Varied cooling modes of oil lubrication system expand the use of geographical range.

8. Single cylinder hydraulic cone crushers have sided cone and different eccentricity to fit for different customers. Simple construction contributes to easy maintenance. High accuracy parts can satisfy reliability and stability in long-time running.



III. CPYQ Single Cylinder Hydraulic Cone Crushers are appropriate for



1. Use situation versatility
2. Ores and rocks with various hardness
3. Concrete basis and steel structure basis

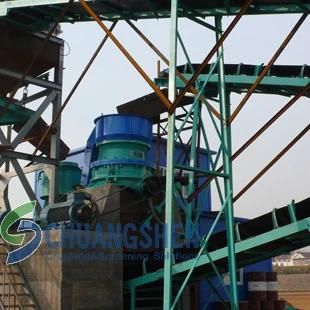

4. Stationary, half-mobile and mobile application

Model	Diameter Of Crushing Cone  (mm)	Feed Opening Size  (mm)	Max Feed Size (mm)	Discharging Size  (mm)	Capacity  (t/h)	Power  (kw)	Overall Dimensions  (LxWxH)(mm)
CPYQ-0908	900	80	65	4-12	27-48	90-132	1955x1876x2846
CPYQ-0912	900	120	100	8-15	38-55	90-132	1955x1876x2846
CPYQ-0918	900	180	150	10-25	42-80	90-132	1955x1876x2846
CPYQ-0925	900	250	210	20-40	65-180	90-132	1955x1876x2846
CPYQ-1212	1200	120	100	6-15	120-185	160-220	2335x2732x3253
CPYQ-1216	1200	160	135	10-20	160-220	160-220	2335x2732x3253
CPYQ-1224	1200	240	205	15-25	200-250	160-220	2335x2732x3253
CPYQ-1232	1200	320	270	25-40	260-335	160-220	2335x2732x3253
CPYQ-1515	1500	150	125	10-20	230-370	315-450	2952x3080x4607
CPYQ-1525	1500	250	210	15-25	350-465	315-450	3100x2900x4557
CPYQ-1533	1500	330	280	25-40	470-650	315-450	3100x9000x4557
CPYQ-1541	1500	410	350	40-55	650-780	315-450	3100x2900x4607
CPYQ-1818	1800	180	150	10-25	390-610	500-600	3452x3580x5007
CPYQ-1828	1800	280	235	19-38	450-800	500-600	3452x3580x5007
CPYQ-1839	1800	390	330	32-55	780-1250	500-600	3452x3580x5007
CPYQ-1847	1800	470	400	38-64	820-1460	500-600	3452x3580x5007
