• Model NO.：PC series
• Compressive Strength (For Crushing)：250-300MPA
• Crushing Degree：Intermediate Crusher
• Finished Surface：Outer Surface Process
• Certification：CE
• Condition：New
• Color：as Customer Request
• Transport Package：Simple or as Customer Request
• Specification：PC
• Trademark：Jinchuan
• Origin：Chia
• HS Code：84742090
• Production Capacity：5-15

Basic Info.

Model NO. PC series Compressive Strength (For Crushing) 250-300MPA Crushing Degree Intermediate Crusher Finished Surface Outer Surface Process Certification CE Condition New Color as Customer Request Transport Package Simple or as Customer Request Specification PC Trademark Jinchuan Origin Chia HS Code 84742090 Production Capacity 5-15

Product Description

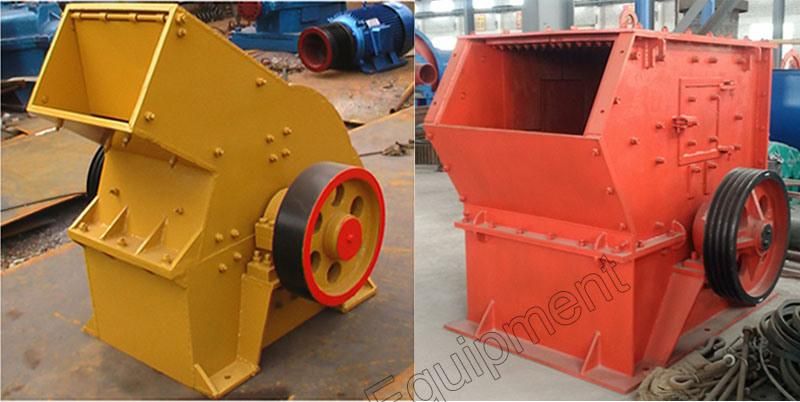

Sand making equipment hammer crusher to seling
----Working principle of hammer stone crusher
    Operating principle of Hammer Crusher. In the hammer crusher, the motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the crushed products meeting the required size can be discharged by the outlet and become the final products.

---Parameter of hammer crusher

Model	Speed(r/min)	Feed port(mm)	Feeding saize(mm)	Capacity(t/h)	Motor Power(kw)	Weight(t)	Dimension(mm)
Φ400×400	1500	145×450	≤100	5-8	11	0.9	844 ×942×878
Φ600×400	1000	295×450	≤100	10-12	18.5	1.03	1054×972×1117
Φ600×600	1000	295×570	≤100	12-18	45	2.14	1315×840×1501
Φ800×600	1000	350×570	≤120	20-25	55	2.45	1515×2586×1040
Φ800×800	1000	350×750	≤120	35-45	55	3.05	1515×2831×1040
Φ1000×800	1000	580×850	≤200	25-40	110	6.5	3206×2210×1515
Φ1000×1000	1000	580×1060	≤200	40-80	132	7.59	3514×2230×1515
Φ1250×800	750	650×850	≤200	20-50	132	11.7	2630×1780×2050
Φ1250×1250	750	650×1330	≤200	90-110	185	13.2	2630×2180×2050
Φ1400×1400	750	1050×1540	≤250	120-170	280	17.2	2790×2800×2310
Φ1600×1600	600	1500×1785	≤350	220-280	450	22.8	3350×3120×2660

----Application of stone cruser
    Hammer crusher is widely used for crushing the medium hard and crisp materials in mine, cement, coal, metallurgy, building material, highway and chemical industry.The materials that can be crushed by hammer crusher include coal, salt, chalk, gypsum, tile and limestone and also fiber structure and broken wood and paper with strong elasticity and tenacity.

----Features of hammer mill
1) new craft, wear-resisting, impact resistance.
(2) According to the customer's request, adjusting size.
(3) leak proof structure, no dust pollution
(4) compact structure, convenient maintenance, less wearing parts etc

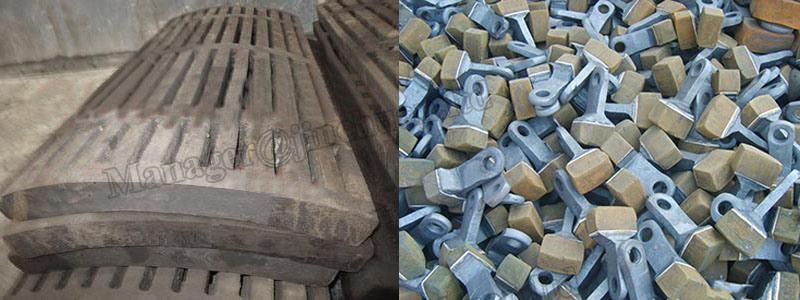

----Hammer Details
1. Emply the external refining technology, effectively reduced the harmful elements, impurity and oxygen and hydrogen harm, greatly enhanced the abrasion resistance and impact toughness of the steel.
2..Using proprietary metamorphic agent for modification treatment, fine grains, improve carbide configuration and distribution, and to improves the abrasion resistance and tenacity
3.Optimizing heat treatment process, make the product of uniform hardness especially, impact abrasion resistance becoming stronger.

----Our service
Pre-Sales Service:* Inquiry and consulting support.
                 * Sample testing support.
                 * View our Factory.
After-Sales Service: * Training how to instal the machine, training how to use the machine.
                   * Engineers available to service machinery overseas.
----FAQ
1Q:What information should customers give us in order to let us provide more efficient & suitable quotation and assistance.
A:Which product and specification do you want?
B:What's the purpose of buying the machine?
C:What is the capacity per hour?
2Q:What about the price?
A:We would give you a cheapest price according to the model and quantity.
3Q:what's the payment terms?
A:Negotiable
4Q:Are customized products accepted?
A:Your idea, your choice, we design. Nothing is impossible. We are always waiting for you here, where are you.
5Q:Why choose Jinchuan mineral eauipment co., ltd ?
A:We are the professional manufacturer in China for such industry.
B: We have R&D team who can design fully new and automatic machine to update the processing.
C: Excellent pre-sale and after-sale services. If you give me a chance, you will get it Extremely worthy value.

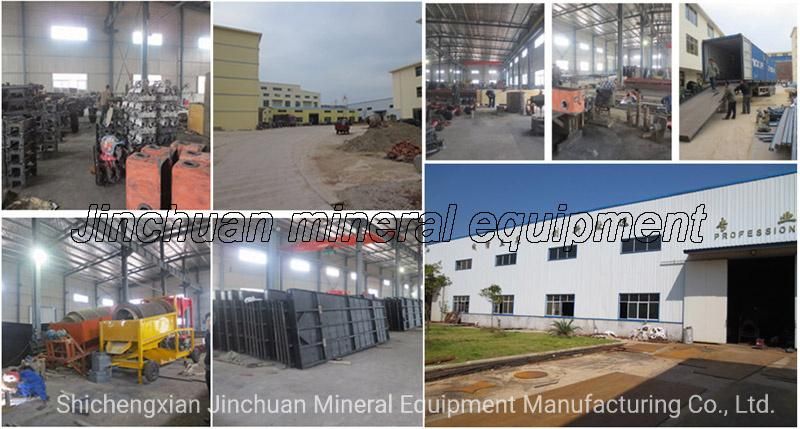

----About Jinchuan mineral equipment Co.,Ltd
 We are a high-tech company which was founded in 2003. We specialize in the research and production of mineral processing equipment.
Our distinctive prodcts include shaking table, Jig, Spriral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator,electrostatic separator, vibrating screen, gold pan, feeder, classifier, ore washing machine and lab equipment ect. Our machines are popular in separating GOLD, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite,ect.

We have a strong R&D department and experienced engineers. We can design and make OEM/ODM products according to your ideas and samples.

Quality control is more an action than a slogan. Strict quality control is implemented in all aspects of operations to meet the high standards of top-tier customers. This philosophy has permeated all levels of the production process, covering:
(1)Incoming material inspection
(2)Inspection of work-in-progress
(3)Finished product inspection
(4)Random warehouse inspections

Through many years of development, our company has become a large-scale enterprise with research, production, assembly and marketing capabilities. Our products are distributed all over the world.
We are looking forward to receiving your inquiries!
