• Model NO.：ZDQJ-700
• Control：Micropcomputer
• Certification：API, ISO, CE
• Gross Motor：18.5kw
• Water Consumption：4m3,H
• Gross Weight：6000kgs
• Transport Package：Plastic Package
• Specification：5800*4700*2900
• Trademark：Xianda
• Origin：Fujian, China (Mainland)
• HS Code：84641080
• Production Capacity：1000set Per Year

Basic Info.

Model NO. ZDQJ-700 Control Micropcomputer Certification API, ISO, CE Gross Motor 18.5kw Water Consumption 4m3/H Gross Weight 6000kgs Transport Package Plastic Package Specification 5800*4700*2900 Trademark Xianda Origin Fujian, China (Mainland) HS Code 84641080 Production Capacity 1000set Per Year

Product Description

Product Description

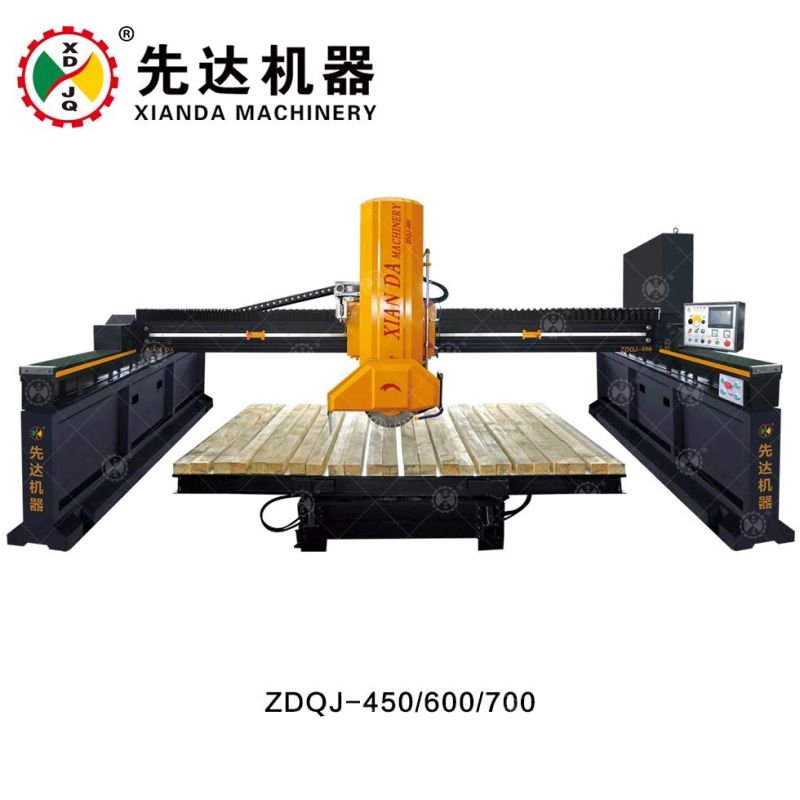

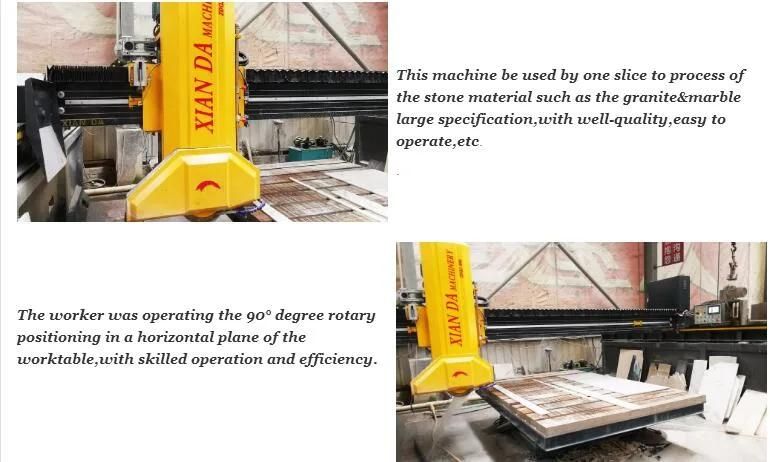

ZDQJ-450 infrared automatic stone bridge cutting machine has three type, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control leftright feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.

The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble.

Technical Parameter

Parameter	Unit	ZDQJ-450	ZDQJ-600	ZDQJ-700
Blade diameter	mm	300-450	350-600	350-700
Max processing size	mm	3200*2000*120	3200*2000*180	3200*2000*230
Dimension of worktable	mm	3200*2000	3200*2000	3200*2000
Worktable tilting degree	°	0-85°	0-85°	0-85°
Worktable rotation degree	°	0-90°/0-360°	0-90°/0-360°	0-90°/0-360°
Main motor	kw	15	18.5	18.5
Gross motor	kw	21	24	24
Water consumption	m³/h	4	4	4
Outline dimension	mm	6000*4800*2900	6000*4800*3100	6000*4800*3200
Gross weight	kg	5250	5500	5750

Xianda machinery

Fujian Jinjiang Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Xianda group team



Exhibition

Other stone cutting machines we produce:
1) Diamond wire saw machine,
2) Bridge cutting machine, bridge saw
3) a series of stone machine for special shape processing.
