• Model NO.：YT24
• Control：Artificial
• Precision：High Precision
• Application：Construction, Mineral Industry, Stone Industry
• Certification：ISO, CE
• Model No.：Yt24
• Shank (Mm)：678
• Cylinder Dia (Mm)：70
• Pistion Stroke (Mm)：70
• Working Pressure(MPa)：0.4
• Working Water Pressure(MPa)：2.70
• Air Pipe Inner Dia (Mm)：19
• Water Pipe Inner Dia(Mm)：13
• Rock Drill Hole Depth (M)：5
• Shank Size(Mm)：22*108mm
• Transport Package：Wooden Box
• Specification：ISO9001 CE SGS
• Trademark：Prodrill
• Origin：China
• HS Code：84671900
• Production Capacity：10000 PCS,Month

Basic Info.

Model NO. YT24 Control Artificial Precision High Precision Application Construction, Mineral Industry, Stone Industry Certification ISO, CE Model No. Yt24 Shank (Mm) 678 Cylinder Dia (Mm) 70 Pistion Stroke (Mm) 70 Working Pressure(MPa) 0.4 Working Water Pressure(MPa) 2.70 Air Pipe Inner Dia (Mm) 19 Water Pipe Inner Dia(Mm) 13 Rock Drill Hole Depth (M) 5 Shank Size(Mm) 22*108mm Transport Package Wooden Box Specification ISO9001 CE SGS Trademark Prodrill Origin China HS Code 84671900 Production Capacity 10000 PCS/Month

Product Description

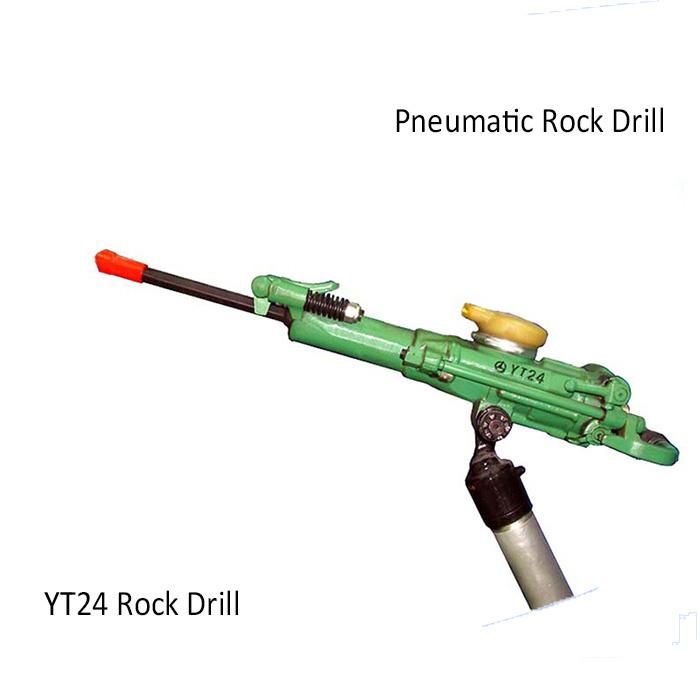

YT24 Air Leg Rock Drill

Description

Our air-leg rock drills have following features:
1. Fit for wet drilling in medium-hard or hard rock
2. Grouped control mechanism, quick to start up, with "air on, water on, air off, water off" mechanism,
convenient to handle and easy to maintain and repair.
3. Energy-saving and efficient, long service life of parts which are highly interchangeable and reliable
performance.
4. YT24 differs from similar products particularly in its high efficiency strong flushing and powerful torque.

Specification

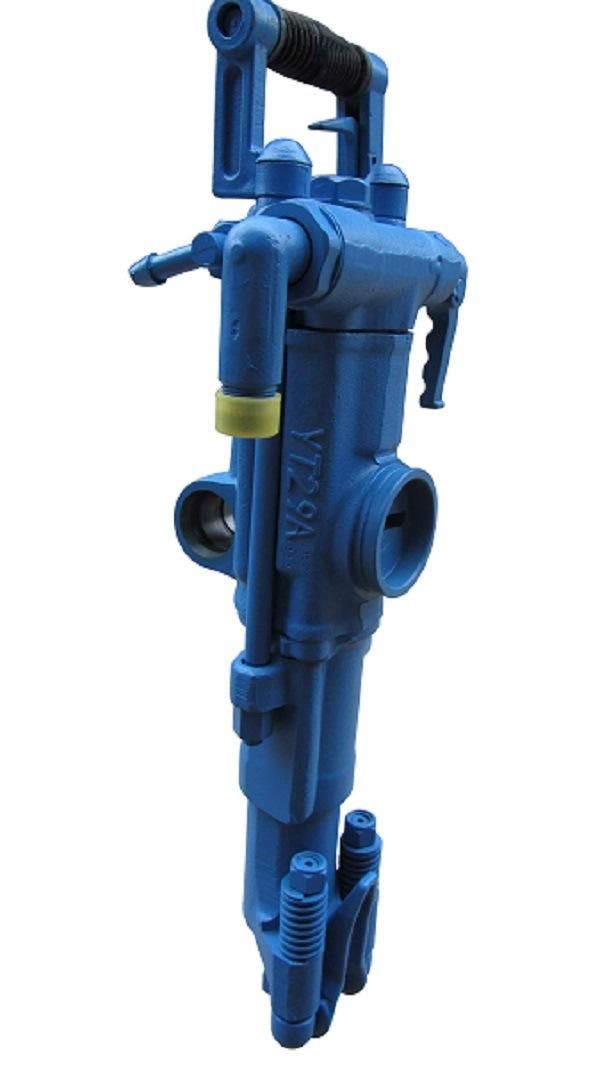

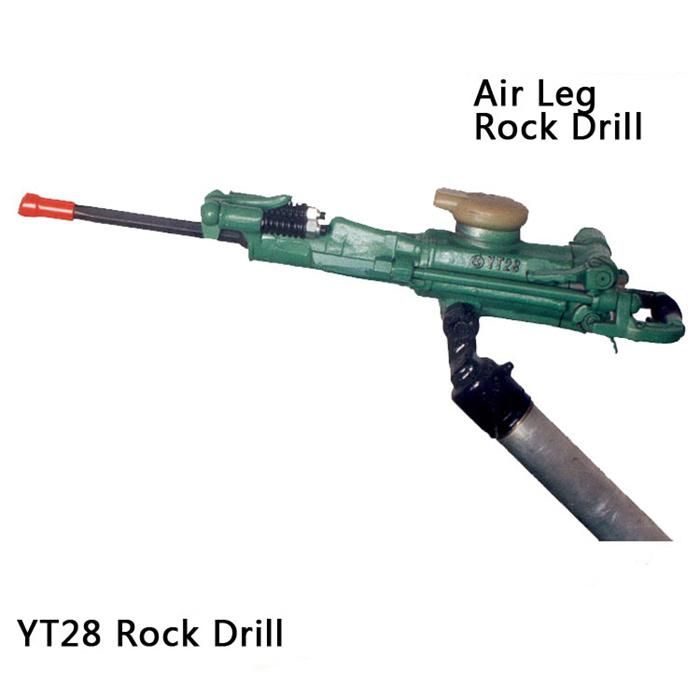

Model	YT23	YT23D	YT24	YT27	YT28	YT29A	YSP45
Weight(kg)	24	24	24	26	26	26.5	1420
shank (mm)	628	668	678	668	661	659
cylinder dia (mm)	76	70	70	80	80	82	95
pistion stroke (mm)	60	70	70	60	60	60	47
working pressure(Mpa)	0.4-0.5	0.4-0.5	0.4	0.4-0.5	0.4	0.4-0.5	0.63
impact energy (J)	≥65	≥45		≥70		≥70	≥73.5
impact frequency(Hz)	≥33	≥28	≥25	≥36	≥28	≥37	≥46
air consumption (L/s)	≤80	≤38	55	≤85		≤65	≤113.3
working water pressure(Mpa)	0.2-0.3	0.2-0.3	≤2.7	0.2-0.3		0.2-0.3	0.3
air pipe inner dia (mm)	25	19	19	25	25	25	25
water pipe inner dia(mm)	13	13	13	13	13	13	13
rock drill hole dia(mm)	34-42	34-42	34-42	34-42	34-42	34-45	34-42
rock drill hole depth (m)	5	5	5	5	5	5	6
shank size(mm)	22*108	22*108	22*108	22*108	22*108	22*108	22*108
