• Model NO.：ZDQJ-450,600,800
• Automation：Automatic
• Cutting Ability：High Speed
• Control：PLC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Transport Package：Load in a 20 Feet Container
• Specification：6000*4800*3100mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：8464109000
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. ZDQJ-450/600/800 Automation Automatic Cutting Ability High Speed Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Transport Package Load in a 20 Feet Container Specification 6000*4800*3100mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 8464109000 Production Capacity 1000 Sets/Year

Product Description

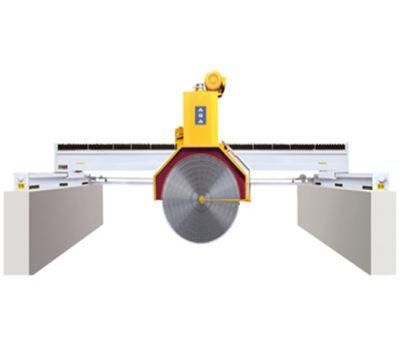

Hot Sale Xianda Granite and Marble Bridge Stone Saw Cutting Machine
ZDQJ-450/600/800


Product Description

ZDQJ-400-600-700, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control left-right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported high-quality materials. Thus the whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy-operation, specially high value granite and  big size marble.

Technical Parameter

Parameter	Unit	ZDQJ-450	ZDQJ-600	ZDQJ-700
Blade diameter	mm	300-450	350-600	350-700
Max processing size	mm	3200*2000*120	3200*2000*180	3200*2000*230
Dimension of worktable	mm	3200*2000	3200*2000	3200*2000
Worktable tilting degree	°	0-85°	0-85°	0-85°
Worktable rotation degree	°	0-90°/0-360°	0-90°/0-360°	0-90°/0-360°
Main motor	kw	15	18.5	18.5
Gross motor	kw	21	24	24
Water consumption	m³/h	4	4	4
Outline dimension	mm	6000*4800*2900	6000*4800*3100	6000*4800*3200
Gross weight	kg	5250	5500	5750

Xianda Machinery

Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

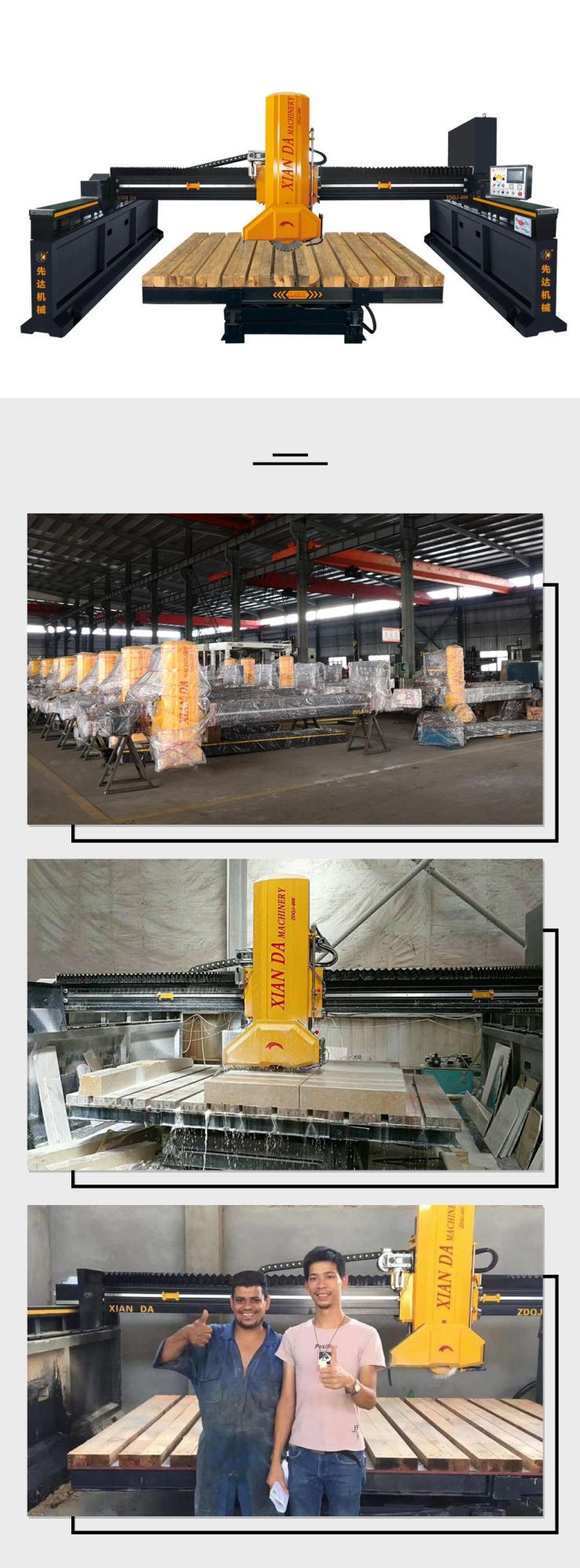

Exhibition

FAQ

Q:How to place order to your company?
A: 1.Inquiry-Professional quotation
    2.Confirm the price,lead time, logo, payment term etc.
    3.Xianda sales send the Proforma Invoice with seal.
    4.Customers make the payment as a deposit and send us Bank receipt
    5.Sales confirm the receipt of down payment After approval, we will arrange the production & inform the       estimated time

Q:How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery

Q:Are you Manufacture Factory?
A: Yes that we are the stone machinery factory for over 30 years

Q:What about the warranty time of the machine?
A:We provide one year for parts warranty service

Q:What can this machine be used to?
A:This machine is designed to cut lines on stone like columns lines ,big arc shaped slabs and special stone shapes.
