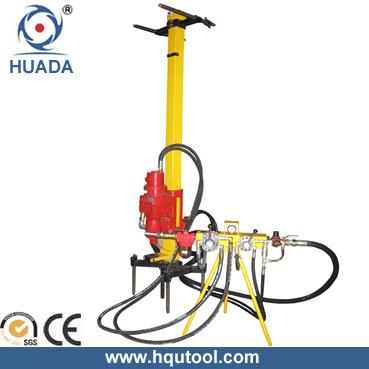

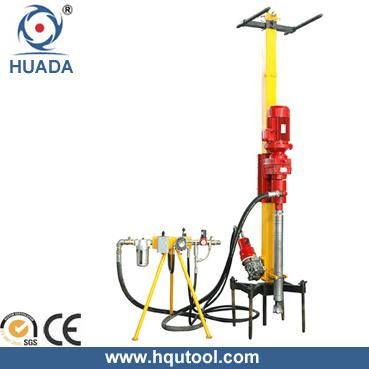

Multifunctional Drill Machine (D-T-H)
Huada Superabrasive Tool Technology Co., Ltd.- Automation：Semi-automatic
- Layout：Horizontal
- Control：Artificial
- Application：Mineral Industry, Stone Industry
- Certification：CE, SGS
- Max Drilling Depth：40m
Base Info
- Model NO.：QZ65-90B,QDZ65-90B
- Transport Package：Wooden Case
- Specification：CE, SGS
- Trademark：HUADA
- Origin：Quanzhou, China
- Production Capacity：500 Sets Per Year
Description
Basic Info.
Model NO. QZ65-90B/QDZ65-90B Transport Package Wooden Case Specification CE, SGS Trademark HUADA Origin Quanzhou, China Production Capacity 500 Sets Per YearProduct Description
Huada, set up by Huaqiao University, specializes in drilling machine for 13 years, strictly according CE and SGS standard. Our market share is No.1 in China. The items are widely used in Brazil, South Africa, Indonesia, China, etc.They are mainly used for primary and secondary drilling in all stone quarries. Available for vertical, horizontal and slant drilling. It should be used for drilling the hole before using wire saw machine.
| (item)/ (Model) | QZ65-90B Multifunctional Pneumatic Drille r | QDZ65-90B Multifunctional Pneumatic /Electric Drille r |
| Max. Depth of Drilling | 35-40m | 35-40m |
| diameter of drilling | Φ65-90mm | Φ65-90mm |
| Drilling speed | 6~8m/h | 6~8m/h |
| minimum air pressure | 0.5-0.7MPa | 0.5-0.7MPa |
| total compressed air consumption | 12-14m³/min | 7-9m³/min |
| the hole hammer | Φ65-90 | Φ65-90 |
| track travel | 1m | 1m |
| advance device | pneumaticmotor reducer,chain | pneumatic reducer,chain |
| the pneumatic rotation head | pneumatic motor,reducer | motor,reducer |
| drilling direction | any direction | any direction |
| adjust height of the down jack | 220mm | 220mm |
| pneumatic control panel | remote control, manual change direction | remote control manual change direction |
| Total weight | 400Kg | 400Kg |
