• Model NO.：PE
• Finished Surface：Outer Surface Process
• Certification：ISO
• Condition：New
• Color：Red
• Model Type：PE Series
• Stone Material：Granite, Marble, Limestone, Basalt etc
• Motor Power：5.5-160 Kw
• Weight：0.6 - 98 T
• Max Feeding Size：125 - 1020 mm
• Finished Stone：Cobble Stone
• Transport Package：Plywood Case
• Specification：720*660*850
• Trademark：BESTLINK
• Origin：Xiamen, China
• HS Code：84742090
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. PE Finished Surface Outer Surface Process Certification ISO Condition New Color Red Model Type PE Series Stone Material Granite, Marble, Limestone, Basalt etc Motor Power 5.5-160 Kw Weight 0.6 - 98 T Max Feeding Size 125 - 1020 mm Finished Stone Cobble Stone Transport Package Plywood Case Specification 720*660*850 Trademark BESTLINK Origin Xiamen, China HS Code 84742090 Production Capacity 100 Sets/Month

Product Description

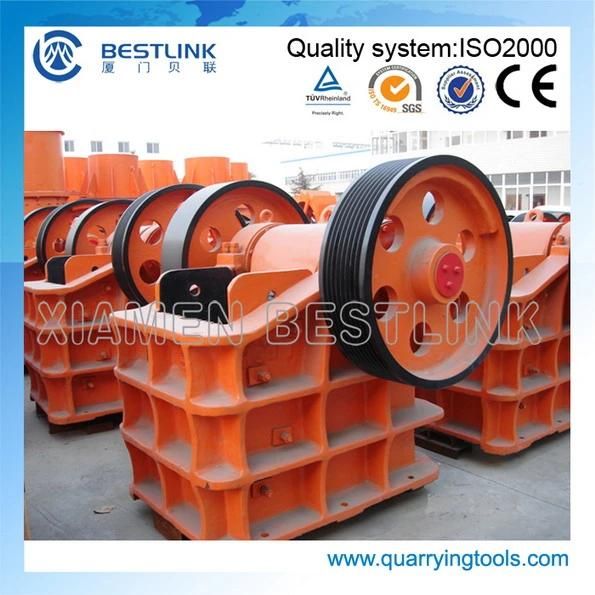

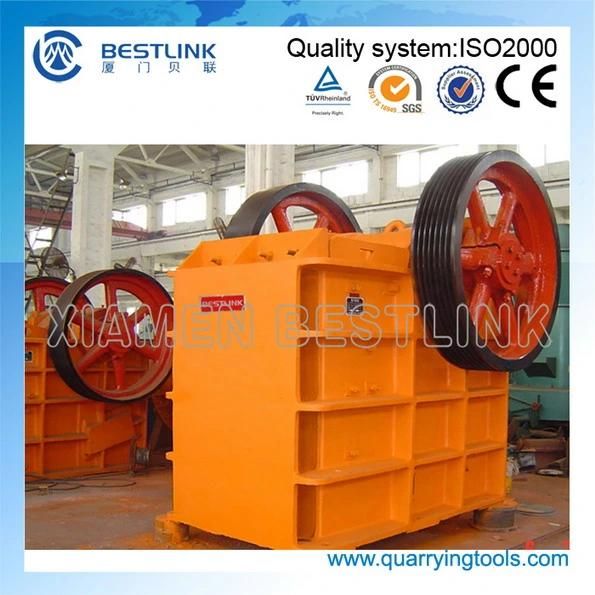

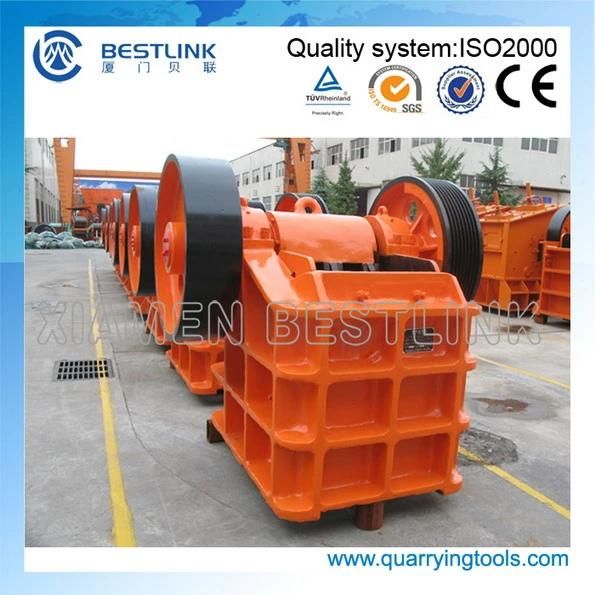

Hard Granite Marble Jaw Crushing Machine for Cobble Stone

1. Application:
Bestlink Jaw crusher is a trusted and reliable brand for its high quality and good manufacturing. Jaw Crusher is widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, buidling stone material, construction materials, marble, etc.

The pressure resistance strength is under 245Mpa, that is suitable for primary crush.
Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost.

This machine is suitable for mines, building materials, highway, railway, water conservancy and chemical industry, etc.

2. Futures:
1). Firm structure, stable performance, large capacity, even producing granularity.
2). Little noise and dust.
3). Convenient maintenance and economical running expense.
4). High ratio of crushing, homogeneous final product size.
5). The deep crushing cavity increases the feeding capacity and output capacity;
6). Lubricate system is safe and reliable, easy to change the spare parts;
7). Simple structure, easy maintenance, consumption cost is lower;
8). Energy-saving, for one set saving about 15%-30%;
9). With the increase of production, our jaw crusher can greatly reduce the operating costs.
10). Adjusting the discharge opening through gasket, more convenient, it can meet different customers' requirenment
11). The large feed opening and force-feeding action from the inward and downward eccentric movement of the swing jaw mean that our jaw crusher can increase the capacity

3. Specification:

Model	Feed Opening (mm)	Max. Feed Size (mm)	Capacity (t/h)	Power Consumption (kw)	Discharge Opening (mm)	Overall Dimension (L x W x H) (mm)
PE-150×250	150×250	125	1-5	5.5	10-40	758×758×794
PE-250×400	250×400	210	5-20	15	20-60	1500×1400×900
PE-400×600	400×600	340	16-65	30	40-100	1700×1800×1600
PE-500×750	500×750	425	50-100	55	50-100	1890×1940×1870
PE-600×900	600×900	500	50-120	55	65-160	2395×1843×2230
PE-750 ×1060	750×1060	630	52-180	110	80-140	2775×2426×2840
PE-800×1060	800×1060	640	136-230	110	100-200	2500×2472×2810
PE-900×1200	900×1200	750	140-260	110	95-165	3400×3200×3500
PE-1000×1200	1000×1200	850	315-342	110	195-265	3335×3182×3430
PE-1200×1500	1200×1500	1020	400-800	160	150-300	4200×3732×4620
PE-250 ×750	250×750	210	15-30	22	15-70	1400×1300×1350
PE-250×1000	250×1000	210	16-52	30	25-60	1600×2000×1500
PE-250 ×1200	250×1200	210	20-60	37	25-60	1900×2200×1500
PE-300×1300	300×1300	260	30-70	55	30-90	1800×2300×1700
