• Model NO.：KE600-1, KE750-1, KE760-1, KE860-1, KJ125-1
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：1-80tph

Basic Info.

Model NO. KE600-1, KE750-1, KE760-1, KE860-1, KJ125-1 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 1-80tph

Product Description

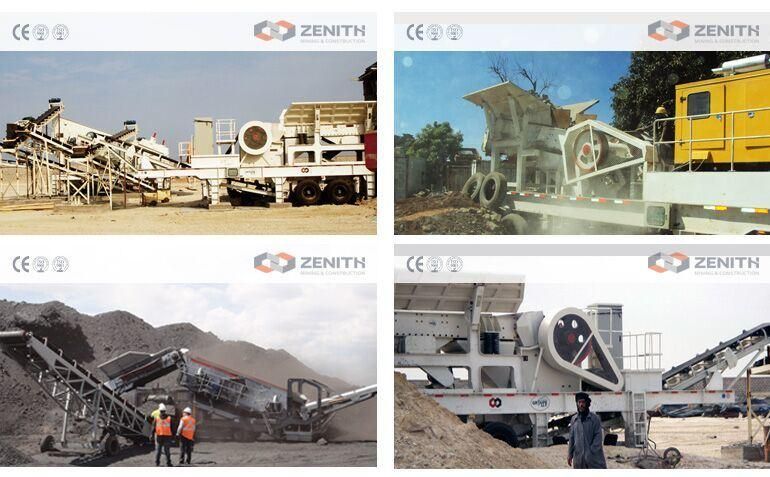

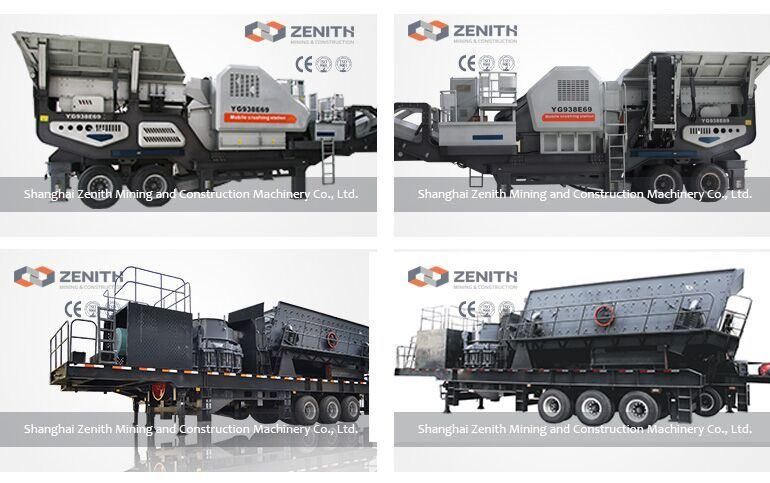

12% Discount! 2019 hot sale mobile jaw crusher

mobile jaw crusher intorduction:

mobile jaw crusher provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.

mobile jaw crusher features:

1. Incorporated design
2. Truck mounted
3. Quick road transportation
4. With support legs on truck, quick to set-up

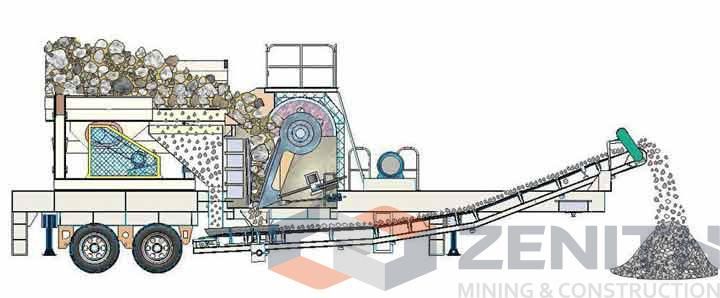

mobile jaw crusher working principle:

This series mobile jaw crusher incorporates all the crushing plants ,such as Impact crusher , Vibrating Feeder , Vibrating screen, belt conveyor , etc. As the mobile crusher supplier , Zenith has exported many crushing plants to the world. When you use the independent Mobile Crusher Plant , you will save the work to install the basic facilities in the site. This will greatly reduce cost of material and man-hour. So you can see , the Mobile Crusher Plant is reasonable and compact in arrangement of the equipment. The whole Mobile Crusher Plant is easy operated and features high flexibility and low transporting cost.

mobile jaw crusher parameters:


Parameter model	Transport length (mm)	Transport width (mm)	Transport height (mm)	Max. height (mm)	Max. width (mm)	Belt conveyor height (mm)	Total weight (ton)
Y3S1548F1010	11000	2500	4000	6000	2800	4000	42
Y3S1848F1210	12200	2800	4200	6500	3000	4000	46
Y3S1860F1214	12500	2800	4500	6500	3000	4200	51
Y3S2160F1315	13500	3000	4800	6800	3200	4200	57

Configuration:

Parameter model	Screen model	Impact crusher model	Belt conveyor model	capacity (t/h)	Power(kw)
Y3S1548F1010	3YK1548	PF1010	B500X7M	50-250	70-90
Y3S1848F1210	3YK1848	PF1210	B650X7M	70-300	128.5-150.5
Y3S1860F1214	3YK1860	PF1214	B650X8M	90-400	154-190
Y3S2160F1315	3YK2160	PF1315	B800X8M	120-450	210-297
