Gang Saw Block Cutter Stone Cutting Machine for Marble
FUJIAN NAN'AN HENGLONG MACHINERY CO.,LTD.- Type：CNC Cutting Machine
- Usage：Marble
- Application：Machinery & Hardware, Construction, Mineral Industry, Stone Industry
- Source Voltage：380V
- Cutting Ability：High Speed
- Certification：SONCAP, ISO, CE
Base Info

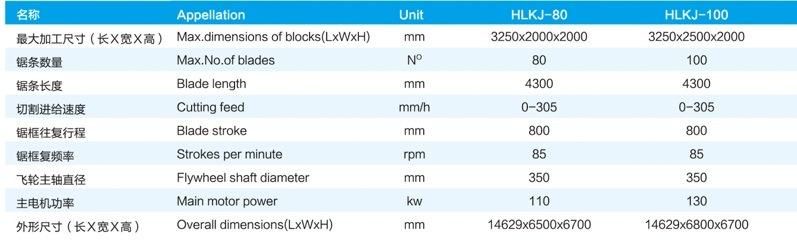

- Model NO.：HLKJ-80,100
- Max.No.of Blades：80
- Blade Length：4300mm
- Cutting Feed：0-305mm,H
- Blade Stroke：800mm
- Strokes Per Minute：85rpm
- Flywheel Shaft Diameter：350mm
- Main Motor Power：110kw
- Max.Dimensions of Blocks：3250*2000*2000mm
- Transport Package：Standard Export Packaging
- Specification：14629*6500*6700mm
- HS Code：84641090
- Production Capacity：30~50sets ,Month
Description
Basic Info.
Model NO. HLKJ-80/100 Max.No.of Blades 80 Blade Length 4300mm Cutting Feed 0-305mm/H Blade Stroke 800mm Strokes Per Minute 85rpm Flywheel Shaft Diameter 350mm Main Motor Power 110kw Max.Dimensions of Blocks 3250*2000*2000mm Transport Package Standard Export Packaging Specification 14629*6500*6700mm HS Code 84641090 Production Capacity 30~50sets /MonthProduct Description
Product Description

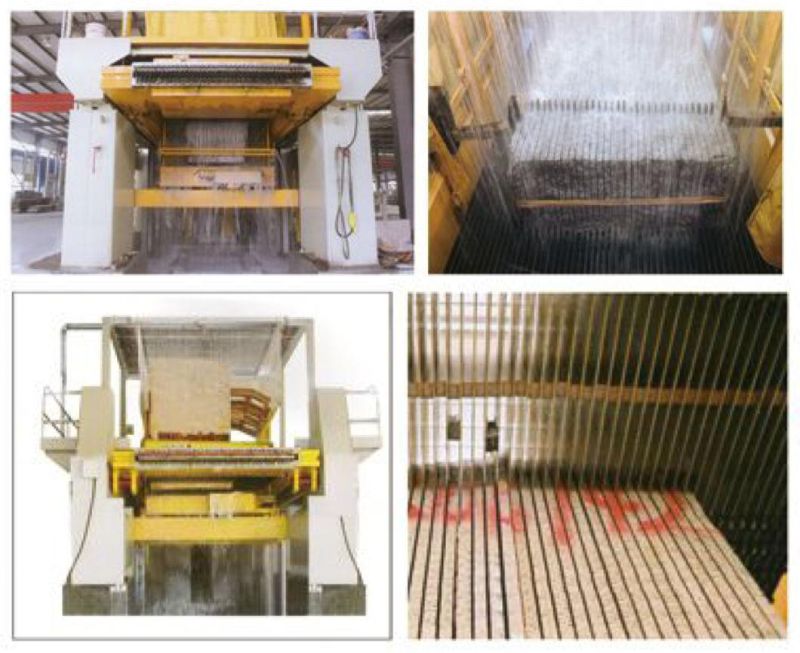

The diamond frame data series is the result of the latest design application in the research and development of marble cutting machinery technology. HLKJ80/100 is a machine that USES long strokes to cut raw marble. Longer sawing frame strokes in the process provide unprecedented cutting output. And ensure the stability of cutting.
From the beginning of development to the closing process of manufacturing, through careful study of mechanical properties and habits and cooperation with the world's best diamond tool manufacturers, this machine can not only guarantee the world's top performance in each different stone, but also have the perfect reliability of the mechanical structure and a long
service life.
More information please contact us
