• Model NO.：PE series (PE150*250, PE250*400, etc)
• Finished Surface：Cut Off Tool
• Certification：CE, ISO, ISO,CE
• Condition：New
• Color：Yellow
• Warranty：One Year
• Motor Type：AC
• Crushing Ability：350MPa
• Transport Package：Plywood Box or Naked Packing
• Specification：as per machine model
• Trademark：BESTLINK
• Origin：Fujian, China
• HS Code：84749000
• Production Capacity：2000sets Per Month

Basic Info.

Model NO. PE series (PE150*250, PE250*400, etc) Finished Surface Cut Off Tool Certification CE, ISO, ISO,CE Condition New Color Yellow Warranty One Year Motor Type AC Crushing Ability 350MPa Transport Package Plywood Box or Naked Packing Specification as per machine model Trademark BESTLINK Origin Fujian, China HS Code 84749000 Production Capacity 2000sets Per Month

Product Description

Jaw Crusher:
1. Large crushing ratio
2. Even granularity
3. Simple structure&easy maintenance
4. Low cost

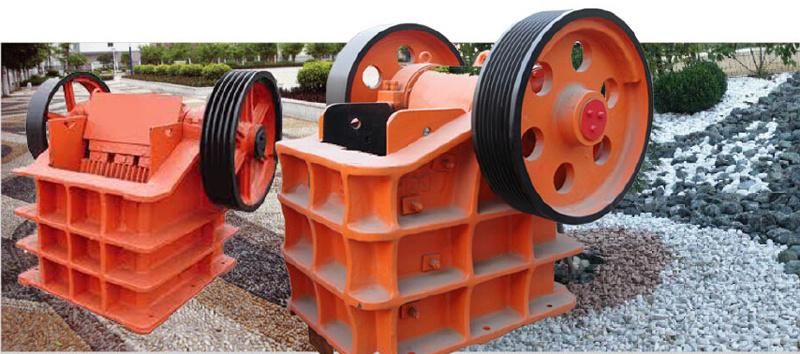

Stone Crusher-jaw crusher



Advantages:

1, large crushing ratio, uniform particle size.
2, easy to replace parts, maintenance, small amount of work.
3, simple structure, reliable operation and low cost.
4, low noise, less dust.
5, nesting population adjustment range, can meet different user requirements;

Product Description:

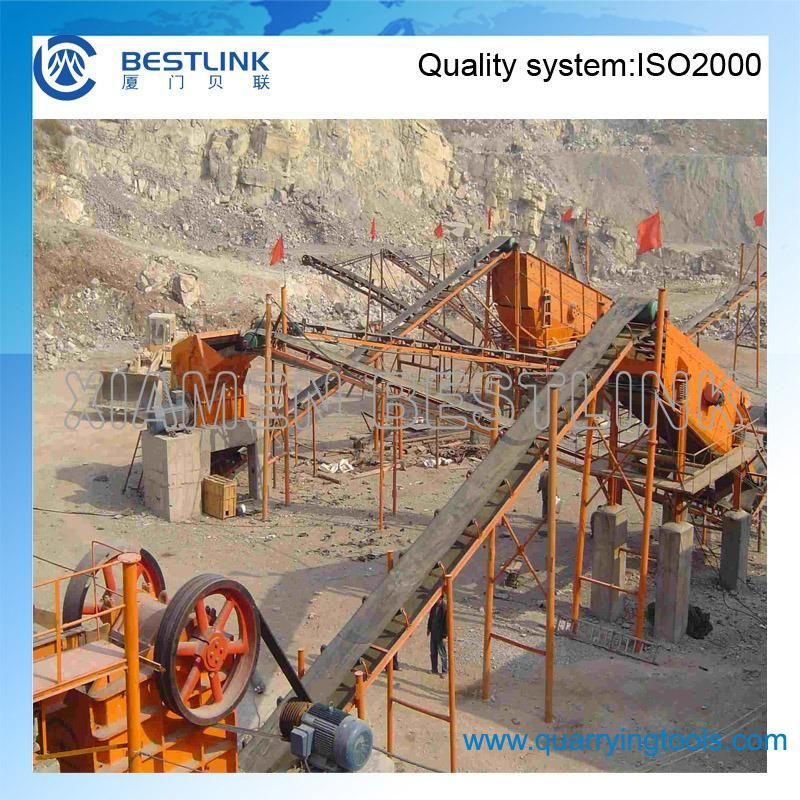

PE Jaw Crusher is our company set the successful experience in similar products at home and abroad, for mining, smelting, building material, highway, railway, water conservancy, road construction and other industrial sectors quarries and rock crusher specially designed. The product specification is complete, the feed size from 80-850 mm, PE-type jaw crusher crushing materials of compressive strength of up to 300Mpa, is a complete set of broken lines in the first choice of primary crushing equipment.

Working principle of Stone Crusher:

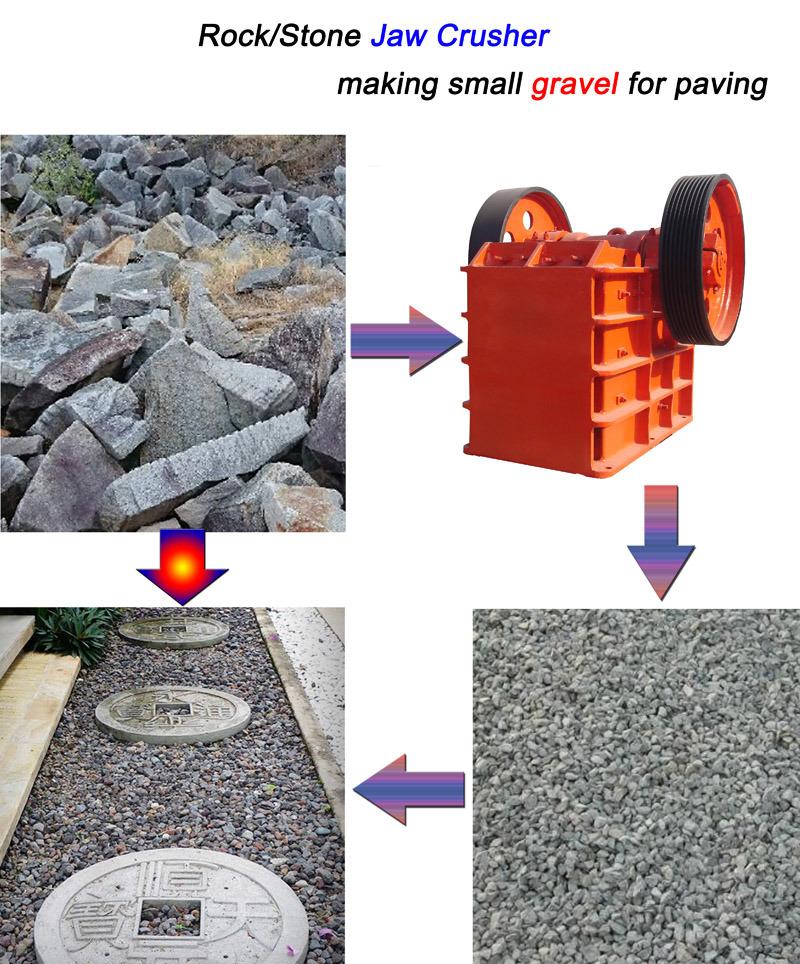

The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves. So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.

Type	Feed open (mm)	Max.feeding size(mm)	Output ( mm )	Capacity (t/h)	Speed (r/min)	Motor  (kw)	Weight (t)	Overall dimensions ( mm)
PE150×250	150×250	120	10-40	1-3	250	5.5	0.6	720×660×850
PE250×400	250×400	210	20-60	5-20	300	15	2.8	1300×1090×1270
PE400×600	400×600	340	40-100	16-60	275	30	7	1730×1730×1630
PE500×750	500×750	425	50-100	4-110	275	55	12	1980×2080×1870
PE600 × 900	600×900	500	75-160	50-180	250	55-75	17	2190×2206×2300
PE750×1060	750×1060	630	80-140	115-330	250	110	29	2660×2430×2800
PE900×1200	900×1200	750	95-165	220-450	200	132	52	3380×2870×3330
PE1200×1500	1200×1500	1020	150-300	400-800	180	160	100.9	4200×3300×3500
PEX250×1000	250×1000	210	25-60	16-52	330	30	7	1560×1950×1390
PEX250×1200	250×1200	210	25-60	20-61	330	37	8.5	2140×1660×1500
PEX300×1300	300×1300	250	20-90	16-105	300	55	11	2720×1950×160
