Stone Processing Machinery

Home > Product > Stone Cutting Machine

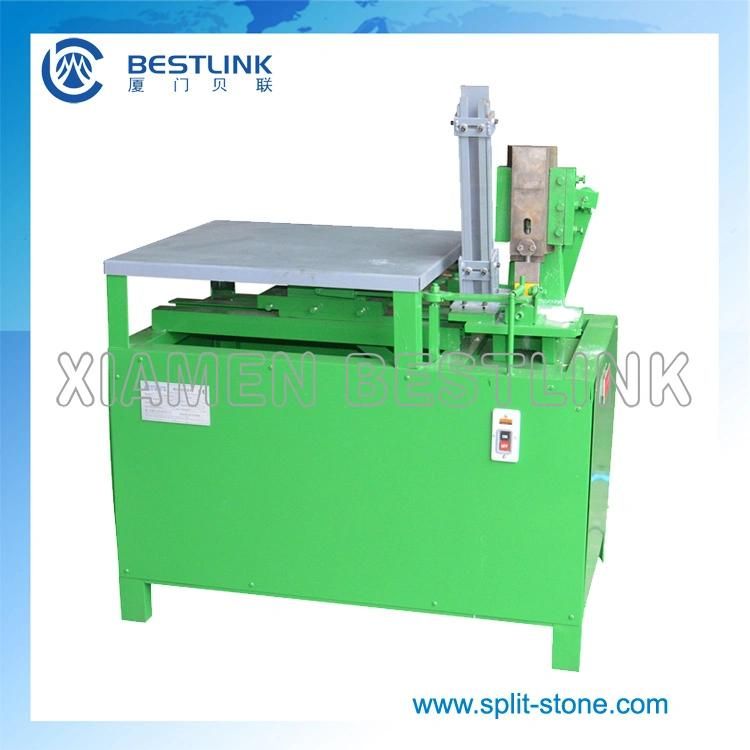

Hydraulic Mosaic Splitting Machine for Wall Tiles

Xiamen Bestlink Factory Co., Ltd.
  • Type：Hydraulic Cutting Machine
  • Usage：Granite, Marble
  • Application：Machinery & Hardware, Construction, Mineral Industry
  • Source Voltage：380V
  • Automation：Semi-automatic
  • Cutting Ability：High Speed

Base Info

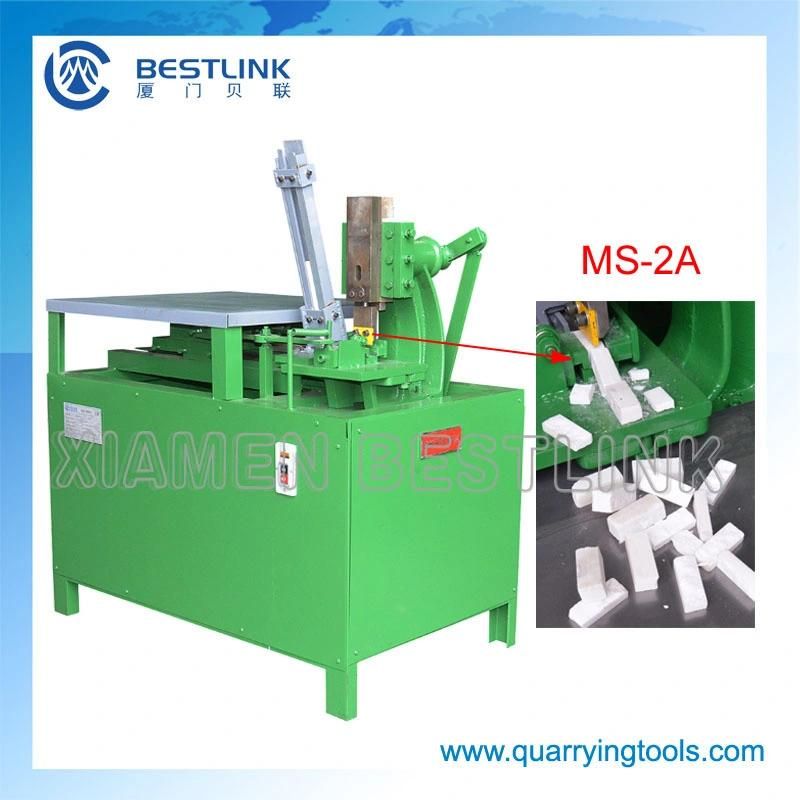

  • Model NO.：MS-2A
  • Control：Artificial
  • Certification：CE
  • Color：Green
  • Measure：500*600*1600 Mm
  • Splitting Force：12tons
  • Power Supply：3kw
  • Gross Weight：210kgs
  • Transport Package：Pallet
  • Specification：CE
  • Trademark：BESTLINK
  • Origin：China
  • HS Code：84741090
  • Production Capacity：10000sets Per Year

Description

Model NoMS-02 (manual)MS-02S (manual+stand)MS-02E (electric)MS-03 (manual)MS-12(hydraulic)MS-40(hydraulic)MS-2ASplitting Force2 tons2 tons2 tons2tons12 tons40 tons2 tonsMax Cutting Width240 mm240 mm240 mm120 mm240 mm300mm20mmMax Cutting height65 mm65 mm65 mm30 mm100 mm(40mm for granite)130mm (80mm for granite)10-20mmPower Supply////3.0 kw5.5kw0.37kwOil Tank////30 L60L/Overall Size500*400*700 mm1500*700*500mm 900*400*400mm630*430*600CM500*600*1600 mm700*800*1700mm1100*650*1200mmNet Weight70 kg 80kg65 kg70 kg210 kg350kg200kg
