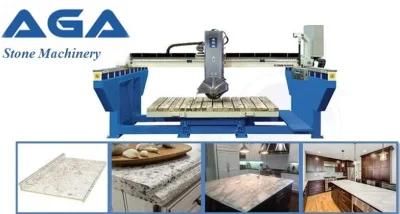

Top Quality Granite Quartz Marble Tile Bridge Cutting Machine for All Stone Countertop Vanity Top (XZQQ625A)
Xiamen Aga Import and Export Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：CNC Cutting Machine
- Usage：Granite, Marble
- Application：Stone Industry
- Source Voltage：380V
Base Info
- Model NO.：XZQQ625A
- Automation：Automatic
- Cutting Ability：High Speed
- Control：CNC
- Certification：ISO, CE
- Max. Cut Size (Lxw)：3200X2000 mm
- Max. Cut Thick：170 mm
- Table Tilting：0-85°
- Table Rotation：0-360°
- Blade Tilting：0-45°
- Max. Blade Size：625mm
- Spindle Motor：15 Kw
- Weight：7200kg
- Transport Package：Plastic Packing
- Specification：Dimention: 6x5x3 m
- Trademark：AGA
- Origin：Xiamen, Fujian, China
- HS Code：84641010
- Production Capacity：100sets,Month
Description

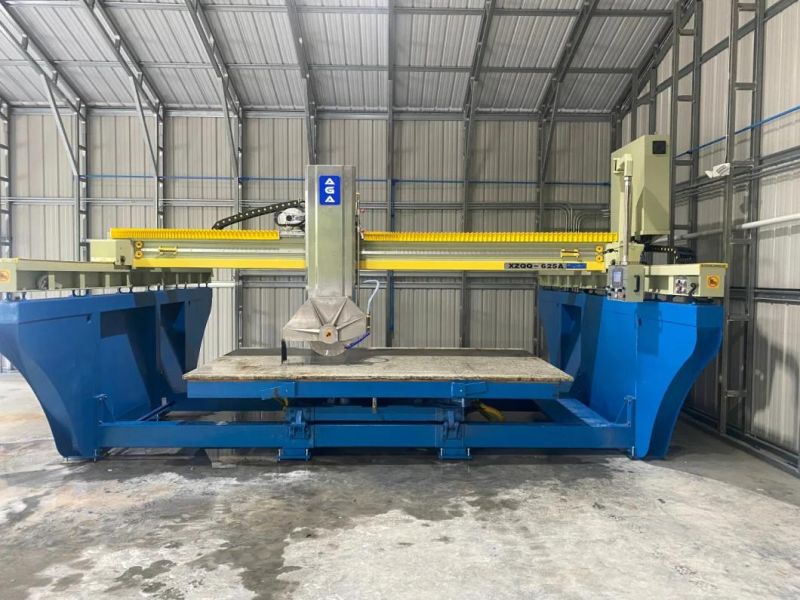

The mechanical body is made of very strong cast iron for stability and long lifetime. It also provides covered oil bath for the movements of bridge rails.

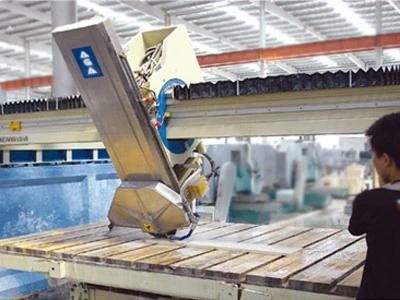

Blade travels on the bridge and it also provides automatic power tilting 0 - 45 degree for Miter cuts.
The blade motor is 15Kw( 20HP) , providing high power to work.
The max cutting size is 3200mmx2000mmx175mm (126"x78"x7").

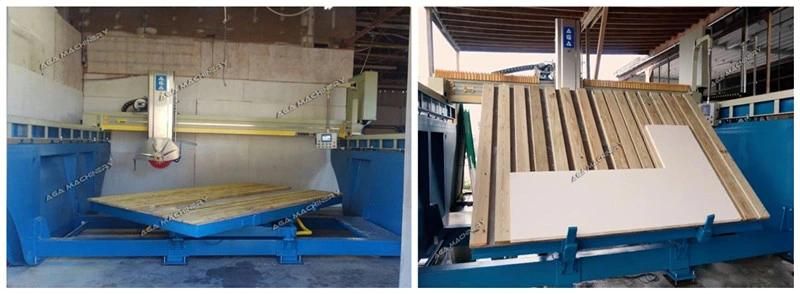

Table turns 0 - 360 degree automatically stopped any position and also tilts 0 - 85 degree Hydraulic for easy load of material.

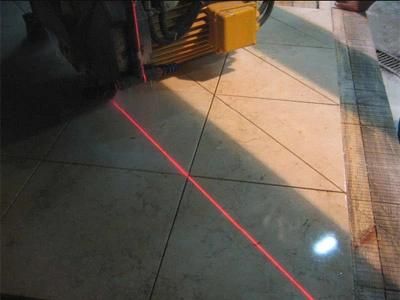

The laser guide and sensors gives high accuracy for the machining tolerance. - Also all the functions are operated on the control panel that make it very user friendly.Operation interface combined of human-computer interface and mechanical button, very easy operating, cutting head can be control by cross command switch by hand, real time data display on screen.Wireless remote provides ease control of the saw.
Spesification:
| Blade size | 400-625mm 16"-25" |
| Cut length | 3200mm 126" |
| Cut width | 2000mm 78" |
| Cut thick | 170mm 7" |
| Blade tilt | 0 - 45° |
| Table rotate | 0 - 360° |
| Table tilt | 0 - 85° |
| Spindle motor | 15kw 20HP |
| Size (L×W×H) | 6×5×3 m |
| Weight | 7200kg 16000lbs |
Packing
Keywords: Vanity top Cutter, Tile Cutter, Countertop Cutter, Block Cutter, Paves CutterRelated machine
Guarantee & After Sale Service
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.
FAQ:
1, How to pay to you ?
T/T in advance We accept 30% deposit , 70% before shipment
2, How long is the delivery time?
For standard machines, it would be 2-5 weeks; For non-standard machines and customized machines according to client s specific requirements, it would be 10 days longer.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

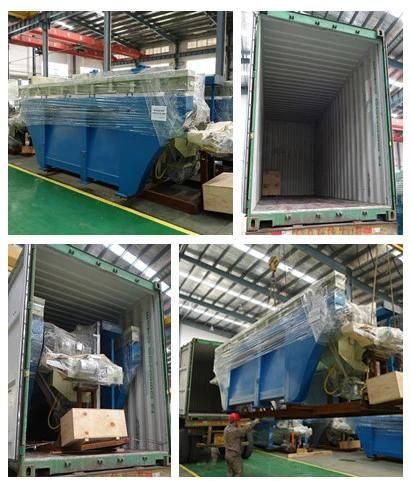

5, What is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
Save space as much as possible for container loading
About us:

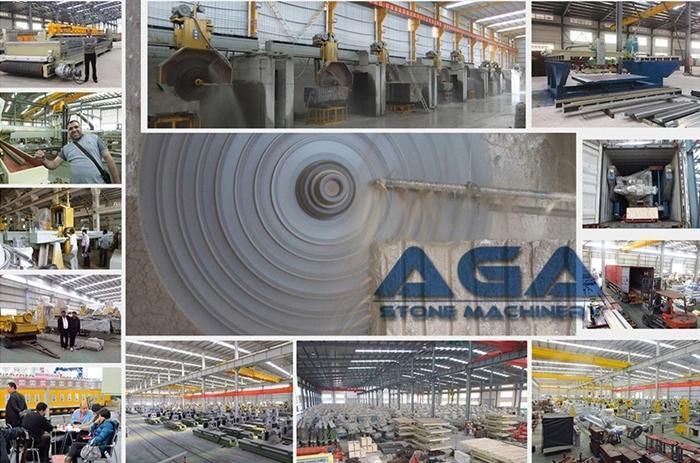

AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in USA, Canada, Europe, MID east, Egypt, India, etc.
