• Model NO.：2FT; 3FT; 4FT; 5FT; 7FT;
• Finished Surface：Thread Process
• Certification：CE, ISO
• Condition：New
• Color：Yellow
• Model No.：Crusher Parts
• Place of Origin：Ningbo, China (Mainland)
• Materials：High Manganese Steel
• Export Markets：Global
• Transport Package：Standard Container, in Bulk, Nude Packs
• Specification：1315
• Trademark：kilomega
• Origin：Ningbo, China
• HS Code：84742090
• Production Capacity：500 Tons,Month

Crusher Parts specificationnamemodelweight(kg)number of teeth(pcs)photo numbersize(MM)750*1060   Jaw Crusher  fixed Plate12508K3206-3b1680*1040*145movable  Plate14207K3206-20b1890*1040*145side plate up230*2 K3107-5 side plate dowm154*2 K3107-3 600*900    Jaw Crusher fixed Plate7359K3126-01-06D movable Plate74510K3126-02-20D side plate right and left235*2   side plate up135   side plate dowm86   500*750   Jaw Crusher fixed Plate4909K3204-1D1170*750/820*110movable Plate5208K3204-2D1330*750*130side plate right and left125 K3201-42 350*750   Jaw Crusher fixed Plate28016K31X05- movable Plate33515K31X05- side plate right and left65 K3105-7 8 150*750   Jaw Crusher fixed Plate10025K31X02 movable Plate11026K31X02 side plate right and left20   300*1300  Jaw Crusher fixed Plate44533K31X10-21305*800*90movable Plate45534K31X10-41300*860*90side plate right and left70*2   400*600   Jaw Crusher fixed Plate21512K3103-2 movable Plate21813K3103-3 side plate right and left80*2 K3103-11 13 150*250   Jaw Crusher fixed Plate228K3101-2 movable Plate249K3101-3 side plate right and left10   250*1200  Jaw Crusher fixed Plate38530K31X06-3 movable Plate40031K31X06-2 side plate right and left62 K31X06-10 11 250*1000   Jaw Crusher fixed Plate31025K31X04-4 movable Plate31526K31X04-3 side plate right and left62*2   250*750   Jaw Crusher fixed Plate20519K31X08-2 movable Plate21620K31X08-1 side plate right and left62 K31X08-7 8 250*500   Jaw Crusher fixed Plate11013K3128-5 movable Plate12014K3128-23 side plate right and left30   250*400   Jaw Crusher fixed Plate9011K3124-001-5635*400/460*70movable Plate11012K3124-002-13725*400*90side plate right and left38*2   fixed Plate 14 635*400/460*70movable Plate 15 725*400*901315Impact Crusher impact liner3840K3611.1-1 1214Impact Crusher impact liner28 K3602 liner01-1122   liner-1328    blow bar length1050170 K3603.04-13 blow bar length1610270 K3602.04-14 900*1200   Jaw Crusher fixed Plate1962 K3105.1 movable Plate1840 K3105.2 900*1200   Jaw Crusher fixed1675*2  1250*845*145fixed2430  1250*435*145movable1650*2  1180*860*145movable2400  1180*430*145side plate up230*2  1260*900/590*35side plate dowm95*2  950*582/236*35press block (2pcs/set)250*120022/set   400*60038/set   250*100020/set   600*90036/set

Blow bar
Wear components for crushing processes are subjected to severe impact and high abrasion, requiring components made from impact resistant and abrasion resistant alloys.
We increase crusher availability through:
1 .Increased wear life
2 .Less on-going wear part maintenance
3. Designs and tools for quicker change out
 High manganese blow barMaterial ZG120Mn13Cr2, ZG120Mn18Cr2, ZG120Mn13Cr2 tungsten titanium alloyControl Spectrometer chemical analysis and control while producingMolding Process Water-glass sand casting or lost form castingMelting facility Medium frequency electric furnaceHeat Treatment Anneal, quenching, temperingQuality Guarantee One year against manufacturing defeatTesting Hardness, flaw detector testCertificate ISO9001:2008;BUREAU VERITASOEM AcceptedSuit Filed Cement, mining, quarry, power and metallurgy companies

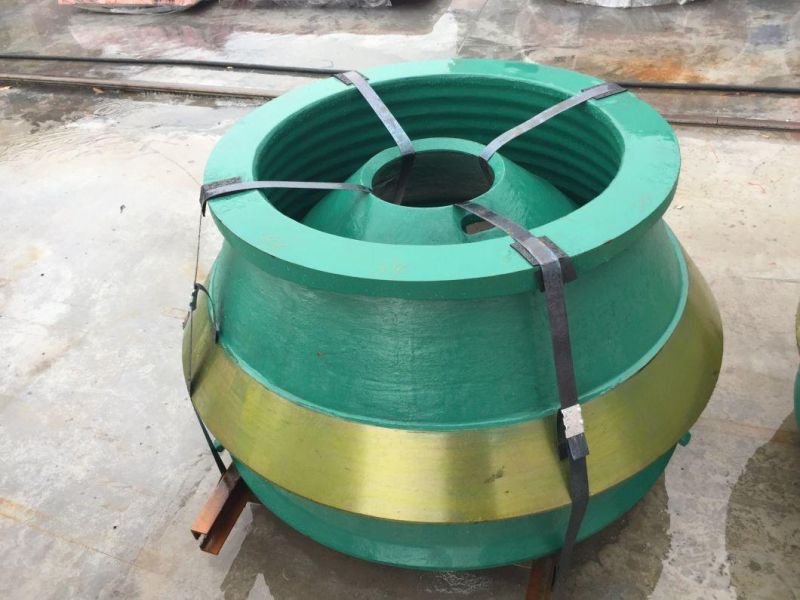

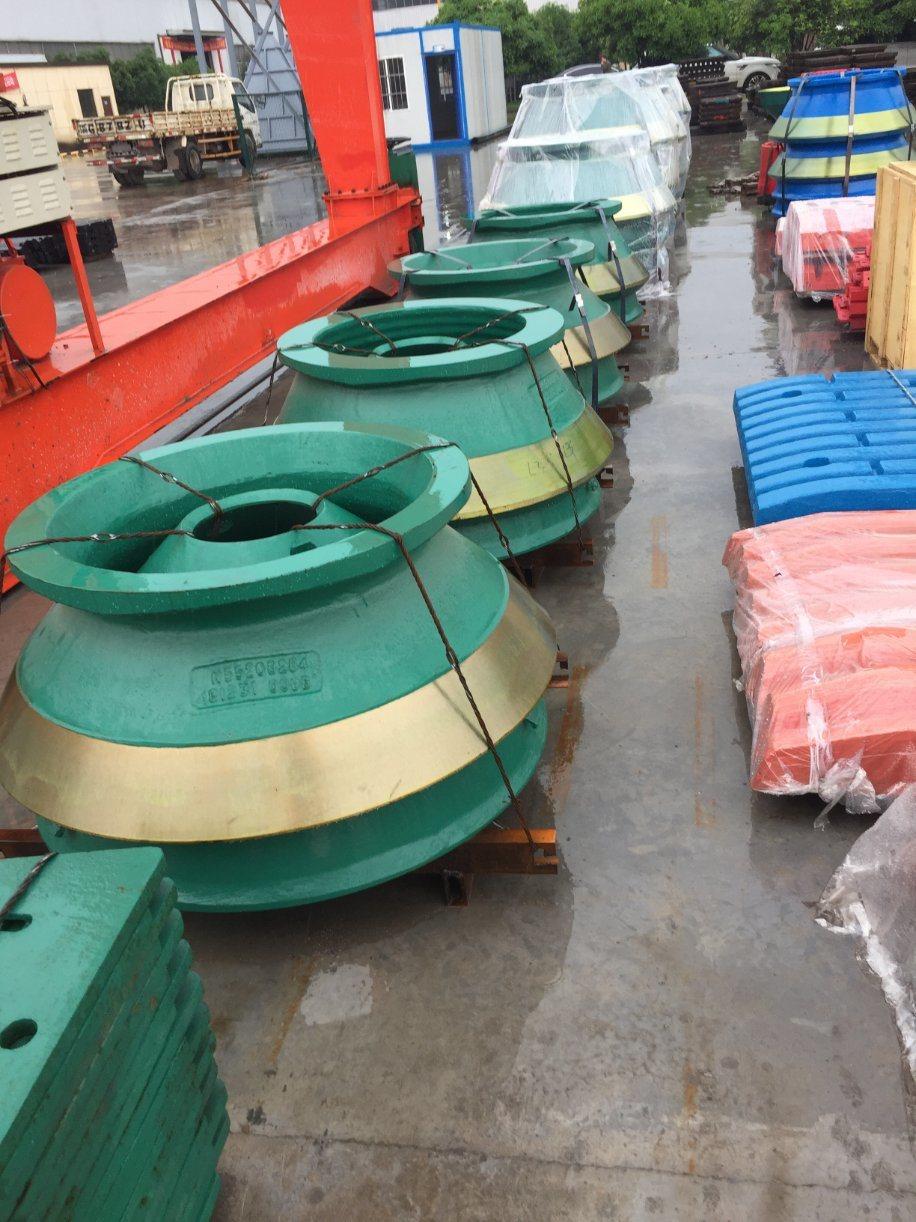

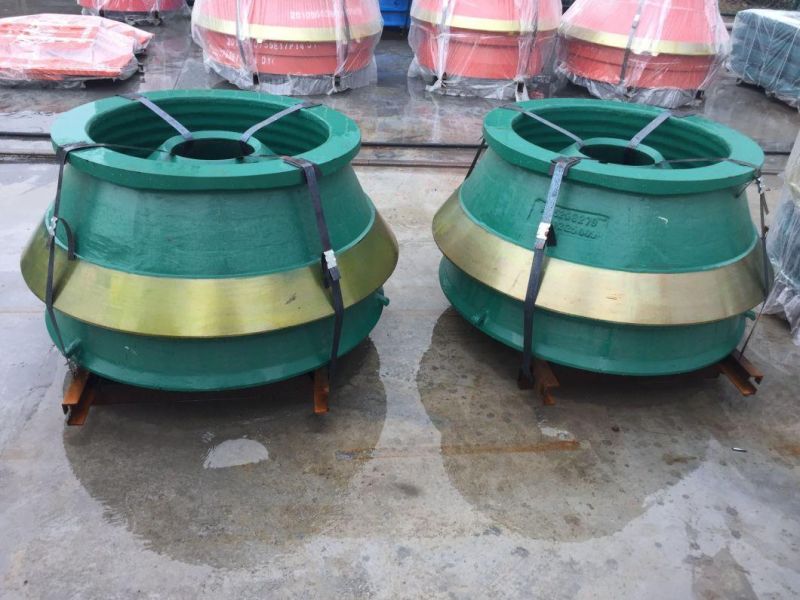

Mantle and Concave
1. Cone crusher parts main Material:
High manganese steel: Mn13%, Mn18%, Mn22%, Mn24%;
High chromium iron: Cr20, Cr24 up
Carbon steel

2.High Manganess Casting Material Chemical Composition

Material Code	C	Mn	Si	Cr	P	S
ZGMn13Cr2	C:0.9-1.3	Mn:11.0-14.0	Si:0.3-1.0	Cr:1.5-2.5	P:≤0.06	S:≤0.04
ZGMn18Cr2	C:1.1-1.5	Mn:16.5-19.0	Si:≤0.8	Cr:1.5-2.5	P:≤0.07	S:≤0.04
ZGMn22Cr2	C:1.1-1.4	Mn:20-24	Si:≤0.8	Cr:1.5-2.5	P:≤0.07	S:≤0.04

3.Full Range for Crusher Wear Liners & Parts:

	GP100,GP11,GP300,GP500,HP100,HP200,HP300,HP400,HP500,HP700,HP800
Metso	C63 C80 C100 C110 C125 C140 C160 C200
	GP100,GP300,GP500
Sandvik	H2800 H3800 H4800 H6800 H7800 H8800,S2800 S3800 S4800 S6800
	JM907 JM1107 JM1108 KM1206 JM1208 JM1211 JM1312 JM1511 JM1513
	CS420/S2800, CS430/S3800, CS440/S4800, CS660/S6800
Symons	2FT 3FT 4FT 4800 4¼ FT 5100 5½ FT 7FT Standard and Shorthead

We are supplying:
Jaw Crusher Jaw Plates
Jaw Crusher Toggle Plates
Jaw Crusher side plate
Impact Crusher Blow Bars
Impact Crusher impact Liners
Impact Crusher Curtains
Hammer Crusher Hammer Heads
Hammer Crusher Sieve Plates
Cone Crusher Concave
Cone Crusher Mental
Stone Crusher Liner Plates
Crusher Rotors
Crusher Screen mesh
Conveyor belt
rollers
