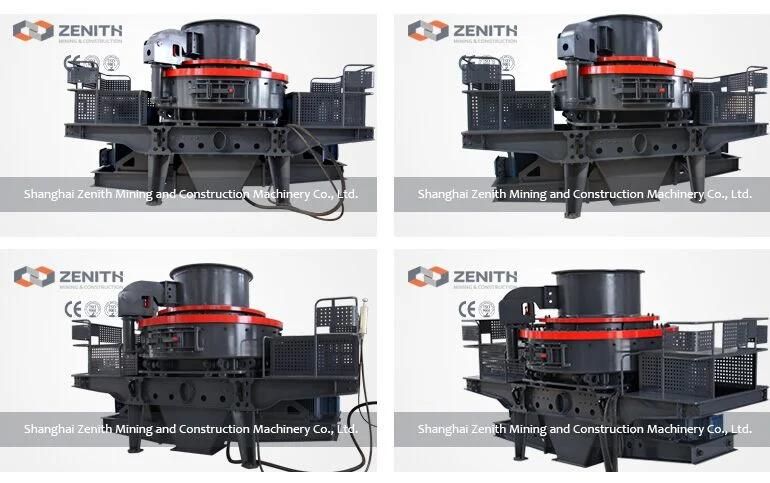

Vertical Shaft Impact Crusher (VSI series)

Shanghai Zenith Mineral Co., Ltd.
  • Type：Impact Crusher
  • Application：Construction, Mineral Industry, Stone Industry
  • Drive：Electric
  • Crushing Style：Grinding & Impact
  • Compressive Strength (For Crushing)：>300MPA
  • Crushing Degree：Intermediate Crusher

Base Info

  • Model NO.：B-7611,B-8518,B-9526,B-1140
  • Finished Surface：Hole Process
  • Certification：CE, ISO, GOST
  • Condition：New
  • Color：Iron Grey
  • Spare Parts Supply：for Whole Year
  • After-Sale Service：for Whole Using Life
  • Test&Installation：Engineer Assigned
  • Export Markets：Global
  • Transport Package：Container, Nude Packs, in Bulk
  • Specification：ISO9001: 2000
  • Trademark：Zenith
  • Origin：China
  • HS Code：8474209000
  • Production Capacity：30-500tph

Description

ModelB-7611B-8518B-9526B-1140Capacity (t/h)Cascade and central feeding120-180200-260300-380450-520Central feeding60-90100-130150-190225-260Max. Feeding dimension (mm)Soft material< 35< 40< 45< 50Hard material< 30< 35< 40< 45Rotation speed(r/min)1700-18901520-19601360-15101180-1310Double motor power (kw)110-150180-220264-320400-440Overall dimension (LxWxH)(mm)3700x2150 x21004140x2280 x24254560x2447 x27785000X2700 X3300Weight(t)7.810.31625.6Power380v; 50HzVibration SensorInspection range: 0.1-20mm/s continual adjustmentLubrication SystemDouble pump motor power2x0.31KWSafetyAltemative double pump oil supply; machine stops automatically without oil flow or oil pressure. water cooling, motor warm start in winter.Overall dimension (LxWxH)(mm)820x520x1270Gasoline tank heating power (kw)2
