• Model NO.：PE200*350mm,Pe400*600mm,PE500*750,PE600*900
• Finished Surface：Outer Surface Process
• Certification：ISO
• Condition：New
• Color：Red, Could Be Color as Clients′ Requests
• Usage：Crush Maximum, Medium and Minimum Stone
• Max Feeding Size (mm)：1020
• Pressure Resistance Strength：Under 245MPa
• Main Market：Europe,North and South America, Africa
• Competitive Price：Top Quality with Competitive Price.
• Key Word：Rock Jaw Crusher, Stone Jaw Crusher
• Size：Various Size for Different Types
• Export Experience：10 Years
• Ome：Ome Aviailable
• Transport Package：Plywood
• Specification：CE& SGS
• Trademark：Bestlink
• Origin：Fujian China
• HS Code：84742090
• Production Capacity：500sets,Month

Basic Info.

Model NO. PE200*350mm/Pe400*600mm/PE500*750/PE600*900 Finished Surface Outer Surface Process Certification ISO Condition New Color Red, Could Be Color as Clients′ Requests Usage Crush Maximum, Medium and Minimum Stone Max Feeding Size (mm) 1020 Pressure Resistance Strength Under 245MPa Main Market Europe,North and South America, Africa Competitive Price Top Quality with Competitive Price. Key Word Rock Jaw Crusher, Stone Jaw Crusher Size Various Size for Different Types Export Experience 10 Years Ome Ome Aviailable Transport Package Plywood Specification CE& SGS Trademark Bestlink Origin Fujian China HS Code 84742090 Production Capacity 500sets/Month

Product Description

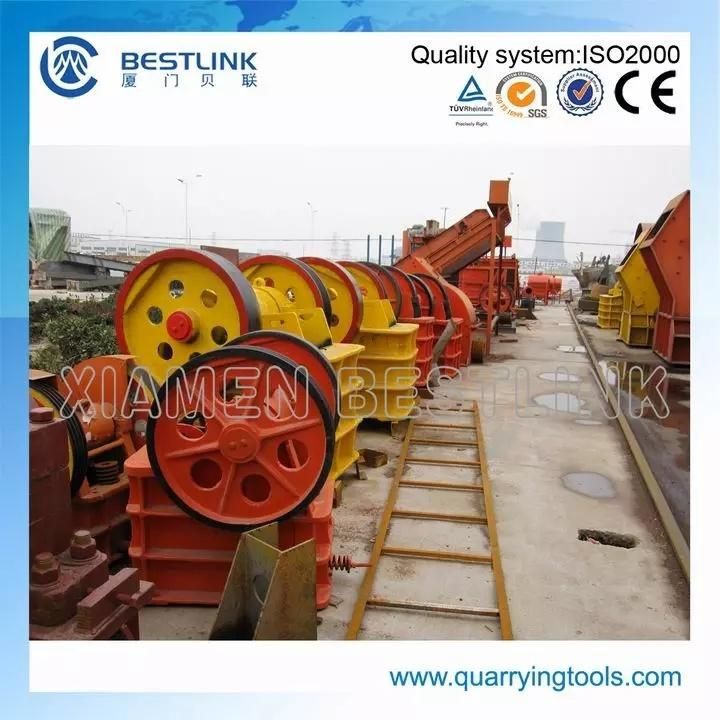

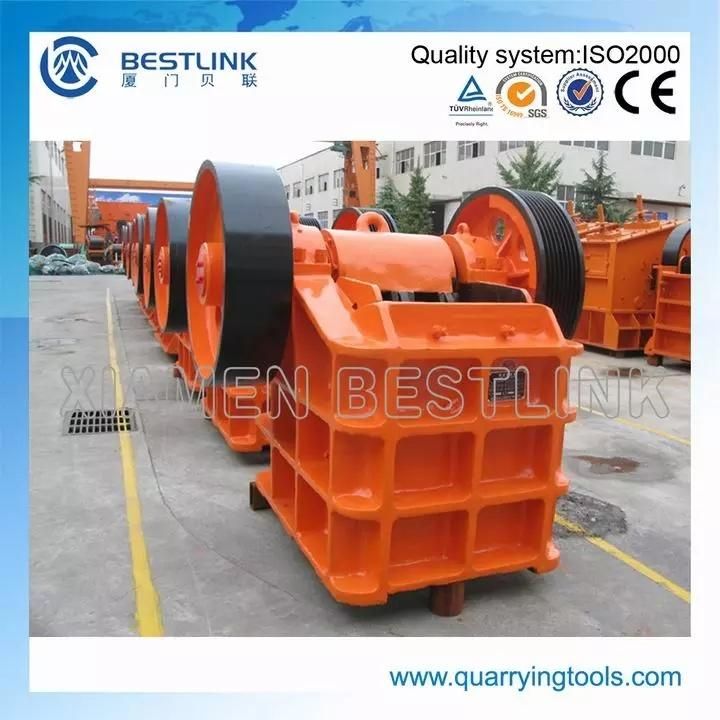

Application of Jaw Crusher:

Bestlink Jaw crusher is a trusted and reliable brand for its high quality and good manufacturing. Jaw Crusher which is widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 245Mpa, that is suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost.


Advantages:

1. Reliable quality can be guaranteed for many years without repair.
2. Good particle size, the crushing cavity and jaw plate tooth have been designed specially.
3. It is well suit for running in very poor working environment.
4. High crushing ratio, even particle size, low noise
5. Strong adaptability to materials, wide market
6. A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed

Structure of Jaw Crusher:

The structure of Jaw Crusher includes Main Frame, Main Axle, Roller Bearings, Eccentric Shaft, Jaw Plates, Side Plates, Toggle Mechanism, Fly Wheels and Springs.
Features of Jaw Crusher:
1. Jaw Crusher is of various types;
2. Jaw Crusher is suitable for crushing maximum, medium and minimum stones;
3. The operating principle of Jaw Crusher is easy to be operated;
4. The structure of Jaw Crusher is simple and it is easy to maintain;

Operating principle of Jaw crusher:

Jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.

Model	Feed opening  (mm)	Max.feeding size  (mm)	Adjusting range of discharge opening  (mm)	Processing capacity (t/h)	Rotation speed of eccentric shaft  (r/min)	Motor power  (kw)	Total weight (t)	Dimensions (L×W×H) (mm)
PE-150×250	150×250	125	10-40	1-3	250	5.5	0.8	720×660×850
PE-200×300	200×300	180	15-50	2-6	260	7.5	1.2	910×750×990
PE-200×350	200×350	180	18-70	3-10	260	11	1.5	1000×870×990
PE-250×400	250×400	210	20-60	5-20	300	15	2.8	1300×1090×1270
PE-400×600	400×600	340	40-100	16-60	275	30	7	1730×1730×1630
PE-500×750	500×750	425	50-100	40-110	275	55	12	1980×2080×1870
PE-600×750	600×750	500	150-200	80-240	275	55	15.8	2070×2000×1920
PE-600×900	600×900	500	65-160	50-180	250	55	17	2190×2206×2300
PE-750×1060	750×1060	630	80-140	110-320	250	110	29	2660×2430×2800
PE-800×1060	800×1060	640	130-190	130-330	250	110	29.8	2710×2430×2800
PE-830×1060	830×1060	650	160-220	150-336	250	110	30.7	2740×2430×2800
PE-870×1060	870×1060	660	200-260	190-336	250	110	31.5	2810×2430×2800
PE-900×1060	900×1060	685	230-290	230-390	250	110	33	2870×2420×2940
PE-900×1200	900×1200	750	95-165	220-450	200	110	52	3380×2870×3330
PE-1000×1200	1000×1200	850	195-265	315-500	200	110	55	3480×2876×3330
PE-1200×1500	1200×1500	1020	150-350	400-800	180	160-220	100.9	4200×3300×3500
PE-1500×1800	1500×1800	1200	220-350	500-1000	180	280-355	122	5160×3660×4248
PE-1600×2100	1600×2100	1500	300-400	1300-2200	160	350-380	150.6	6210×4013×4716
PEX-150×750	150×750	120	18-48	8-25	320	15	3.8	1200×1530×1060
PEX-250×750	250×750	210	25-60	13-35	330	30	5.5	1380×1750×1540
PEX-250×1000	250×1000	210	25-60	16-52	330	30	7	1560×1950×1390
PEX-250×1200	250×1200	210	25-60	20-61	330	37	9.7	2140×1660×1500
PEX-300×1300	300×1300	250	20-90	16-105	300	55	15.6	2720×1950×1600
