• Model NO.：HLSJ-3000
• Certification：SONCAP, ISO, CE
• Max Processing Size：3000*3000*1500mm
• Dimension of Worktable：2500*2000mm
• Main Motor：7.5kw
• Wire-Cutting Speed：25-30m,S
• Water Consumption：4 M3,H
• Gross Weight：6000kg
• Transport Package：Standard Export Packaging
• Specification：7500*6300*3800mm
• HS Code：84641090
• Production Capacity：20sets ,Month

Basic Info.

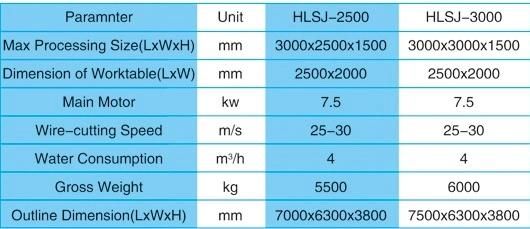

Model NO. HLSJ-3000 Certification SONCAP, ISO, CE Max Processing Size 3000*3000*1500mm Dimension of Worktable 2500*2000mm Main Motor 7.5kw Wire-Cutting Speed 25-30m/S Water Consumption 4 M3/H Gross Weight 6000kg Transport Package Standard Export Packaging Specification 7500*6300*3800mm HS Code 84641090 Production Capacity 20sets /Month

Product Description

Product Description

Wire saw machine (Rope saw), mono wire cutting machine, cutting column / cylinder slabs.

Marble Granite Diamond Wire Saw Stone Cutting Machine HLSJ-3000 adopts CNC systerm, Four-Axis linkage, which can process the stone block edge .
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel, guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.

More information please contact us
