• Model NO.：ZDBL-450,600,700
• Control：CNC
• Certification：ISO, CE
• Warranty：12 Months for Parts
• Transport Package：Solid Packaging with Plastic
• Specification：5850x3500x2600mm
• Trademark：Kingrhino
• Origin：Jinjiang, China
• HS Code：8464109000
• Production Capacity：100 Set,Month

Basic Info.

Model NO. ZDBL-450/600/700 Control CNC Certification ISO, CE Warranty 12 Months for Parts Transport Package Solid Packaging with Plastic Specification 5850x3500x2600mm Trademark Kingrhino Origin Jinjiang, China HS Code 8464109000 Production Capacity 100 Set/Month

Product Description

Equipment Features

This machine adopts PLC system and human-machine intelligent operation interface. The main engine uses double hydraulic lifting to combined with chrome guide sleeve, which makes the clearance very small and be more wearable and beautiful.

The design of multi-layer seal in the guide sleeve is waterproof, dustproof and leakproof. The sidebeam adopts high precision linear slide track. The left-right, forward- backward movement are controlled all by using encoder. With high precision megnetic railing ruler to detect, it can adjust the speed according to the stone materials, thus the accuracy is higher. It uses the dedicated motor of stone machinery.

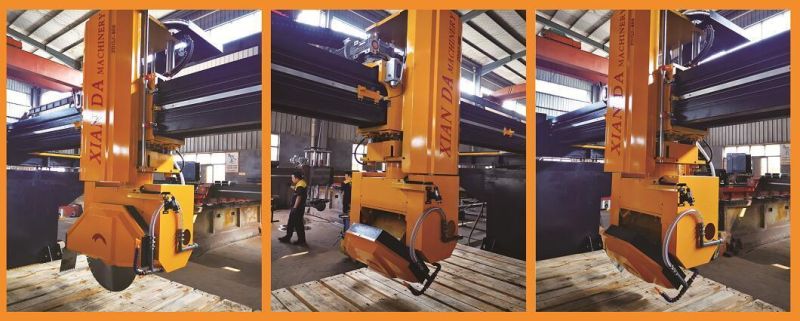

The cutting head can rotate from 0° to 90°, enhancing the processing speed. The blade can tilt from 0° to 45°, enlarging the range of application. It is an integrated machine with compacted structure, easy operation and efficient cutting precision, which is the first choice for processing and chamfering for high value granite, marble and quartz etc.

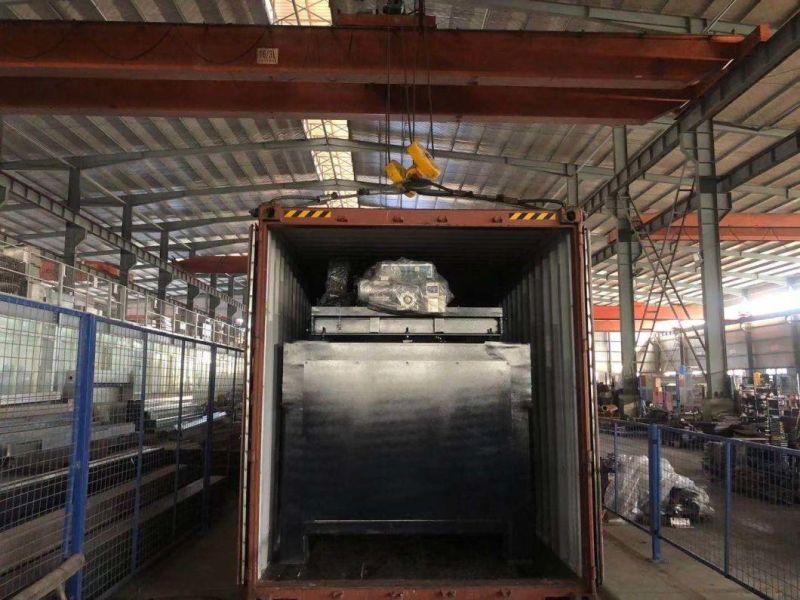

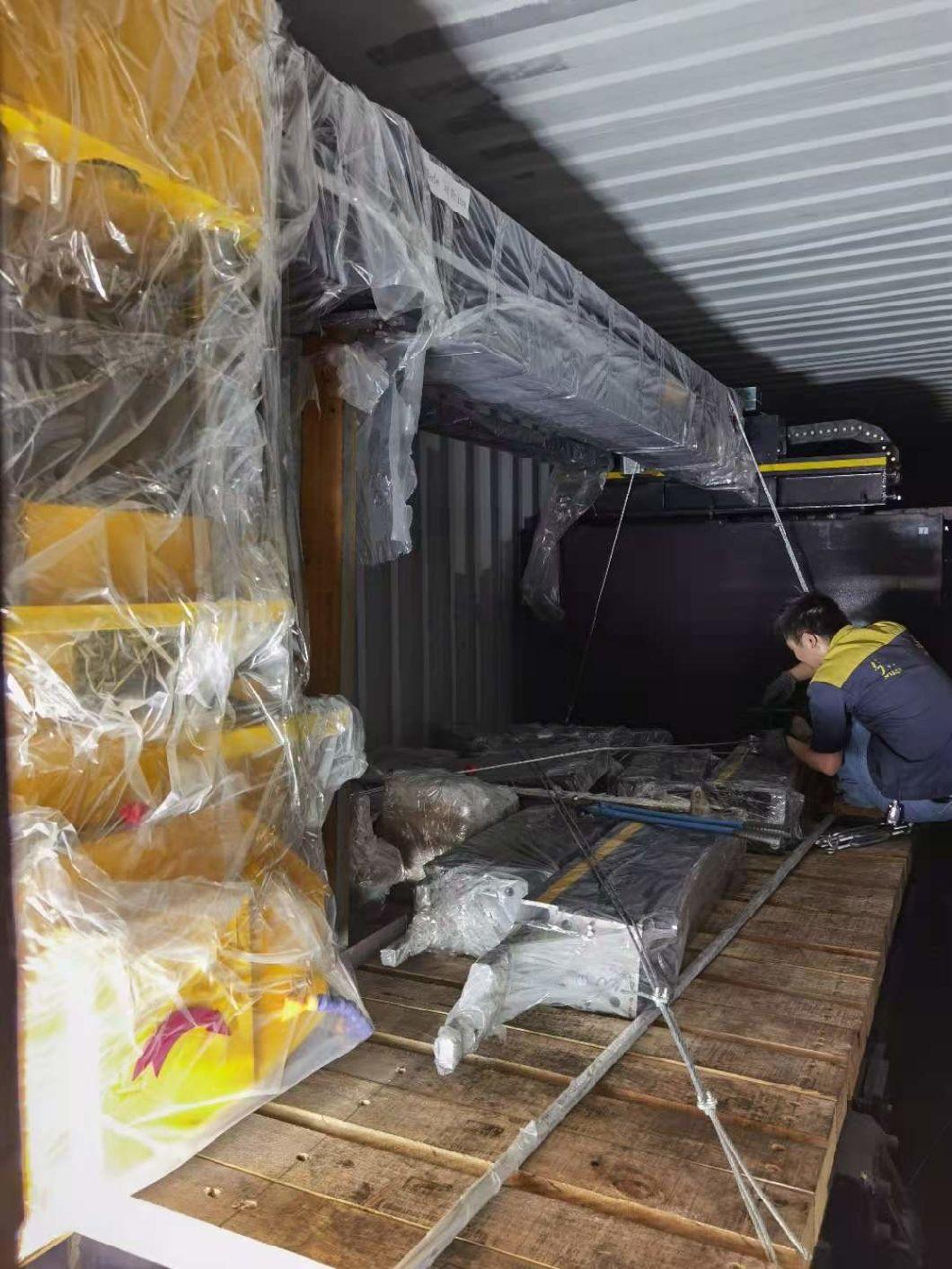

Packing & Loading
