Hydraulic Paving Block Cutting Machine for Granite
Xiamen Bestlink Factory Co., Ltd.- Type：Hydraulic Cutting Machine
- Usage：Fire Brick, Red Brick, Concrete Curb, Granite, Marble
- Application：Machinery & Hardware, Stone Industry
- Source Voltage：380V
- Automation：Manual
- Cutting Ability：Medium Speed
Base Info
- Model NO.：BRT
- Certification：CE
- Color：Green
- Press：160t
- Weight：5000kg
- Power：15lw
- Market：Hz
- MOQ：1
- Max.Height：550mm
- Max.Width：500mm
- Transport Package：Wooden
- Specification：CE
- Trademark：BESTLINK
- Origin：Xiamen, Fujian
- HS Code：84791090
- Production Capacity：1000sets,Year
Description
Basic Info.
Model NO. BRT Certification CE Color Green Press 160t Weight 5000kg Power 15lw Market Hz MOQ 1 Max.Height 550mm Max.Width 500mm Transport Package Wooden Specification CE Trademark BESTLINK Origin Xiamen, Fujian HS Code 84791090 Production Capacity 1000sets/YearProduct Description

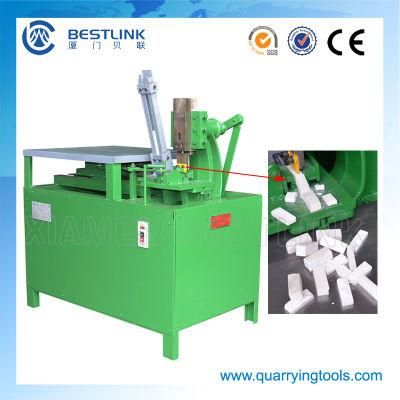

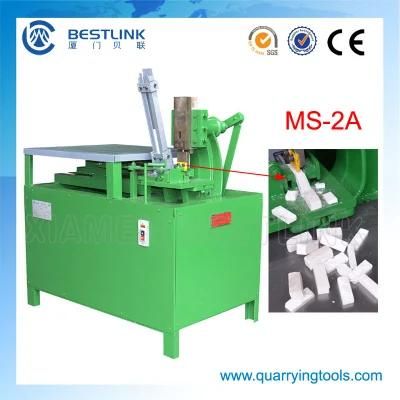

Hydraulic stone cutting machineOnline video of Hydraulic stone cutting machine:HTTP://xmbestlink.en.made-in-china.com
Hydraulic stone cutting machine is suitable for splitting all types of natural and artificial stones, cube stone/curb stone/wall stone/blockstone/tiles/pavingstone/countertops/vanity tops.Every splitting machine can be integrated in a production line.It could be especially designed according to your equirements.
The main characters of our hdyraulic stone cutting machines are:
1.The electrical control cabinet adopt the French Schneider, with internal layout reasonable and neat, and
Through the senor switch to facilitate rapid signal to make the movements of the machine consecutive and accurate.
2.The hydraulic system adopts from German Bosch Rexroth, providing sustainable, stable and sufficient
Power to the machine.
3.The motor is Siemens motor.4.With intelligent gear cutting head, itcould adjust itself according to the smooth condition of the stone surface.
5.We can design a perfect stone cutting line from blocks to paving stone, wall stone, mosaic, cobble stone, etc, upon the demand of customers.
| Stone Splitter | BRT160T-500×550-RB30×15 | |
| Technical Specification of Item 4: | ||
| DESCRIPTIONS | UNIT | VALUE |
| Blade Width | Mm | 500 |
| Piston extend | Mm | 570 |
| Max splitting power | Ton | 160 |
| Max splitting width | Mm | 500 |
| Max splitting height | Mm | 550 |
| Dimension of main machine(L*W*H) | Mm | 1970*1200*3230 |
| Electric power | KW | 15 |
| Electric voltage | U | 380V,50HZ |
| Weight | Kg | 7500 |
| Oil tank capacity | L | 670 |
| Blade with adaption(mm) | Mm | 30(upper)*15(Lower) |
