• Model NO.：MS-40
• Control：Electric
• Color：Green or According to Your Requirement
• Certificate：CE
• MOQ：1 Sets
• Loading Port：Xiamen
• Weight：150kg
• Dimension：60cm*65cm*185cm
• Transport Package：Wooden Box
• Specification：CE
• Trademark：BESTLINK
• Origin：Xiamen, China
• HS Code：70161000
• Production Capacity：2000,Yeaer

Basic Info.

Model NO. MS-40 Control Electric Color Green or According to Your Requirement Certificate CE MOQ 1 Sets Loading Port Xiamen Weight 150kg Dimension 60cm*65cm*185cm Transport Package Wooden Box Specification CE Trademark BESTLINK Origin Xiamen, China HS Code 70161000 Production Capacity 2000/Yeaer

Product Description

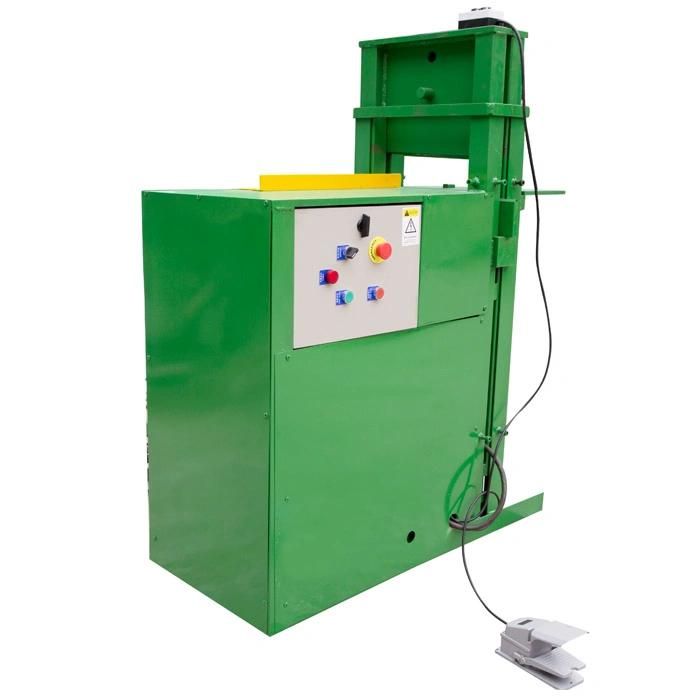

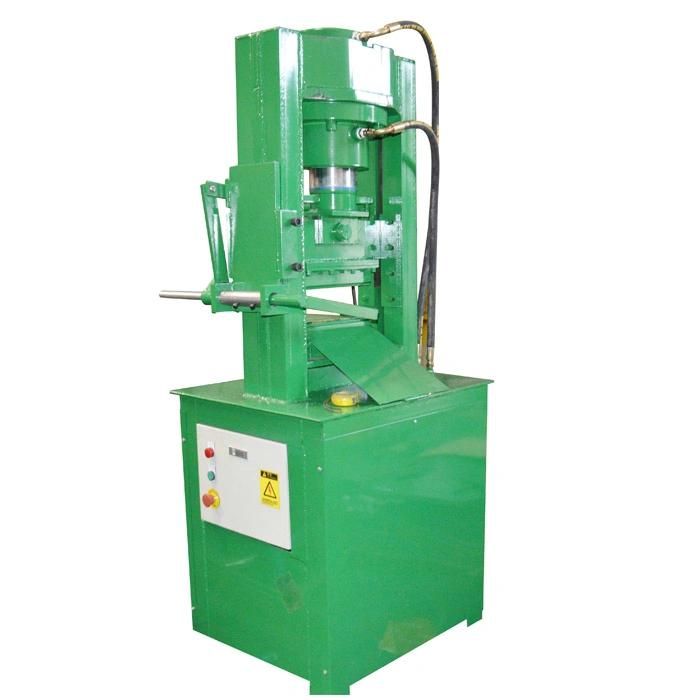

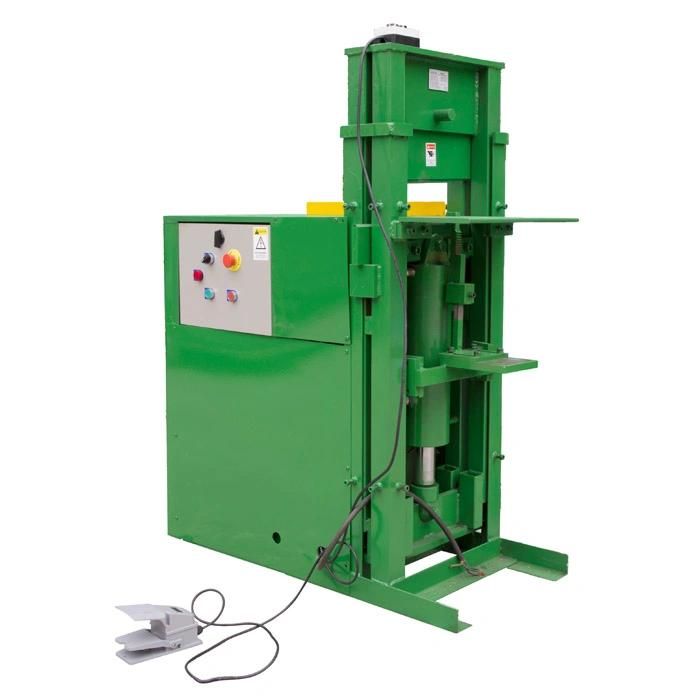

Electric Mosic stones splitting machine

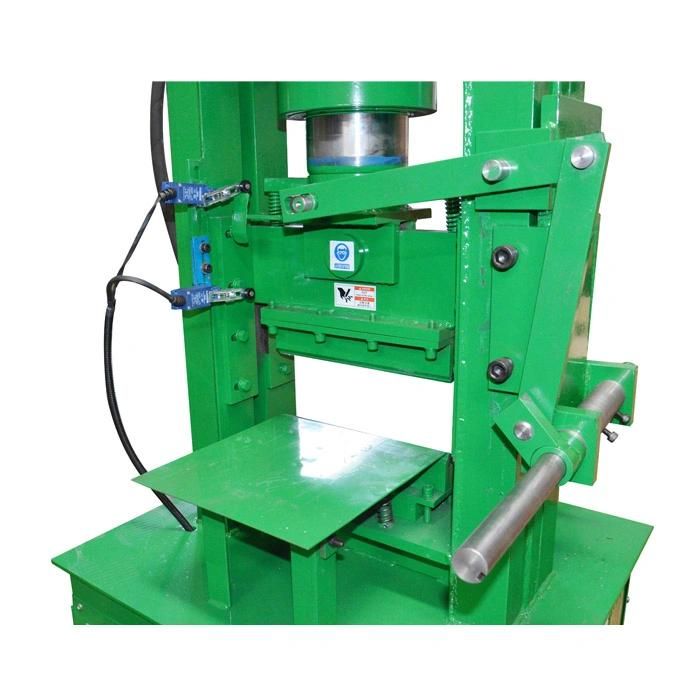

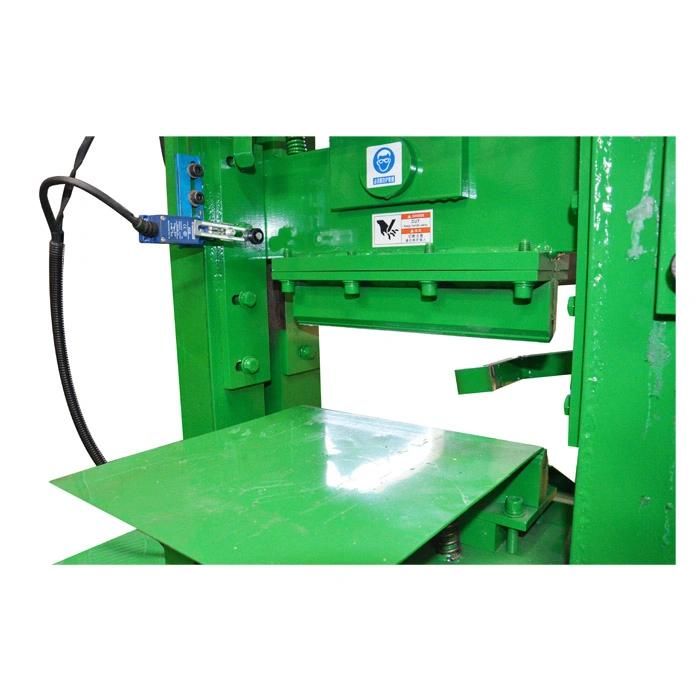

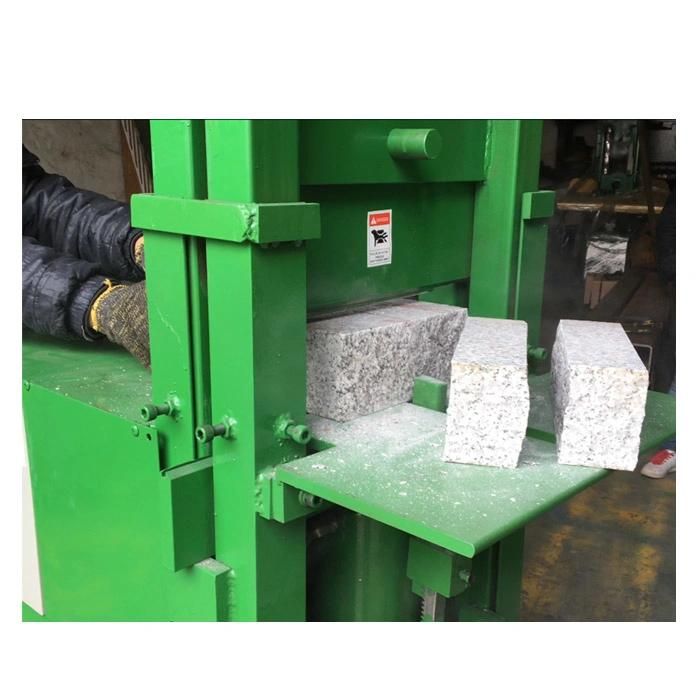

The mosaic chopping machines are realized for cutting various sizes of stones: tesserae, cubes & all the shapes desired. The structure of both the machines is realized in steel, while fly-wheel and slides are produced in cast iron. are equipped with two blades in hardened steel: the lower part is secured to the structure and doesn't move; the upper one is driven by the fly-wheel and falls in a perpendicular on the lower.
Specifications:
Splitting force: 12 tons
Max. Splitting width 240mm
Max. Splitting thickness...100mm
Size: 500*600*1600 mm
Net weight: 210kg

Model No	MS-02 (manual)	MS-02S (manual+stand)	MS-02E (electric)	MS-12(electric)	MS-30(electric)
Splitting Force	2 tons	2 tons	2 tons	12 tons	30 tons
Max Cutting Width	240 mm	240 mm	240 mm	240 mm	300mm
Max Cutting height	65 mm	65 mm	65 mm	100 mm	60mm(for granite)
Power Supply	0	0	0	3.0 kw	5.5kw
Oil Tank	0	0	0	30 L	60L
Overall Size	500*400*700 mm	1500*700*500mm	900*400*400mm	500*600*1600 mm	700*800*1700mm
Net Weight	70 kg	80kg	65 kg	210 kg	350kg
