Bridge Saw Artificial Granite Marble Quarry Rock Agate Natural Stone Block Cutting Machine
Shandong Datang Machinery Technology Co., Ltd.- Warranty：1 Year
- Type：CNC Cutting Machine
Base Info
- Model NO.：DTQD
- Usage：Granite, Marble
- Application：Machinery & Hardware, Construction, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
- Control：CNC
- Certification：ISO, CE

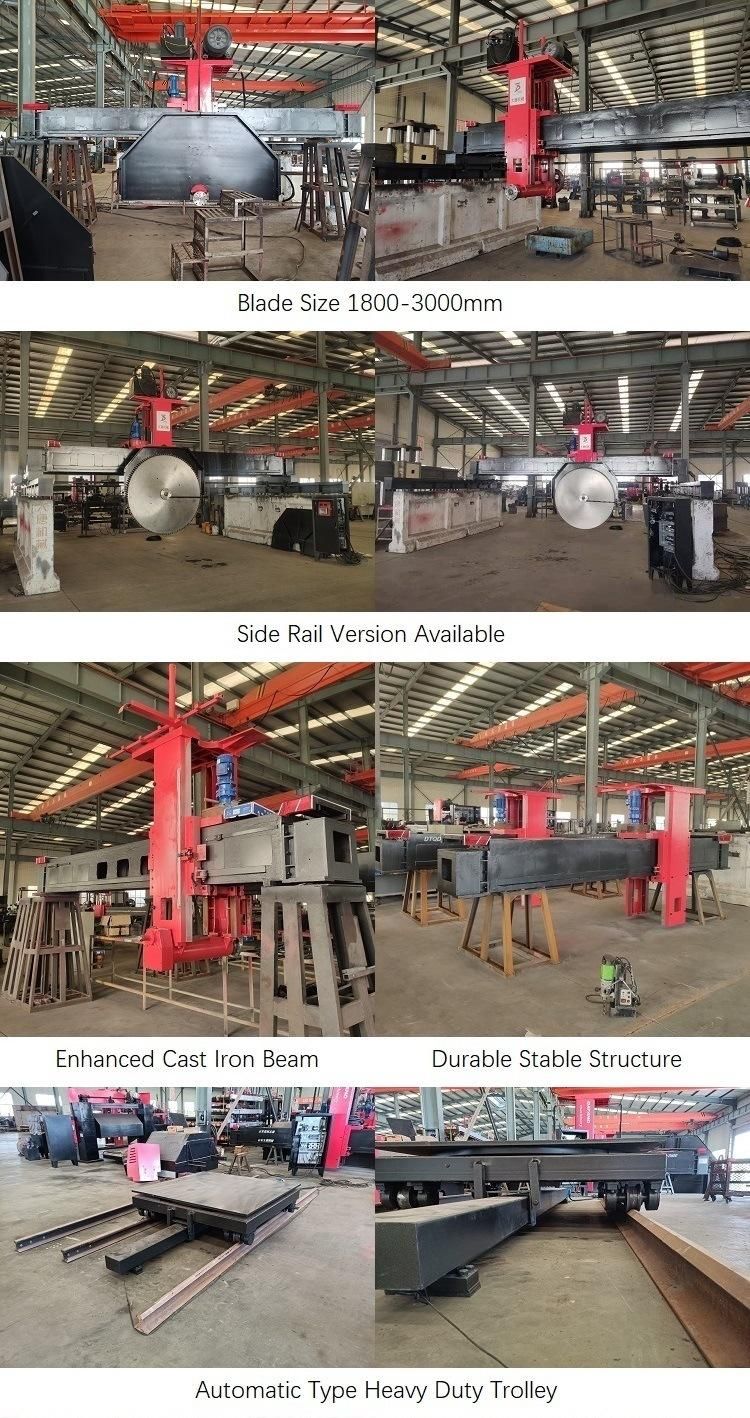

- Blade Size：2600mm
- Max. Cutting Length：4800mm
- Max. Lifting Stroke：1300mm
- Work Table Size：2000*2000mm
- Main Motor Power：37kw
- Feed Motor Power：2.2kw
- Total Power：42.25kw
- Water Consumption：8m3,H
- Dimension：6300*5150*7100mm
- Weight：8500kg
- Transport Package：Nude
- Specification：6220*5150*7100mm
- Trademark：Datang
- Origin：China
- HS Code：8464101000
- Production Capacity：600sets,Year
Description
ModelDTQD-1800DTQD-2200DTQD-2600DTQD-3000Blade Size1800mm2200mm2600mm3000mmHorizontal Stroke3500mm3600mm3700mm3800mmLifting Stroke1150mm1150/1300mm1400mm1500mmBeam Length6000mm6500mm7000mm7500-9500mmSlide Plate Length2000mm2000/2150mm2250mm2350mmMain Motor Power30kW37kW37kW37kWFeed Motor Power1.5kW1.5kW2.2kW2.2kWHydraulic Station Power3kW3kW4kW4kWWater Consumption6m3/h7m3/h9m3/h10m3/hTrolley Size1700*1700mm1700*1700mm1700*1700mm1700*1700mmTrolley Rail Distance1400mm1400mm1400mm1400mmTrolley Rail Length5000mm5000mm5000mm5000mmDimension5220*5150*5210mm5720*5150*6000mm6220*5150*7100mm6720*5150*5800mmWeight7000kg7500kg8500kg9000kg
