• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Blade Size：400-625mm
• Cut Size (L*W*H)：3200*2000*170mm
• Blade Tilt：0-45 Degrees
• Table Tilt：0-85 Degrees
• Table Rotate：0-360 Degrees
• Spindle Motor：15kw 20HP
• Size (L*W*H)：6*5*3
• Weight：7200kg
• Transport Package：Plastic Packing
• Specification：6*5*3m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641010
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Blade Size 400-625mm Cut Size (L*W*H) 3200*2000*170mm Blade Tilt 0-45 Degrees Table Tilt 0-85 Degrees Table Rotate 0-360 Degrees Spindle Motor 15kw 20HP Size (L*W*H) 6*5*3 Weight 7200kg Transport Package Plastic Packing Specification 6*5*3m Trademark AGA Origin Xiamen, China HS Code 84641010 Production Capacity 100 Sets/Month

Product Description

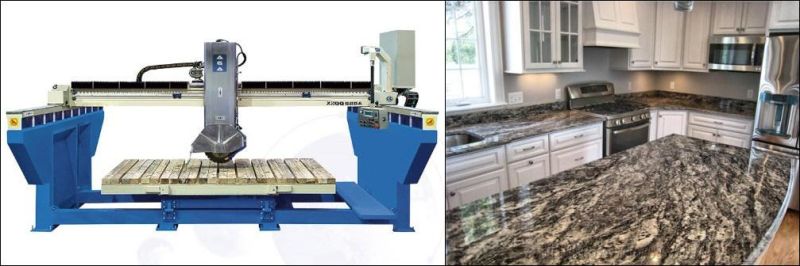

Automatic Granite Bridge Saw Marble Bridge Saw with 45 Miter Cutting  Model XZQQ625A
China premium bridge saw preferable for cutting granite, marble, quartz and other stones, robust in cutting kitchen tops, vanity tops, slabs, tiles, etc.

Granite bridge saw specification:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

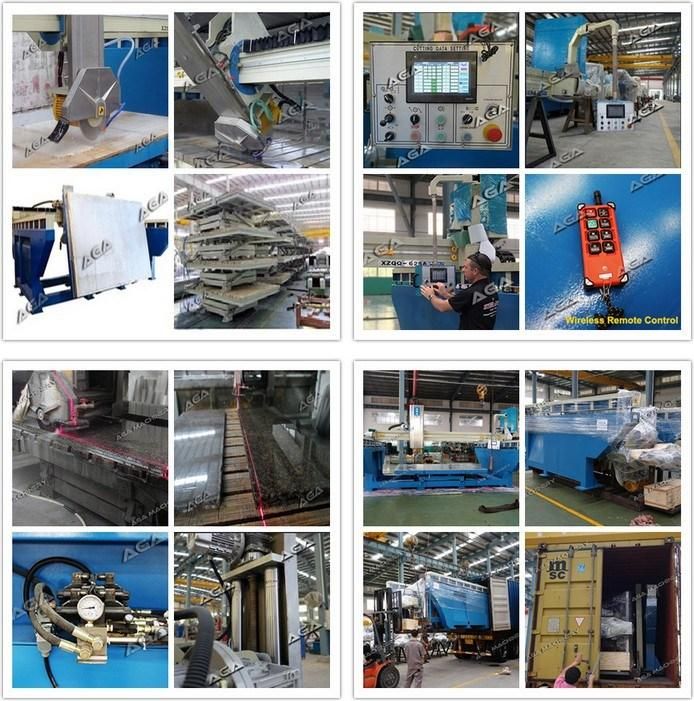

Advantages
- A powerful motor 20 HP and able to cut 3200 mm length, 2000 mm width and 170 mm thick (126"×78"×6.7" L / W / H).

-  Blade travels on the bridge and it also provides automatic power tilting 0 - 45 degree for Miter cuts.

-  Table turns 0 - 360 degree automatically stopped any position and also tilts 0 - 85 degree Hydraulic for easy load of material.

-  This mono block bridge saw machine is computer control and with color Display Touch Screen.

-  It is able to do multiple programs for up to 99 repeat cuts automatically and also capable of manual operation.

-  Wireless remote provides ease control of the saw.

-  Laser guide and sensors give precision cuts every time.

-  Automatic water control saving every drop.

-  Movements of bridge rails are in covered oil bath ensuring smooth movements and reduced wear.

-  Main structures are made of very strong cast iron for stable running and stainless steel for protection.

-  All functions are operated on the control panel that make it very user friendly.

-  Operating Language in English and Input Sizes unit in Inch or mm.

Key words:
Stone bridge saw, granite bridge saw, stone cutting machine, bridge cutting machine, automatic bridge saw, china bridge saw, granite saw, stone saw, granite cutting machine, granite sawing machine, bridge sawing machine, slab cutting machine, etc.

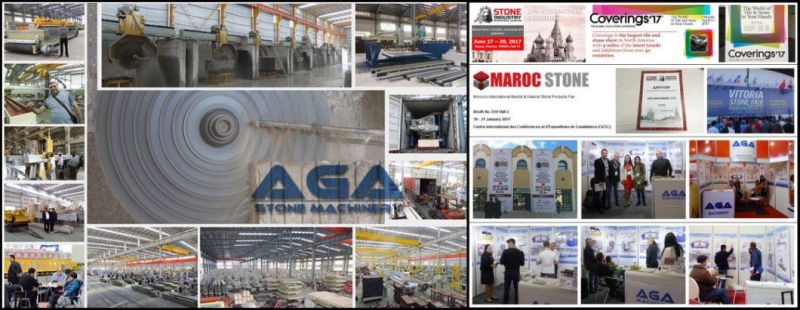

Bridge saws shipped out to customers throughout the world:


FAQs:
1) Payment:
By wire transfer. T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Guarantee:
Warranty for one year.
24-hour technical support Internet or by Telephone, free instructions and Problem solving.
