• Model NO.：various
• Application：Construction, Mineral Industry, Stone Industry
• Drive：Electric
• Crushing Style：Grinding & Impact
• Compressive Strength (For Crushing)：>300MPA
• Crushing Degree：Intermediate Crusher
• Finished Surface：Hole Process
• Certification：CE, ISO
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：40-850tph
• Package size per unit product：500.00cm * 300.00cm * 400.00cm
• Gross weight per unit product：5000.000kg

Basic Info.

Model NO. various Application Construction, Mineral Industry, Stone Industry Drive Electric Crushing Style Grinding & Impact Compressive Strength (For Crushing) >300MPA Crushing Degree Intermediate Crusher Finished Surface Hole Process Certification CE, ISO Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 40-850tph

Packaging & Delivery

Package size per unit product 500.00cm * 300.00cm * 400.00cm Gross weight per unit product 5000.000kg

Product Description

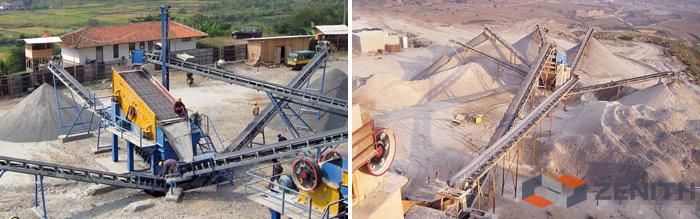

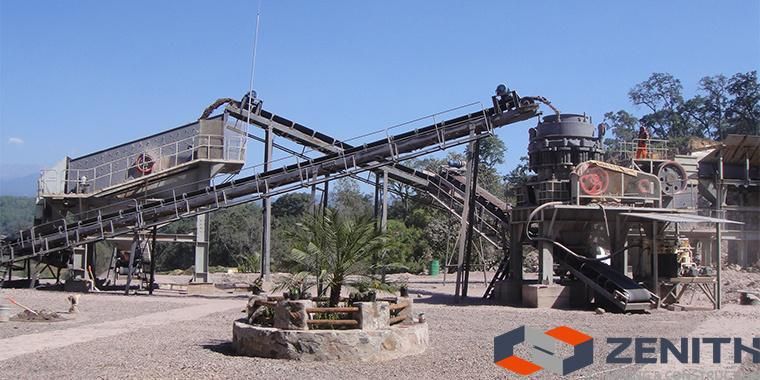

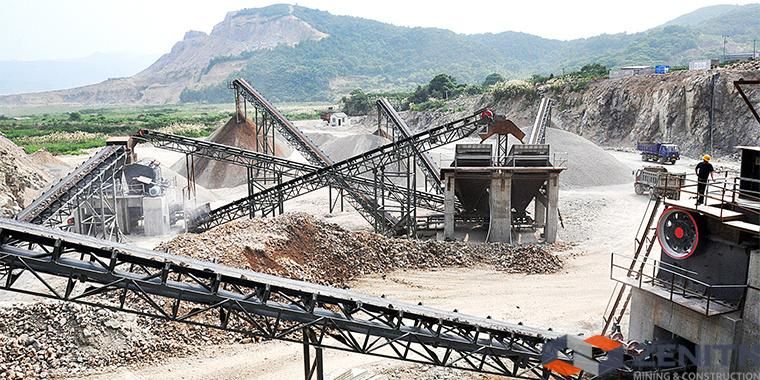

Famous Stone Crushing Plant/Stone Quarry Machines for Sale

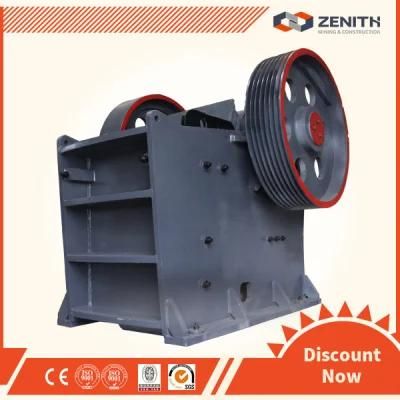

Stone Crushing Plant/Stone Quarry Machines including: Vibrating feeder, jaw crusher, impact crusher, vibrating screen, belt conveyor and centrally electric controlling system, etc. The designed capacity is from 50t/h to 500t/h. To meet customer's specific requirement, we can also add other equipments such as cone crusher, dust catcher on the production line.

Shanghai Zenith manufactures various equipments for a whole set of Stone Crushing Plant/Stone Quarry Machines , and provides complete technical support for customers. The whole production line consists of Vibrating Feeder, Jaw Crusher, Impact Crusher, Vibrating Screen, Belt Conveyor, electric control, etc. We design different production lines ranging 50 t/h to 500 t/h by combining different models of equipment which can match Cone Crusher, deduster, etc. If necessary to satisfy different customers' technological requirements. It is widely used for crushing hard limestone, granite, basalt, gravel, metallurgic slag, etc. Or artificial sand making for hydroelectric power, building material, high way, city construction, etc. Different models of machines are combined to meet different customers' different demands according to different craft requirements.

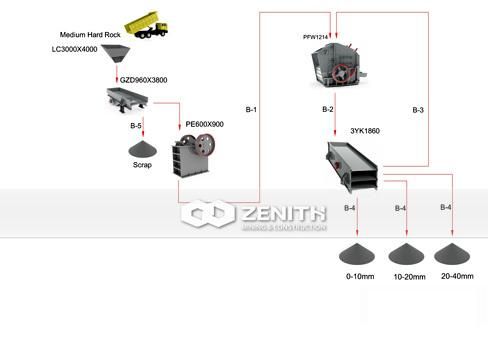

Process of the Stone Crushing Plant/Stone Quarry Machines

Big size stones are transferred to primary crusher through vibrating feeder from hopper for first crushing, then the crushed materials are transferred to impact crusher through belt conveyor for secondary crushing. The materials crushed will be transferred to the vibrating screen, and separated to different sizes. The aggregate with suitable size will be transferred to the final product pile and aggregate with unsuitable size will be transferred to the impact crusher for re-crushing. This forms a closed and manifold cycles. The sizes of final products will be graded and separated according to customers' requirements, and the duster will be attached for the sake of environment protection.

Stone Crushing Plant/Stone Quarry Machines parameters:


Components	Transport dimensions	Specification
Crusher EP600X900 Feeder -Length: 3800mm -Width: 960mm Diesel generator -TypeMP-180-4 -Power225KVA  180kw -Weight2400KG Conveyor -Length: 12600mm -Width 650mm	Length L114000mm Width B12450mm Height H14000mm Wheel Chassis height difference H5: 380mm Chassis height H41720mm Appose double axle Double wheels each sides specs 11.00-20 Total weight :   38700kg	Motor power93.5KW Capacity Feeder height H34500mm Length  L216300mm Transport height H23300mm

Diesel engine mobile crushing plant

Components	Transport dimensions	Specification
Crusher EP600X900 Vibrating feeder -Length: 3800mm -Width: 960mm Conveyor -Standard length: 9500mm -Lengthened length: 11600mm -Width: 650mm	Length L112500mm Width B12450mm Height H14000mm Chassis height H41720mm Wheel Chassis height difference H5: 380mm Parallel double axle Double wheels each sides specs  11.00-20 Total weight Standard plant 37650kg Lengthened plant 38000kg	Motor power91.5KW Capacity Feeder height H34500mm Standard plant Length L213150mm Transport height H22700mm Lengthened plant Length L215050mm Transport height H23100mm
