• Model NO.：BTC-2500
• Control：PLC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Max Blade Diameter：Φ2500mm
• Max Processing Length：3000,3500mm
• Max Processing Width：2500mm
• Max Lifting Stroke：1350mm
• Water Consumption：15m3,H
• Main Motor：45,55kw
• Gross Motor：56,66kw
• Outline Dimension：8000*48800*3700mm
• Gross Weight：14500kg
• Blade：Multi-Blades
• Transport Package：Load in a 40 Feet Container
• Specification：8000*48800*3700mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. BTC-2500 Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Max Blade Diameter Φ2500mm Max Processing Length 3000/3500mm Max Processing Width 2500mm Max Lifting Stroke 1350mm Water Consumption 15m3/H Main Motor 45/55kw Gross Motor 56/66kw Outline Dimension 8000*48800*3700mm Gross Weight 14500kg Blade Multi-Blades Transport Package Load in a 40 Feet Container Specification 8000*48800*3700mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

Product Description

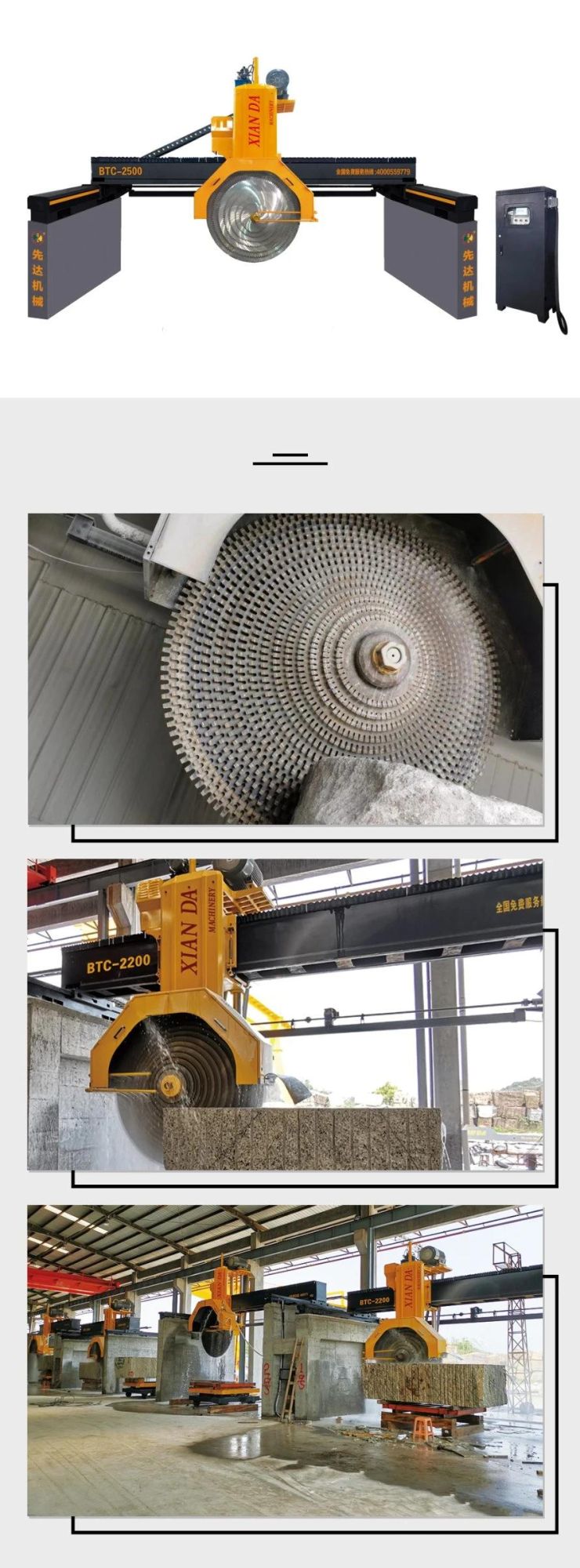

BTC-2200/2500/2800 Multi-blades Granite Marble Bridge Block Cutting Machine uses inverter to control left-right feeding, speed adjustable. It uses hydraulic lifting system, combined with four guide poles, also Guide Sleeve with multi-functions layer seals, like waterproof, dustproof, anti-spill. Forward-backward slicing uses high-precision screw nut driving, automatic slicing. Main spare parts adopt imported good-quality materials, the block can be placed on the ground directly. Thus the whole machine is featured with high cutting efficiency, high slicing precision, high flatness of plate after cutting, high stability, easy-operating etc. It is a ideal equipment for your fabricating plant.

Note: 360°rotating worktable can be selected if customer requires.

Technical Parameter

Parameter	Unit	BTC-2200	BTC-2500	BTC-2800
Max blade diameter	mm	2200	2500	2800
Max processing length	mm	3600	3300	3200
Max processing width	mm	2200	2200	2800
Max lifting stroke	mm	1350	1350	1350
Water consumption	m3/h	15	15	15
Main motor	kw	45/55	45/55	55
Gross motor	kw	56/66	56/66	66
Outline dimension	mm	8000*4800*3700	8000*4800*3700	8000*4800*3700
Gross weight	kg	14000	14500	15000

Xianda Machinery

Fujian  Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
