• Model NO.：Discovery 4-2000,2500,3000
• Control：CNC
• Certification：ISO, CE
• Warranty：12 Months for Parts
• Transport Package：Solid Packaging with Water Proof Material
• Specification：6800*6200*3800, 7800*6200*3800, 8800*6200*3800
• Trademark：Kingrhino
• Origin：Fujian, China
• HS Code：84641090
• Production Capacity：300-500sets,Year

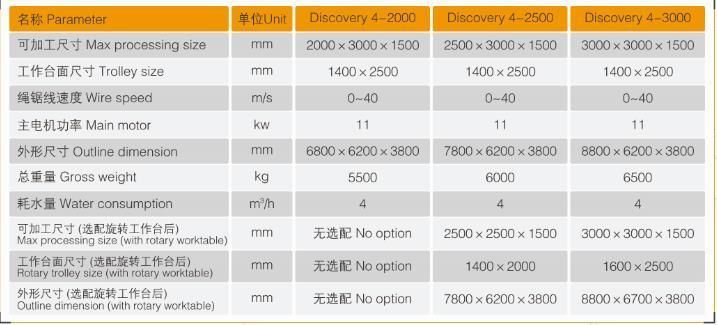

Basic Info.

Model NO. Discovery 4-2000/2500/3000 Control CNC Certification ISO, CE Warranty 12 Months for Parts Transport Package Solid Packaging with Water Proof Material Specification 6800*6200*3800, 7800*6200*3800, 8800*6200*3800 Trademark Kingrhino Origin Fujian, China HS Code 84641090 Production Capacity 300-500sets/Year

Product Description

Equipment features:

DISCOVERY 4 - 2000/2500/3000Xianda Squaring Profiling Machine adopts CNC system Four-Axis linkage with stable cutting, used to trimming the four surfaces of the stone block, also can cut the block to slab, which is the ideal equipment for cutting the block, and trimming stone block. It will have multi-function with profiling, squaring, trimming and cutting.

1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel manual controlled.
4. Worktable is running by worm motor and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm. One fly wheel slide through sheave, oil pump control rope tension.
7.This machine is guaranteed for one year.
