• Model NO.：pew series
• Crushing Style：Extruding & Milling
• Compressive Strength (For Crushing)：Various According to Different Model
• Crushing Degree：Intermediate Crusher
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：50-850tph

Basic Info.

Model NO. pew series Crushing Style Extruding & Milling Compressive Strength (For Crushing) Various According to Different Model Crushing Degree Intermediate Crusher Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 50-850tph

Product Description

Zenith 500 Tph Hard Stone Jaw Crushing Machine

Hard Stone Jaw Crushing Machine introduction:

New generation crusher, pew series Hard Stone Jaw Crushing Machine is born with innovative significance. It is newly designed and improved by our experts on basis of their more than 20 years' crusher manufacturing and designing experience. The unique design concept makes this series crusher achieve perfect combination between crushing efficiency and operating cost. Meanwhile, it has wide range of application, particularly suitable for crushing hard rock, such as basalt, river pebbles.



Performance Features of Hard Stone Jaw Crushing Machine:

1 Hard Stone Jaw Crushing Machine can effectively solve the original limestone crusher for lower production led to high rates of operation, without maintenance time.
2 Stone Jaw crusher Can complete large pieces of the limestone crushing and solve the problem of limestone tight supply and storage large chunks of limestone is not able to use.
3 Two kinds of material mixing uniformity is good, improving the dosage of the desulfurization limestone and effectively reducing the source of raw materials.
4 High level of automation, without human contact materials, effectively improve the labor intensity of workers and working environment.
5 High reduction ratio and uniform final product size, effectively solve the original limestone particle size is large, often blocking or even influence the production of flour mill of the valve.


Hard Stone Jaw Crushing Machine Application:

Applicable material:Stone Jaw Crushers is applicable to crush all sorts of materials such as limestone, calcium carbide, calcium carbide slag, shale, basalt, cobble stone, iron ore, copper, steel slag, etc. with the compressive strength below 320Mpa.
Application industry: Stone Jaw Crusher is widely used for the crafts of mining, metallurgy, building material, highway, water conservancy, chemical, and many other departments.


Hard Stone Jaw Crushing Machine working principle:

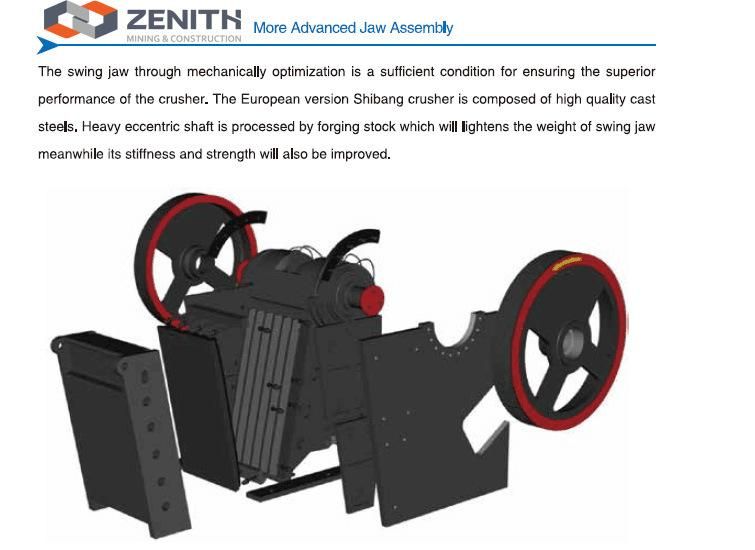

Hard Stone Jaw Crushing Machine mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring.
The movable jaw goes upward and downward through eccentric shaft when belt and belt wheel are driven by the motor. The angle between movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come closely to fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw.
When the movable jaw goes downward, the angle between movable jaw and bracket turns small. Under the force of spring and connecting bars, the movable jaw plate leaves fixed jaw plate, and the crushed materials with qualified size are discharged from the crushing cavity. With the continuous rotation of the motor, the movable jaw crushers and discharges materials, which, in turn, realizes the goal of mass production.


Hard Stone Jaw Crushing Machine technical data:


Model	Feed Inlet Size (mm)	Max Feed Size (mm)	Outlet Range (mm)	Capacity (t/h)	Motor Power (KW)	Weight (ton)	Overall Dimension(mm)
PEW760	760x1100	620	75-200	150-350	110-132	24	2600× 2500× 2200
PEW860	860x1100	720	100-225	200-500	132-160	32	3300× 2320× 3120
PEW1100	1100x1200	930	150-275	300-650	185-200	59.2	4140× 2660× 3560
PEW400x600	400x600	350	35-85	15-70	37	6.8	1920× 1460× 1840
PEW250x1200	250x1200	220	20-40	20-50	37	6	1400× 2050× 1310
PEW250x1000	250x1000	220	20-40	15-50	30	5.6	1400× 1850× 1310
