Xianda Planar Stone Carving Machine
Fujian Xianda Machinery Co., Ltd.- Function：Line Engraving
- Application Material：Marble
- Automation：Automatic
- Control：CNC
- Motor Power：Small Power
- Engraving Head Speed Adjustability：Small Adjustable Range
Base Info
- Model NO.：SEM-1325
- Certification：CE, ISO
- Current：AC
- Customized：Customized
- Main Motor：5.5kw
- Gross Weight：2000kg
- Max Processing Size：1300*2500
- Transport Package：Standard Packing for Shipment
- Specification：2300*3500*2200mm
- Trademark：Xianda
- Origin：China
- HS Code：84641090
- Production Capacity：1000 Sets,Year
Description
Basic Info.
Model NO. SEM-1325 Certification CE, ISO Current AC Customized Customized Main Motor 5.5kw Gross Weight 2000kg Max Processing Size 1300*2500 Transport Package Standard Packing for Shipment Specification 2300*3500*2200mm Trademark Xianda Origin China HS Code 84641090 Production Capacity 1000 Sets/YearProduct Description

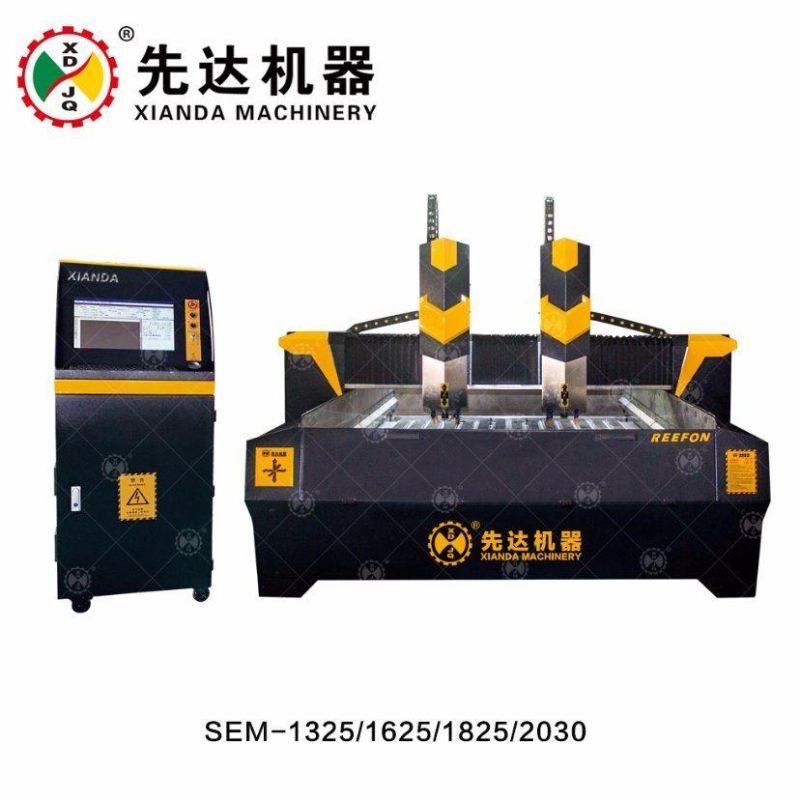

Xianda planar stone carving machine
Technical Parameter
| Parameter | Unit | SEM-1325 SEM-1325-2D | SEM-1625 SEM-1625-2D |
| Dimension of worktable | mm | 1300*2500 | 1600*2500 |
| Feed height | mm | ≤380 | ≤380 |
| Air Speed | m/min | 15 | 15 |
| Machining speed | m/min | 10 | 10 |
| Number of spindles | pcs | 1pcs 2pcs(2D) | 1pcs 2pcs(2D) |
| Spindle Power | kw | 5.5 | 5.5 |
| Outline dimension(L*W*H) | mm | 2300*3500*2200 | 2600*3500*2200 |
| Water consumption | M3/h | 1 | 1 |
Xianda machinery
Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.
