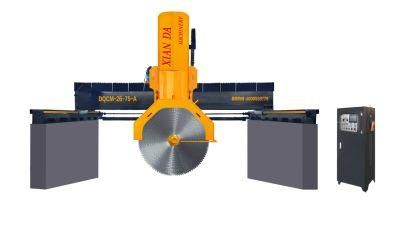

Patent Product PLC Dual Drive Block Cutting Machine
Xiamen Kingrhino Import&Export Co., Ltd.- Type：Hydraulic Cutting Machine
- Usage：Granite, Marble, Limestone
- Application：Machinery & Hardware, Construction, Stone Industry
- Source Voltage：380V
- Automation：Semi-automatic
- Cutting Ability：High Speed
Base Info

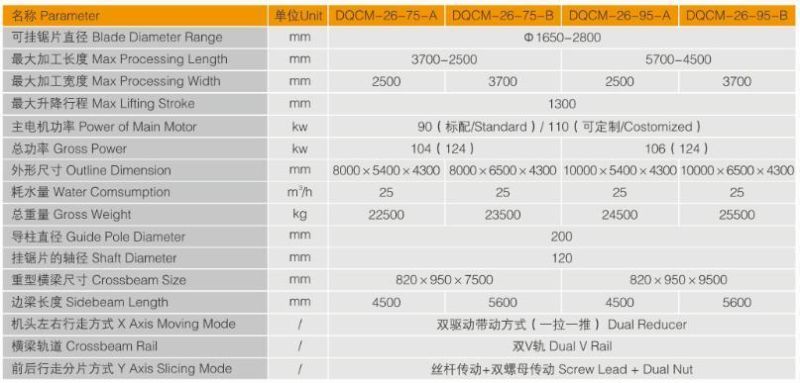

- Model NO.：DQCM-26-75,95
- Control：PLC
- Certification：ISO, CE
- Warranty：12 Months for Parts
- Transport Package：Solid Packaging with Plastic
- Specification：10000x6500x4300mm
- Trademark：Kingrhino
- Origin：Jinjiang, China
- HS Code：8464109000
- Production Capacity：100 Set,Month
Description
Basic Info.
Model NO. DQCM-26-75/95 Control PLC Certification ISO, CE Warranty 12 Months for Parts Transport Package Solid Packaging with Plastic Specification 10000x6500x4300mm Trademark Kingrhino Origin Jinjiang, China HS Code 8464109000 Production Capacity 100 Set/MonthProduct Description
Equipment Features

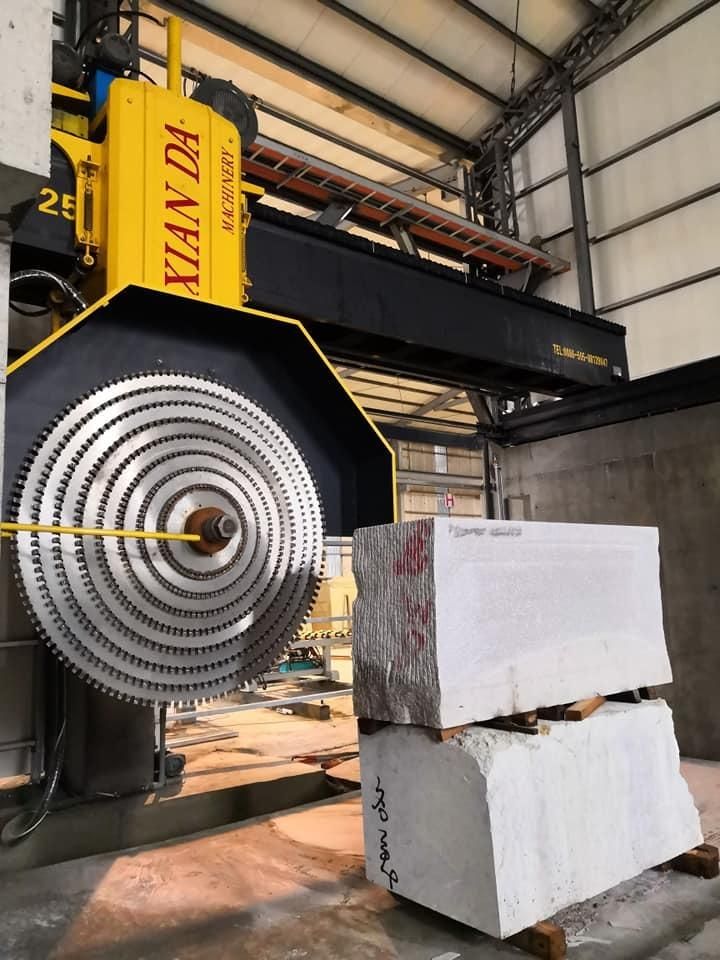

Dual drive heavy duty block cutting machine, adopts our patented dual-drive mode (one pull and one push) for moving left and right, and can adjust the moving speed according to the material, and cooperate with the Dual V-track beam track, so moving more stable; Lifting using hydraulic, with four guide post made of 200mm solid round steel chrome-plated; front and back adopt screw drive and double nut drive, and cooperate with the oil-immersed sidebeam rail, which is more wear-resistant; adopts more longer and more heavy casting beams which makes it cutting more stable.

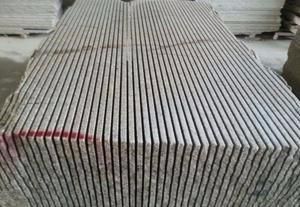

Main parts adopt imported materials; The blocks can be placed in the ground directly to save worktable and its maintenance costs; Thus the whole machine is featured as high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit specially cutting granite block.
