• Model NO.：Y26,Y24, Ty24c,Y28 ,Yt29A, Yt28
• Control：Artificial
• Precision：High Precision
• Application：Construction, Mineral Industry, Stone Industry
• Certification：ISO, CE
• Usage：Coal, Ore, Water Well, Quarry
• Power Type：Gasoline
• Drill Type：Pneumatic Rock Drill
• Air Pressure：0.4-0.63MPa
• Air Consumption：D81L,C
• Layout Character：Vertical, Horizontal, Two Hammer, Four Homme
• Machine Type：Penumatic Rock Drill
• Transport Package：Wood Box
• Specification：CE, SGS
• Trademark：PRODRILL
• Origin：China
• HS Code：84671900
• Production Capacity：10000 PCS ,Month

Basic Info.

Model NO. Y26/Y24/ Ty24c/Y28 /Yt29A/ Yt28 Control Artificial Precision High Precision Application Construction, Mineral Industry, Stone Industry Certification ISO, CE Usage Coal, Ore, Water Well, Quarry Power Type Gasoline Drill Type Pneumatic Rock Drill Air Pressure 0.4-0.63MPa Air Consumption D81L/C Layout Character Vertical, Horizontal, Two Hammer, Four Homme Machine Type Penumatic Rock Drill Transport Package Wood Box Specification CE, SGS Trademark PRODRILL Origin China HS Code 84671900 Production Capacity 10000 PCS /Month

Product Description

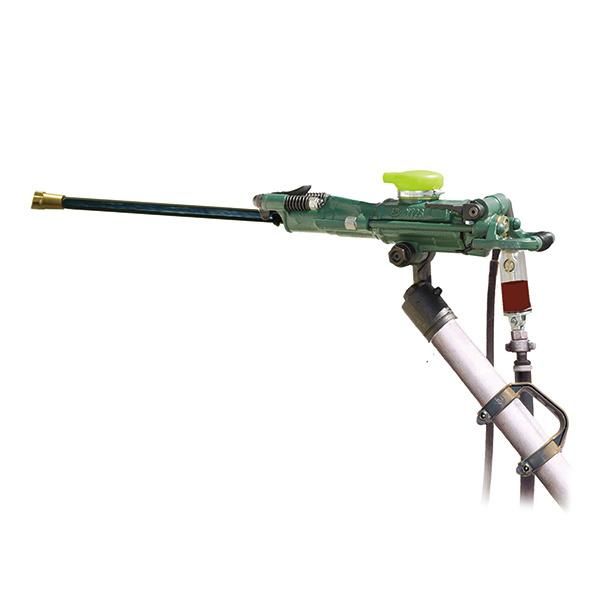

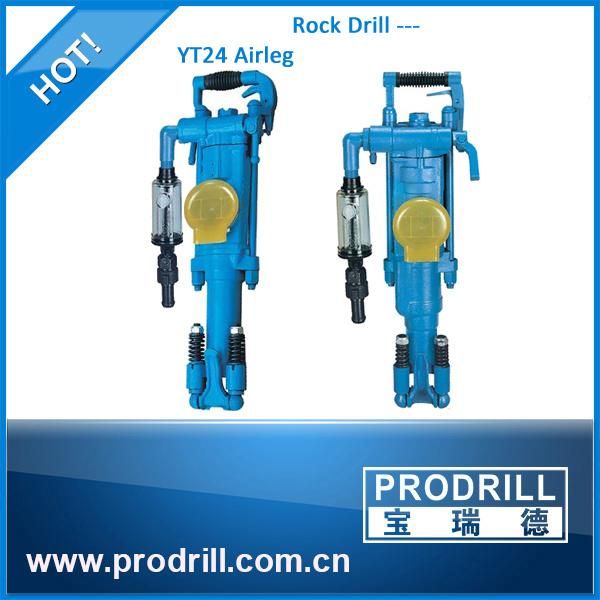

Our pneumatic rock drills can be devided into two parts, one is hand-held rock drill, the other is air-leg rock drill. Both of them have excellent drilling performance.

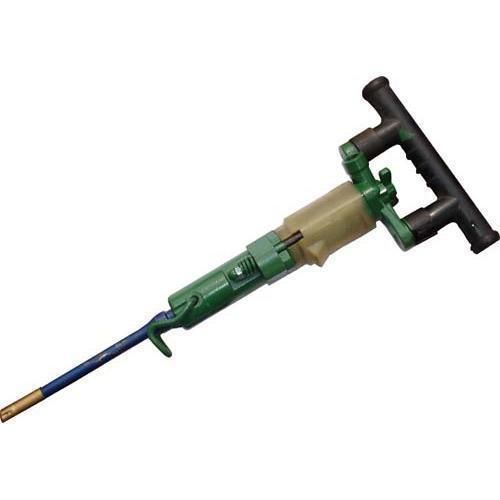

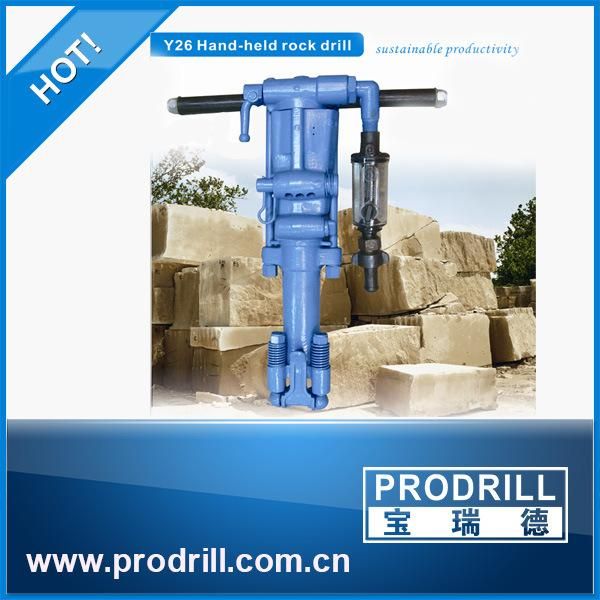

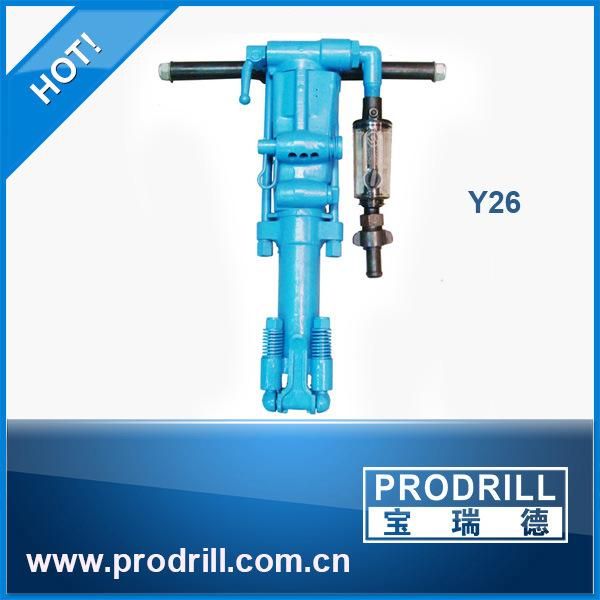

For hand-held rock drills, we have Y6, Y20, Y19A Y24 and Y26. Among them, the Y6, Y20 and Y24 are widely used in quarrying or construction industry.
Model Y6 hand-held rock drill is a light-duty tools designed for quarrying and drilling operation. You may expect satisfaction results with adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting. It has characteristic of low weight, reasonable structure, handy use and little air consumption.




Model Y20 and Y24 Hand-held Rock Drill is intended for drilling downward and inclined blast holes in medium hard and herd rock (f=8~18): · The rock drill is mainly used small quarries. Mines for constructing in mountain areas, water conservancy works in capital construction, also for secondary blasting in large mines and other projects.


Portable Pneumatic/Hand Hold Rock Drill for Secondary Crushing

Technical Parameters

Model		Y6	Y20	Y19A	Y24	Y26
Weight	kg	6	18	19	24	26
Air consumption	L/s	≤9.5L/s	25	43	≤50	≤47
Length	mm	426	605	600	604	650
Shank	mm	15*88	22*108	22*108	22*108	22(25)*108
Bore Dia	mm	20	30-42	30-42	30-42	30-42
Drill depth	m	0.5	3	5	5	5
Impact rate	Hz	51	34	35	30	27
Hose connection	mm	13	16 or 19	19	19	19
