• Model NO.：PF0810
• Finished Surface：Cut Off Tool
• Certification：CE, ISO, SONCAP
• Condition：New
• Color：Red
• Max Feeding Size：150mm
• Output Size：0-60mm
• Capacity：30-80t,H
• Power：75kw
• Dimension：1975*1890*1645mm
• Feeding Size：1070*490mm
• Rotor Speed：500r,Min
• Brand：Raytone
• Place of Oringin：Shandong Linyi
• Raw Material：Iron Ore
• Transport Package：Suitable for Sea Transportation
• Specification：ISO CE SGS SONCAP
• Trademark：Raytone Machinery
• Origin：Shandong Linyi
• HS Code：8464909000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. PF0810 Finished Surface Cut Off Tool Certification CE, ISO, SONCAP Condition New Color Red Max Feeding Size 150mm Output Size 0-60mm Capacity 30-80t/H Power 75kw Dimension 1975*1890*1645mm Feeding Size 1070*490mm Rotor Speed 500r/Min Brand Raytone Place of Oringin Shandong Linyi Raw Material Iron Ore Transport Package Suitable for Sea Transportation Specification ISO CE SGS SONCAP Trademark Raytone Machinery Origin Shandong Linyi HS Code 8464909000 Production Capacity 50 Sets Per Month

Product Description

Brief Introduction:

1. With the big feed opening and spacy crushing cavity, the impact crusher is suitable to crush bulky materials with a large capacity.

2. Clearance between the impact bracket and the hammer is adjustable, thus the shape and size of the finished products is easily controlled.

3. It is of compact structure, high rigidity and large rotary inertia.

4. The high-chrome hammer is wearable.

5. Easy maintenance and the low operation cost.

6. With the high crushing ratio, comprehensive functions and good wearing resistance, this machine boasts high price performance ratio.

Work Principle

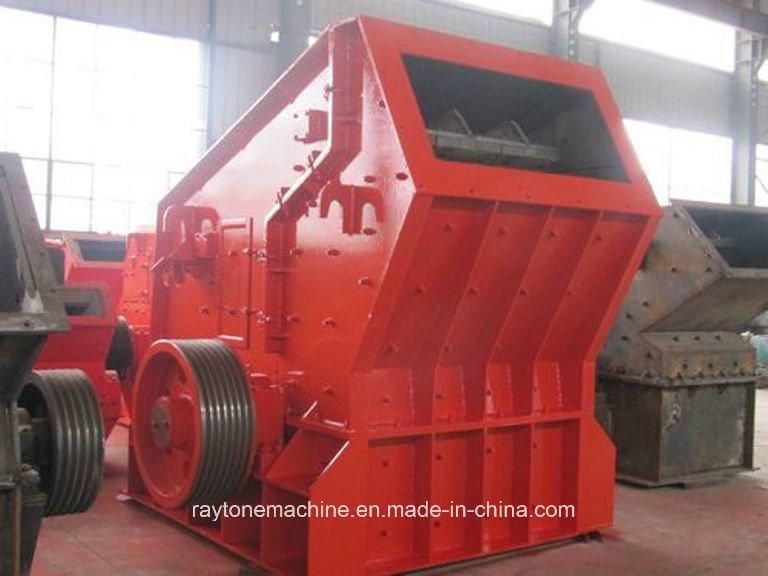

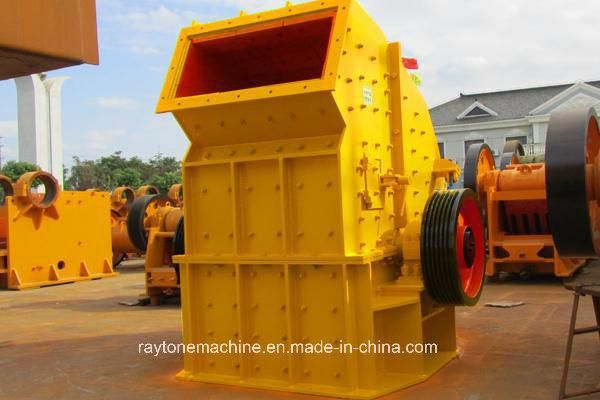

PF series Impact crusher crushes materials with impact force. When the materials enter the blow bar, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finisher powder can be changed by adjusting the gap between the impact rack and rotor support. The machine employs self-weigh security device in its back frame. When other objects enter the impact cavity, they will be forced out of the machine by the impact rack in the front and back of the machine.

Specification of PF1315

size of feeder opening:1070*490

max feeding: 150mm

output size:0-60mm

motor power: 55KW/75KW

rotor speed:500r/min

capacity:30-80t/H

overal dimension: 1975*1890*1645mm
