• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：80sets,Month

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 80sets/Month

Product Description

High Capacity jaw stone crusher machinery in pakistan

stone crusher machinery in pakistan introduction:

stone crusher machinery in pakistan features big crushing ratio, reliable operation, easy maintenance and low operating cost. It is the new generation product designed and produced by zenith, basing on our 30 year's crusher production experience and the latest design conception. It does be one high efficiency and low cost crushing machine.

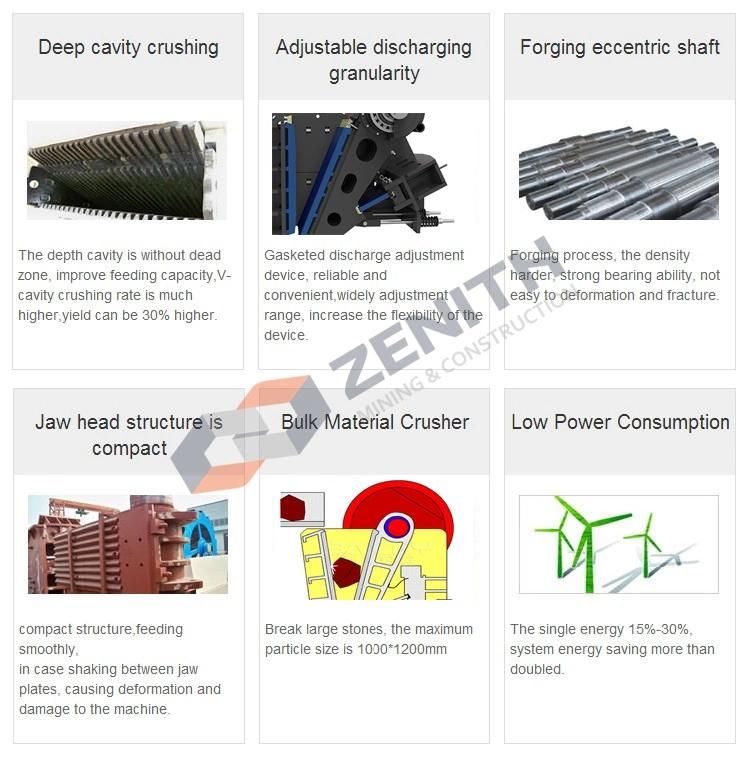

stone crusher machinery in pakistan features:

1. V-shaped structure crushing cavity is able to meet a big feeding.
2. Movable jaw assembly adopts a high-quality steel casting and heavy eccentric shaft has also adopted forging billet for processing.
3. Use of finite element analysis technology helps to reach both light weight and high reliability.
4. Equipped with wedge adjustment devices, enable to realize automatic control and stepless adjustment.

stone crusher machinery in pakistan working principle:

Through the triangle belt, the flywheel is driven by the motor. Then the flywheel drives the eccentric shaft to make the movable jaw plate do reciprocating motion. Materials will be crushed when the movable jaw plate move towards to the fixed jaw plate. End products will be discharged through the discharging opening when the movable jaw plate move backwards.

stone crusher machinery in pakistan parameters:


Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PEW250×1000	250×1000	220	20-40	15-50	330	6-37	Y250M-6/37	1400×1850×1310
PEW250×1200	250×1200	220	20-40	20-50	330	6-37	Y250M-6/37	1400×2050×1310
PEW400×600	400×600	350	35-85	15-70	250	6-37	Y250M-6/37	1920×1460×1840
PEW760	760×1100	620	75-200	150-350	270	6-110	Y315L1-6/110	2600×2500×2200
PEW860	860×1100	720	100-225	200-500	240	6-132	Y315L2-6/132	3300×2320×3120
PEW1100	1100×1200	930	150-275	300-650	210	8-185	Y355L1-8/185	4140×2660×3560
