• Model NO.：CNC-2500
• Control：CNC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, SGS
• Max Processing Size：3000*2500*1500mm
• Dimension of Worktable：2500*1300mm
• Main Motor：7.5kw
• Gross Motor：11kw
• Outline Dimension：7000*6300*3800mm
• Gross Weight：5000kg
• Water Consumption：4m3,H
• Advantage：Multi Function with Good Quality and Price
• Key Words：Stone Machine
• Warranty Time：One Year
• Transport Package：Plastic Package, Suitable for Sea Transportation
• Specification：6500*6300*3800mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. CNC-2500 Control CNC Certification API, CCC, UL, SONCAP, GOST, ISO, CE, SGS Max Processing Size 3000*2500*1500mm Dimension of Worktable 2500*1300mm Main Motor 7.5kw Gross Motor 11kw Outline Dimension 7000*6300*3800mm Gross Weight 5000kg Water Consumption 4m3/H Advantage Multi Function with Good Quality and Price Key Words Stone Machine Warranty Time One Year Transport Package Plastic Package, Suitable for Sea Transportation Specification 6500*6300*3800mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

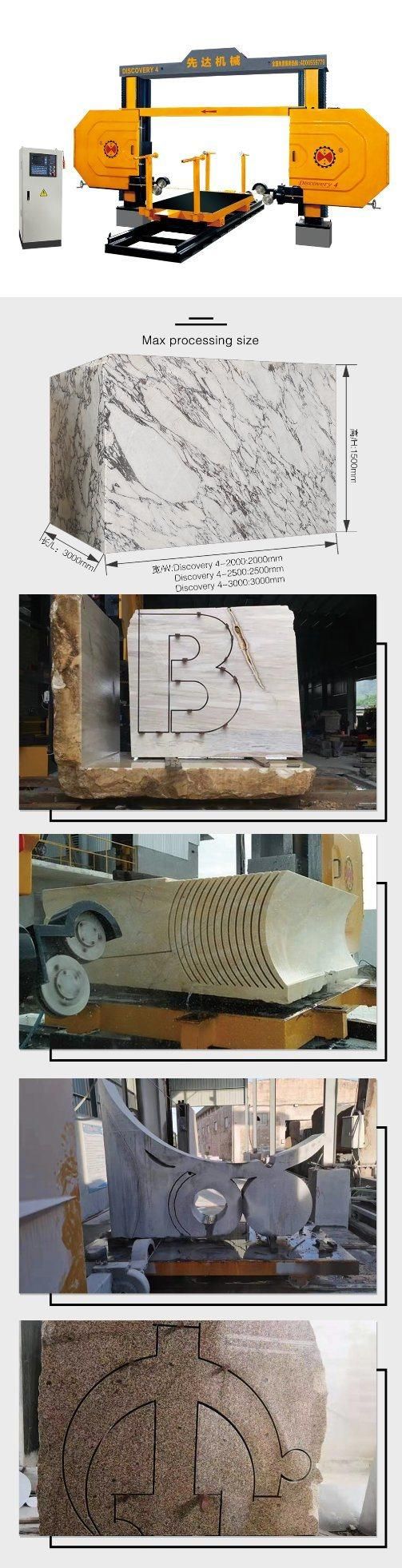

CNC - 2500 Stone block  wire saw cutting machine

CNC -2500 diamond wire saw stone cutting machine is a good choice for irregular stone processing. Easy to operate, it can cut many special shape.



CNC - 2500 Stone block  wire saw cutting machine. Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.

Technical Parameter

Parameter	Unit	CNC-2000	CNC-2500	CNC-3000
Max processing size	mm	3000*2000*1500	3000*2500*1500	3000*3000*1500
Dimension of worktable	mm	2500*1300	2500*1300	2500*1300
Main motor	kw	7.5	7.5	7.5
Gross motor	kw	11	11	11
Outline dimension	mm	6500*6300*3800	7000*6300*3800	7500*6300*3800
Gross weight	kg	5000	5500	6000
Water consumption	m3/h	4	4	4

Xianda machinery



Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.

Key words: stone machine, stone machinery, wire saw machine
