Natural Face Granite Block Splitter and Machine
Xiamen Bestlink Factory Co., Ltd.- Type：Hydraulic Cutting Machine
- Usage：Fire Brick, Concrete Curb, Granite, Marble
- Application：Construction, Mineral Industry, Stone Industry
- Source Voltage：380V
- Automation：Semi-automatic
- Cutting Ability：Medium Speed
Base Info
- Model NO.：BRT20-BRT40-BRT70-BRT160-320T
- Control：Artificial
- Certification：API, ISO, CE
- Max Splitting Height：800mm
- Max Splitting Width：1200mm
- Color：Green and Blue, Other Color Available
- Key Word：Cube Stone Castle Stone,Fieldstone,Ledgestone Cut
- Tons Type：From 20ton to 320tons.
- Main Market：Global Market
- Trade Way：Own Factory Made at Xiamen
- Driven Force：Hydraulic Pump
- Certificate：Ce&ISO2000&SGS
- Export Experience：10 Years

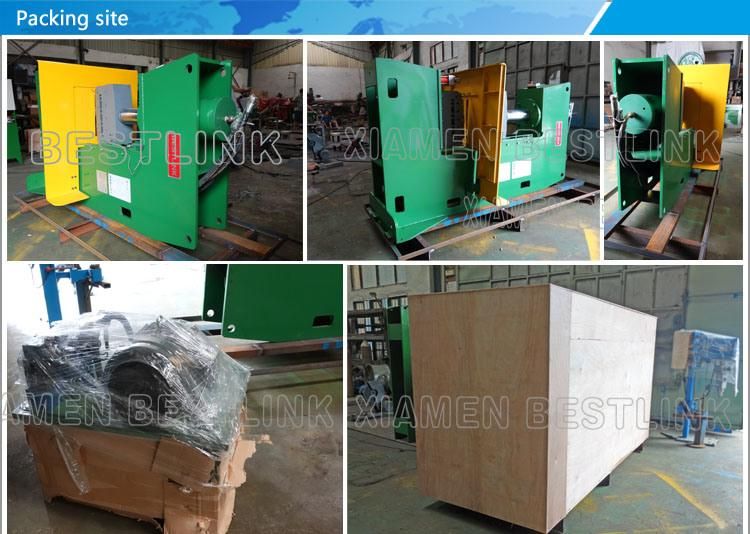

- Transport Package：Plywood Packing
- Specification：CE&SGS
- Trademark：BESTLINK
- Origin：Xiamen China
- HS Code：84791090
- Production Capacity：100sets,Year
Description

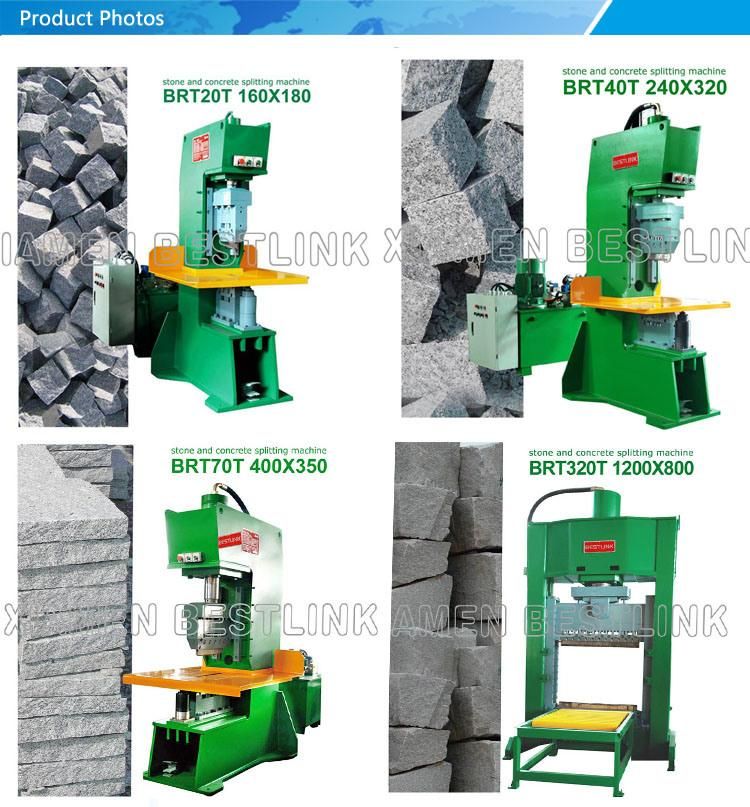

Bridge Type / Closed TypeModel No. BRT320T-1200*800-M BRT200T-1200*400-M BRT160T-1000*400-M BRT120T-1000*300-M BRT70T-800*300-M BRT40T-600*200-M Max splitting force Ton 320 200 160 120 70 40 Max splitting width mm 1200 1200 1000 1000 800 600 Max splitting height mm 800 400 400 300 300 200 Single blade size mm 194*50*40 194*50*40 194*50*40 194*50*40 160*40*25 160*40*25 Blade QTY. pcs 48 48 40 40 40 32 Adaptation of upper/lower blade mm 36*20 30*15 30*15 20*10 20*10 20*10 Power supply KW 22 15 15 15 11 7.5 Main oil cylinder data mm Φ400/Φ280-800 Φ320/Φ200-400 Φ280/Φ200-400 Φ280/Φ200-300 Φ220/Φ140-300 Φ180/Φ120-200 Bench height mm 900 900 900 900 900 900 Machine overall size(L*W*H) mm 2370*1500*3840 2010*1240*2855 1810*1240*2855 1780*1140*2575 1570*1140*2490 1390*1140*2300 Machine weight kg 10000 8500 4800 4000 3000 2200 Hydraulic unit size mm 1280*1000*1475 1280*1000*1475 1280*1000*1345 1280*1000*1345 960*650*1220 800*650*1100 Hydraulic unit weight kg 600 600 550 550 400 310
