• Model NO.：BWT -3500
• Control：PLC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Max Processing Size：3500*3500*2100mm
• Dimension of Worktable：2500*2000mm
• Main Motor：11kw
• Gross Motor：19kw
• Outline Dimension：6800*8900*4700mm
• Gross Weight：8000kg
• Water Consumption：4m3,H
• Color：White,Blue and Yellow
• Used to：Squarring Block
• Maximum Block Height：2100mm
• Transport Package：Load in a 20 Feet Container
• Specification：6500*6300*3800mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. BWT -3500 Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Max Processing Size 3500*3500*2100mm Dimension of Worktable 2500*2000mm Main Motor 11kw Gross Motor 19kw Outline Dimension 6800*8900*4700mm Gross Weight 8000kg Water Consumption 4m3/H Color White,Blue and Yellow Used to Squarring Block Maximum Block Height 2100mm Transport Package Load in a 20 Feet Container Specification 6500*6300*3800mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

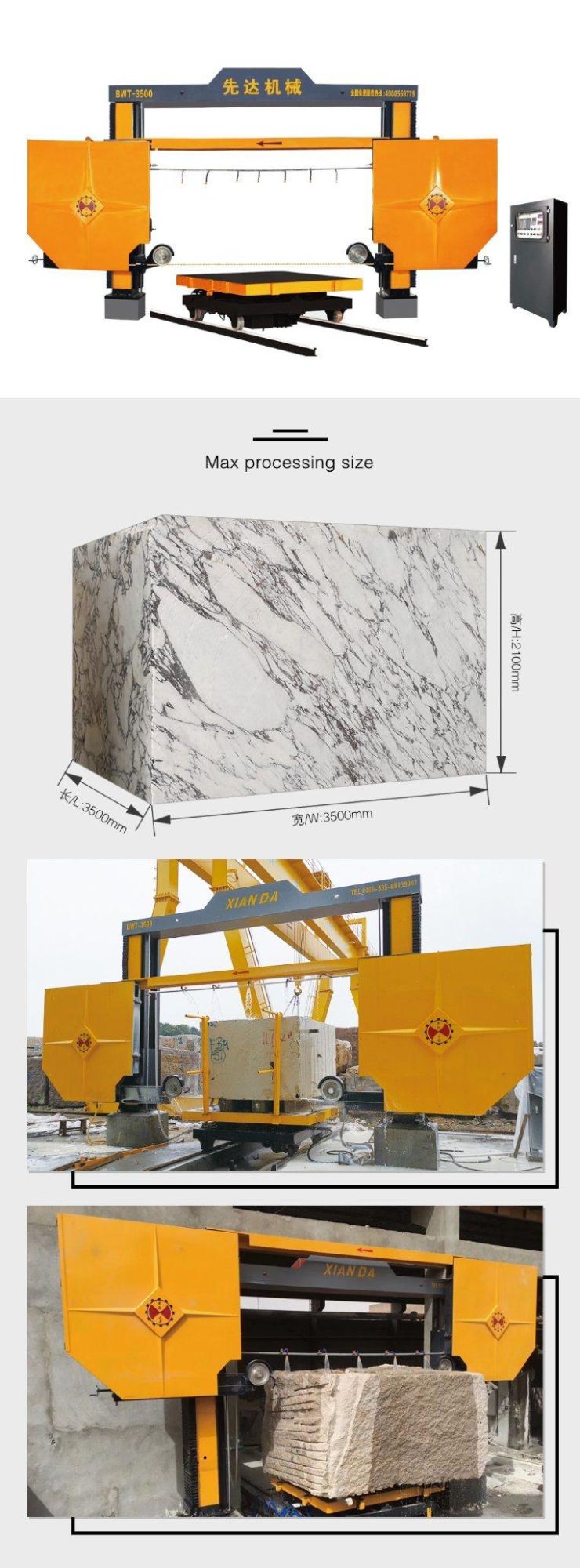

stone cutting machine for squaring block





Product Description
 China Xianda marble granite stone block diamond wire saw edge cutting machine adopts Four-Axis linkage with stable cutting, used to trimming the six surfaces of the stone block, also can cut the block to slab, which is the ideal equipment for cutting the block, and trimming stone block.The special design for 360° worktable will fullfil your need, somemore this machine is able to compatitable with CNC system.Once changed, it will have multi-function with can process the column slab,pillar,roman column,numeral, letter, Chinese characters and other shapes for the stone.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Technical Parameter

Parameter	Unit	BWT-3500
Max processing size	mm	3500*3500*2100
Dimension of worktable	mm	2500*2000
Main motor	kw	11
Gross motor	kw	19
Outline dimension	mm	6800*8900*4700
Gross weight	kg	8000
Water consumption	m³/h	4

Xianda Machinery

Fujian  Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
