• Model NO.：PF1315
• Finished Surface：Outer Surface Process
• Certification：CE, ISO
• Condition：New
• Color：Iron Grey
• Transport Package：Nude Packing
• Specification：PF1315
• Trademark：ANVIK
• Origin：Henan
• HS Code：8474209000
• Production Capacity：100sets,Year

Basic Info.

Model NO. PF1315 Finished Surface Outer Surface Process Certification CE, ISO Condition New Color Iron Grey Transport Package Nude Packing Specification PF1315 Trademark ANVIK Origin Henan HS Code 8474209000 Production Capacity 100sets/Year

Product Description

Application
Impact crusher is new product designed by our company after absorbing the advanced technology home and abroad. This kind of crusher usually is used to crush medium hardness and soft materials.
SBM series of impact crusher is ideal choice for mining, highway and railway surface material making, sand making, construction and chemical industry.

Main Features and Benefits

1. Crushed material is in good cubic shape and no tensility and cranny.
2. Different crushing cavity is available for specific requirement
3. Unique structure, keyless connection.
4. Output size and shape of material is adjustable
5. Heavy blow bar is made of high chrome steel, impact plate with a special shape.

Operating Principle
This impact crushes crusher materials by impact force. When the materials enter into blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support. The machine employs self-weigh security device in its back frame. When other objects enter the impact cavity, they will be forced out of the machine by the impact rack in the front and back of the machine.


Specification


Type	Max Feed Size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)	Overall Dimension (mm)
PF-1007	250	15-60	37	9.5	2235×1776×1860
PF-1010	300	50-90	55	13.2	2320×2255×1624
PF-1210	350	70-130	110	16.5	3357×2255×2466
PF-1214	350	90-180	132	19.5	2700×2700×2900
PF-1315	500	120-250	180	24.8	2750×2720×2930
PF-1320	500	160-350	300	30	2780×2760×2960

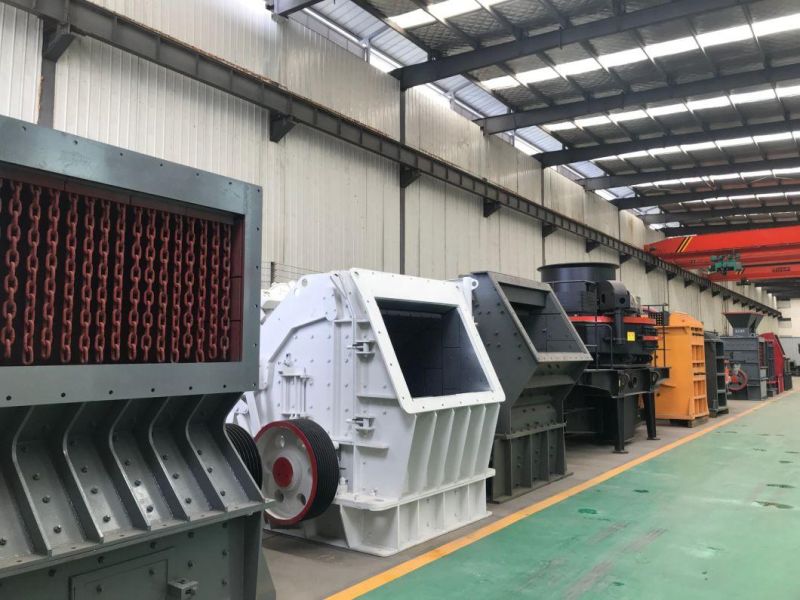

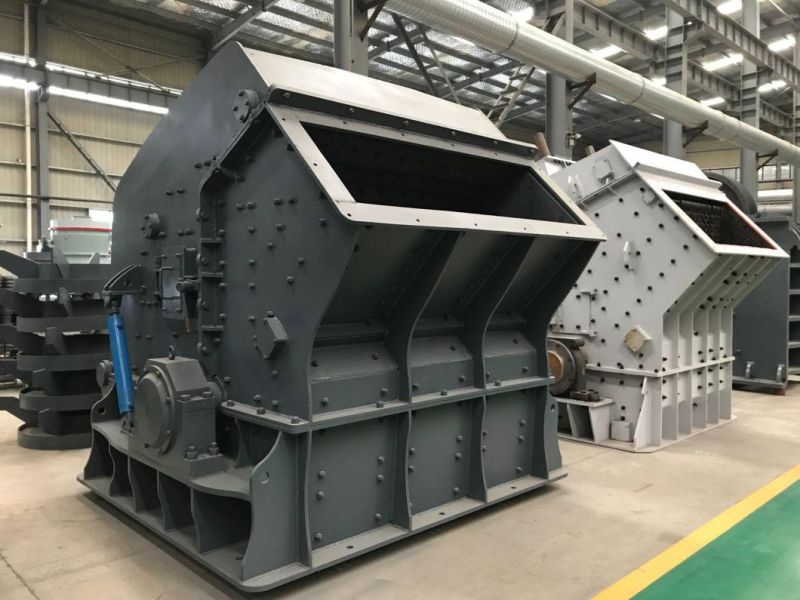

Photos at Our Factory
