• Model NO.：CGE-200
• Finished Surface：Thread Process
• Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
• Condition：New
• Color：Red
• Motor Type：AC Motor
• Power(W)：90-110kw
• Capacity(T/H)：125-290
• Place of Origin：Shanghai, China (Mainland)
• Brand Name：Chuangshen
• Model Number：Cge-200
• Warranty：Mainframe Is One Year (Excluding The Quick Wear PA
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Price：Very Low
• Transport Package：Export Standard
• Specification：Industrial grade
• Trademark：chuangshen
• Origin：Shanghai China
• Production Capacity：5set,Day

Basic Info.

Model NO. CGE-200 Finished Surface Thread Process Certification CE, ISO, GOST, SONCAP, UL, CCC, API Condition New Color Red Motor Type AC Motor Power(W) 90-110kw Capacity(T/H) 125-290 Place of Origin Shanghai, China (Mainland) Brand Name Chuangshen Model Number Cge-200 Warranty Mainframe Is One Year (Excluding The Quick Wear PA After-Sales Service Provided Engineers Available to Service Machinery Overseas Price Very Low Transport Package Export Standard Specification Industrial grade Trademark chuangshen Origin Shanghai China Production Capacity 5set/Day

Product Description

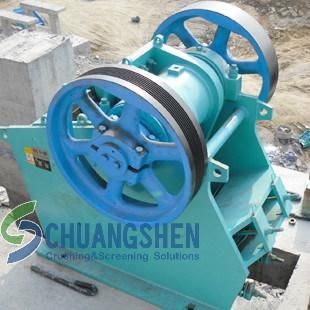

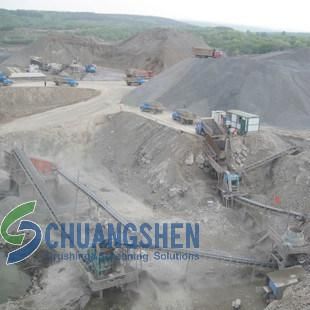

2013 hot sell scrap jaw crusher, scrap stone crusher, jaw crusher scrapCGE Series stone China jaw crusherShanghai ChuangShen Machinery Equipment Co., ltd. Offers a broad range of superior Jaw Crushers, Cone Crushers, Impact Crushers, Vertical Impact Crushers, Vertical or Horizontal Hammer Crushers, Roll crushers, Sand Making Machine, Mobile stone crushers to choose from. Feeders, Vibrating screens, Classification Equipment, Different Casting Parts, High Wear-Resisting Material connecting with crushers are also Offered. R&D team keep crushers in the field of application and development of cutting-edge and continuously provide customers with perfect applications and meet customers with specific application requirements. CGE Series stone China jaw crusherJaw crusher machine ( stone crushing plant ) is mainly applied to the processing of mineral products in industries of metallurgy, construction, chemistry, mining, and crushing hard, medium-hard, soft ore, etc. The crushing machine ( stone crushing plant ) can crush many kinds of mid-hard or hard rocks and ores such as iron ore, limestone, granite, basalt, quartz etc. So our crusher machines are your best choice.  Main advantages of CGE Series stone China jaw crusher (1)Chamber of crusher is designed to have deep cavity, the main parts of the body using wedge welding and overall annealing so that frame structure can be simple, high strength and durable. The design of it ensure that the capacity and reduction ratio of the crusher.  (2)Adopted the design by digital simulation makes the perfect combination of trajectory and speed. Also making crusher get the maximum capacity while reducing losses of tooth wear plates and other wearing parts.  (3)Its structure that can be segmented for replacing tooth plate greatly improve the utilization of the tooth plate.  (4)Products adjust the discharge opening by using hydraulics; it makes operation more convenient and safe.  (5)Double adjustment seat, with arc-shape liner inside it, effectively disperse the Partial pressure to the overall surface, result in extending the life of toggle and adjustment seat.  (6)This type of model is splited up and down, fixed by the dowel pin, easy for assembly, disassembly, transportation and installation at user`s site.  (7) The U. S. technology is adopted in this model.



Model	Feed Opening Size (WxH)(mm)	Max Feeding Size (mm)	Discharging Size (mm)	Capacity (t/h)	Power (kw)	Over dimensions (LxWxH)(mm)	Weight(kg) (exclude electric)
CGE-100	550x910	450	70-130	54-150	75-90	2000x2150 x1900	11000
CGE-200	630x910	550	50-180	125-290	90-110	2770x2330 x2600	18100
CGE-300	760x1065	650	100-170	210-420	110-132	2800x2500 x2840	28000
CGE-350	860x1065	750	200-270	240-500	110-132	2900x2500 x2840	28600
CGE-400	910x1220	750	75-220	280-570	160	3265x2925 x3845	56000
CGE-500	1060x1220	900	100-300	300-650	160-200	3415x2925 x3845	56700
CGE-600	1070x1370	900	90-220	395-720	185-200	3230x2910 X2970	59100
CGE-800	1220x1520	1100	115-250	530-950	220
