• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max.Cut Size(L*W*H)：3200mm*2000mm*170mm
• Automatic Blade：Tilting 0-45 Degree for Miter Cuts
• Functional Table1：Tilting 0-85 Degree
• Functional Table2：Rotating 0-360 Degree Stopped Any Position
• Color Touch Screen：Easy to Operate
• Wireless Remote：Easy Control of Saw
• Laser Guide：Precision Cutting Within+,-0.2mm
• Weight：7200kg
• Transport Package：Water-Proof Plastic Packing
• Specification：Dimention: 6m*5m*3m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641090
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max.Cut Size(L*W*H) 3200mm*2000mm*170mm Automatic Blade Tilting 0-45 Degree for Miter Cuts Functional Table1 Tilting 0-85 Degree Functional Table2 Rotating 0-360 Degree Stopped Any Position Color Touch Screen Easy to Operate Wireless Remote Easy Control of Saw Laser Guide Precision Cutting Within+/-0.2mm Weight 7200kg Transport Package Water-Proof Plastic Packing Specification Dimention: 6m*5m*3m Trademark AGA Origin Xiamen, China HS Code 84641090 Production Capacity 200 Sets/Month

Product Description

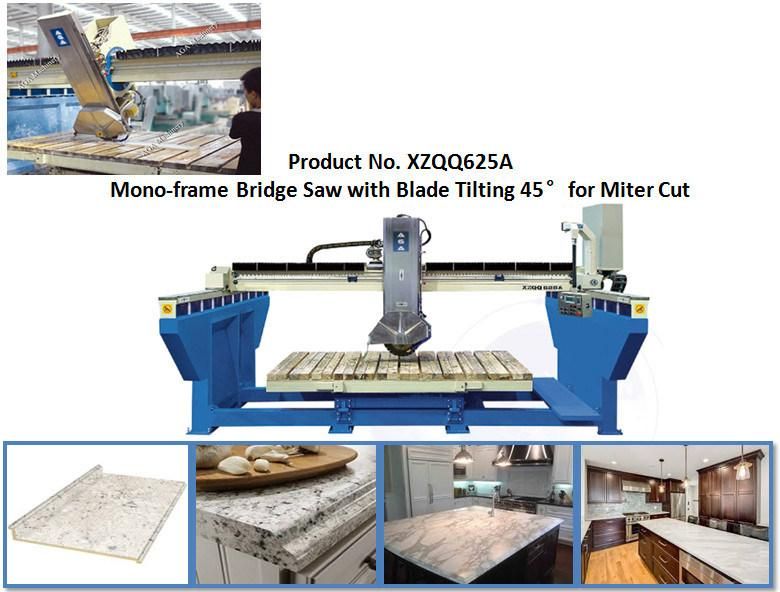

China Robust CNC Machine with 45 Miter Cutting Granite Marble Quartz
Model XZQQ625QA
Are you sourcing a reliable machine for cutting slab&countertop&vanitytop? We suggest you model XZQQ625A which is robust U.S standard made with full optio, inluding mono frame, pendant control panel, touch screen, wireless remote, table rotation and tilting, blade tilting, hydraulic pump, etc. Most customers choose this saw and find it work well.

Application: 1)    cutting granite, marble, quartz and engineered stones.
2) cutting and fabricating slab, counter tops, vanity top, etc.


Granite marble machine/bridge saw technical parameters:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Stone machine details:

The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble and quartz.

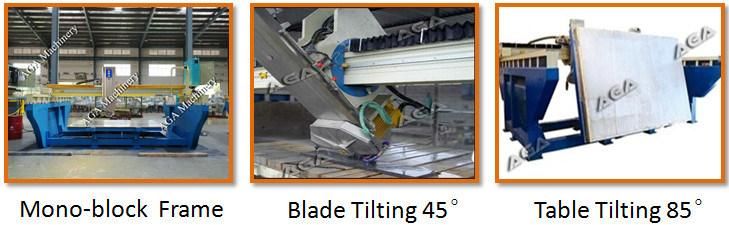

1) Main structures of the machine are made of very strong cast iron and stainless steel for protection. Monoblock frame provides stable operation.
2) The tilting head provides 0°-45°for miter cut very excellent performance in cutting and fabricating countertops.

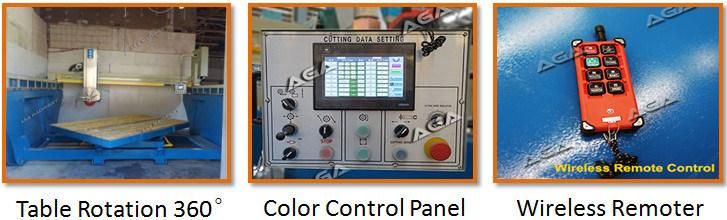

3)Bridge saw table rotates 0°-360° stopping automatically at 45°, 90° and any angle for changing cutting position. The max.cut size of stone can be 3200 × 2000mm×170mm in Length× Width×Thickness.
4) Table tilts 0°-85° for easy load of big slabs.
5) PLC control makes each operation easily. All functions are operated on the Display Control Panel.
6) Wireless remoter provides easy conrols of the bridge saw making its users very friendly.

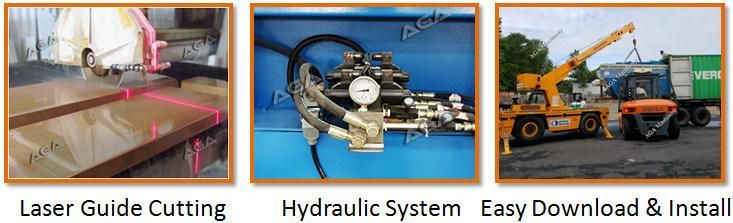

7) Cutting guied by laser provides precision position in +/-0.2mm.
8) This machine is very simple and easy for you to download at the door, also it's very easy to install the machine.
9) Electric components and parts of good international brand adopted, reliability guaranteed


Key words:
Stone bridge saw, bridge saw, granite saw, stone saw, slab saw, slab sizing, slab cutting ,slab sawing , bridge cutting machine, tilting cutting machine, cnc machine, cnc cutting machine, slab cutting machine, edge cutting machine, etc.


FAQ:
1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5) Guarantee:
One year for Warranty.
