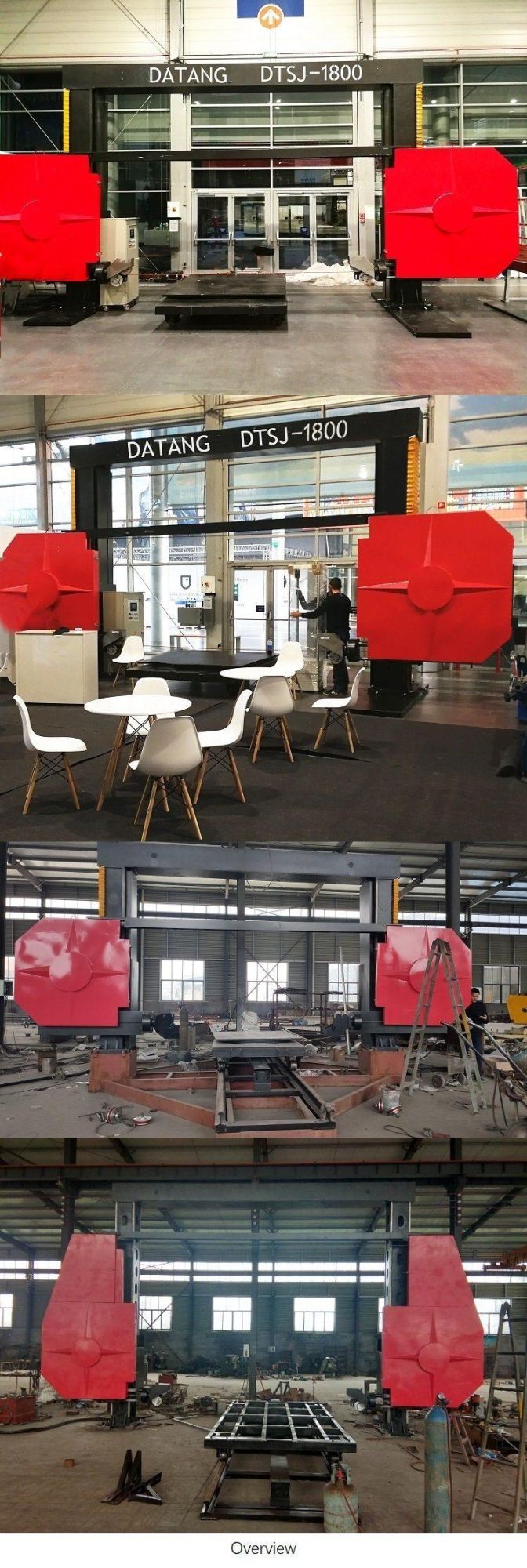

Stone CNC Cutting Machine Artificial Stone Machinery Diamond Wire Saw for Stone

Shandong Datang Machinery Technology Co., Ltd.
  • Warranty：1 Year
  • Type：CNC Cutting Machine

Base Info

  • Model NO.：DTSJ
  • Usage：Granite, Marble
  • Application：Machinery & Hardware, Construction, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：CNC
  • Certification：ISO, CE
  • Diamond Wire Diameter：8-11mm
  • Diamond Wire Length：21350mm
  • Cutting Wire Speed：0-40m,S
  • Lifting Stroke：2200mm
  • Max. Processing Size：4000*2000*2100mm
  • Productivity：1-2m2,H Marble, 0.5-1m2,H Granite
  • Work Table Rotation：360 Degrees
  • Total Power：20.09kw
  • Dimension：9800*7000*5200mm
  • Weight：15000kg
  • Transport Package：Nude
  • Specification：7500*6000*3800mm
  • Trademark：Datang
  • Origin：China
  • HS Code：8464102000
  • Production Capacity：300sets,Year

Description

ModelDTSJ-1500DTSJ-1800DTSJ-2200Diamond Wire Diameter8-11mm8-11mm8-11mmDiamond Wire Length16500mm18500mm21350mmCutting Wire Speed0-40m/s0-40m/s0-40m/sLifting Stroke1600mm1900mm2200mmWork Table Rotation360 degrees360 degrees360 degreesMax. Processing Size3000*2000*1500mm3600*2000*1800mm4000*2000*2100mmProductivity1-2m2/h Marble
0.5-1m2/h Granite1-2m2/h Marble
0.5-1m2/h Granite1-2m2/h Marble
0.5-1m2/h GraniteTotal Power15.09kW15.09kW20.09kWDimension7500*6000*3800mm8800*6800*4800mm9800*7000*5200mmWeight7500kg9500kg15000kg
