• Model NO.：XZQQ625A
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Spindle Motor：15kw, 20HP
• Max. Blade Size：Diameter 625mm
• Table Size (L*W)：3200*2000mm
• Table Rotation：Any Position
• Blade Tilting：0-45°
• Transport Package：Plastic Packing
• Specification：6*5*2.6 m
• Trademark：AGA
• Origin：China
• HS Code：84641010
• Production Capacity：50sets,Month

Basic Info.

Model NO. XZQQ625A Cutting Ability High Speed Control CNC Certification ISO, CE Spindle Motor 15kw/ 20HP Max. Blade Size Diameter 625mm Table Size (L*W) 3200*2000mm Table Rotation Any Position Blade Tilting 0-45° Transport Package Plastic Packing Specification 6*5*2.6 m Trademark AGA Origin China HS Code 84641010 Production Capacity 50sets/Month

Product Description

Bridge Cutting Machine for Granite and Marble-XZQQ625A

Description

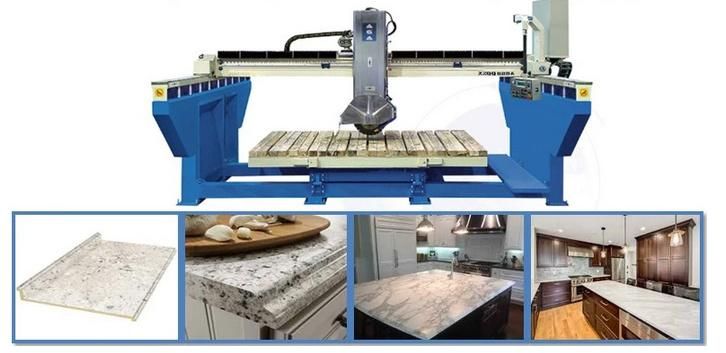

Automatic Bridge Saw for cutting granite, marble, quartz and engineered stones.
A robust bridge saw monoblock applicable for cutting and fabricating slab, counter tops, vanity top, etc.
USA Standard Made with a powerful motor 20 HP and able to cut 3200 mm length, 2000 mm width and 170 mm thick (126"×78"×6.7" L / W / H).

Advantages

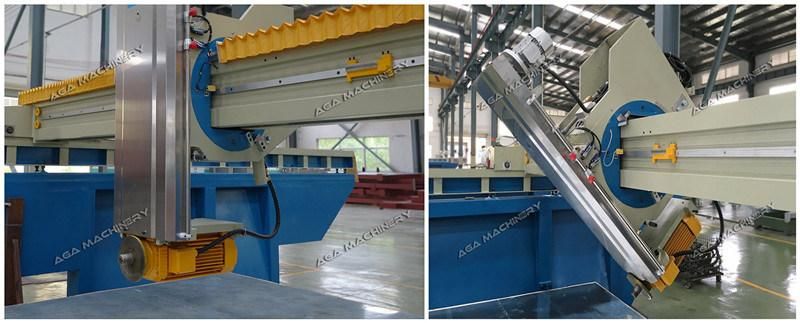

-  Blade travels on the bridge and it also provides automatic power tilting 0 - 45 degree for Miter cuts.

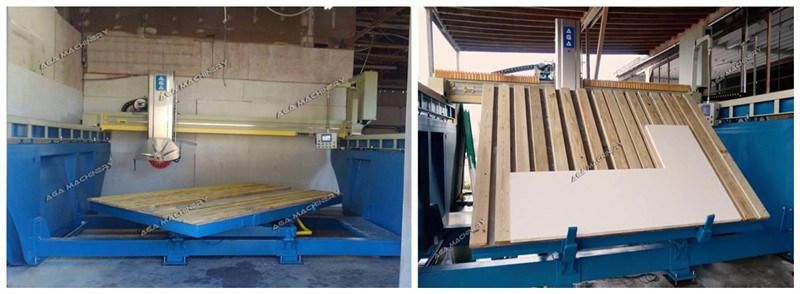

-  Table turns 0 - 360 degree automatically stopped any position and also tilts 0 - 85 degree Hydraulic for easy load of material.
-  This mono block bridge saw machine is computer control and with color Display Touch Screen.
-  It is able to do multiple programs for up to 99 repeat cuts automatically and also capable of manual operation.

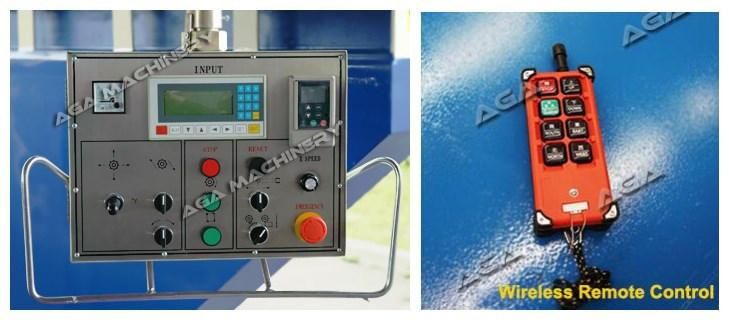

-  Wireless remote provides ease control of the saw.
-  Laser guide and sensors give precision cuts every time.
-  Automatic water control saving every drop.
-  Movements of bridge rails are in covered oil bath ensuring smooth movements and reduced wear.
-  Main structures are made of very strong cast iron for stable running and stainless steel for protection.
-  All functions are operated on the control panel that make it very user friendly.
-  Operating Language in English and Input Sizes unit in Inch or mm.



Spesification:

Blade size	400-625mm   16"-25"
Cut length	3200mm         126"
Cut width	2000mm         78"
Cut thick	170mm            7"
Blade tilt	0 - 45°
Table rotate	0 - 360°
Table tilt	0 - 85°
Spindle motor	15kw              20HP
Size (L×W×H)	6×5×3 m
Weight	7200kg       16000lbs

Keywords: Stone Bridge Saw, Tile Cutter,  4 Axis CNC Machine, Granite Cutting Machine, Marble Cutting Machine, Stone Cutting Machine, CNC Kitchentop Tile Cutter

Guarantee & After Sale Service
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.


FAQ:
1, How to pay to you ?
 T/T in advance We accept 30% deposit , 70% before shipment
2, How long is the delivery time?
For standard machines, it would be 2-5 weeks; For non-standard machines and customized machines according to client s specific requirements, it would be 10 days longer.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

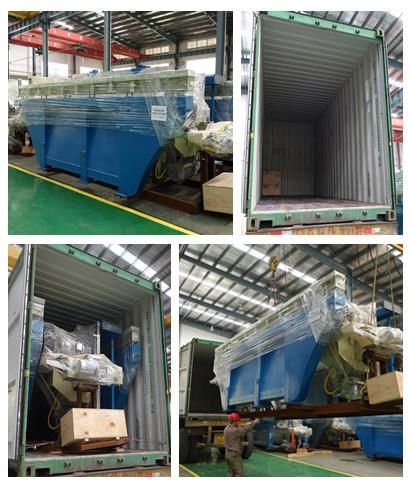

5, What is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
Save space as much as possible for container loading
