Mighty C Air Stone Splitter BRT10t
Xiamen Bestlink Factory Co., Ltd.- Type：Air
- Usage：Ceramics, Cement Brick, Concrete Curb, Granite, Marble
- Application：Machinery & Hardware, Construction, Stone Industry
- Source Voltage：by Air
- Automation：Manual
- Cutting Ability：Low Speed
Base Info
- Model NO.：BRT10T
- Control：Artificial
- Certification：CE
- Color：Green
- Function：New
- Drive：Air
- Transport Package：Pallet
- Specification：CE
- Trademark：Bestlink
- Origin：China
- HS Code：84741090
- Production Capacity：10000sets Per Year
Description
Basic Info.
Model NO. BRT10T Control Artificial Certification CE Color Green Function New Drive Air Transport Package Pallet Specification CE Trademark Bestlink Origin China HS Code 84741090 Production Capacity 10000sets Per YearProduct Description

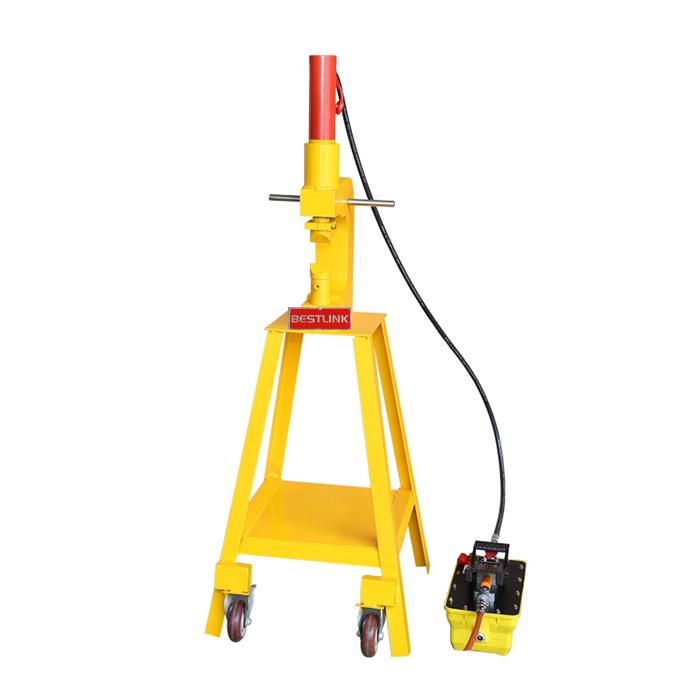

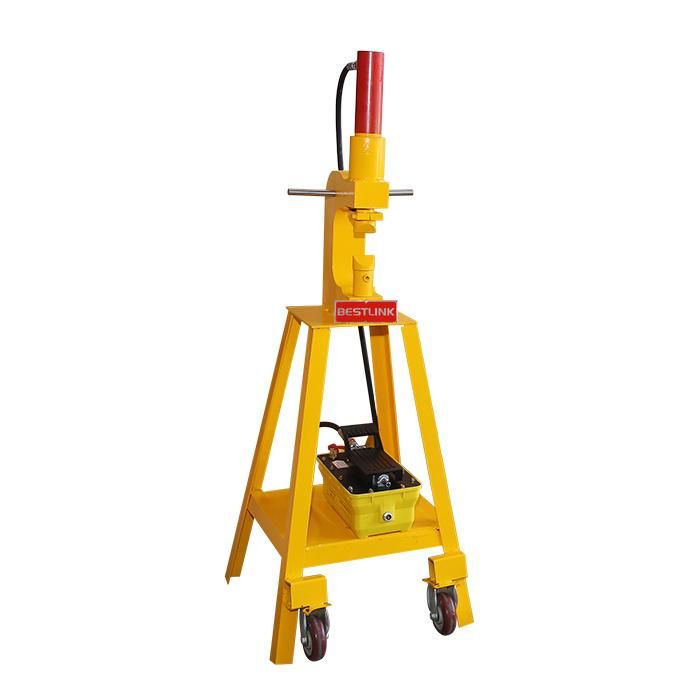

MIGHTY C AIR SPLITTERTechnical Parameter:
Splitting force:10T;
Travelling stroke(max):100mm;
Work pressure:0.6-0.7Mpa;
Air Consumption:250-350L/min.

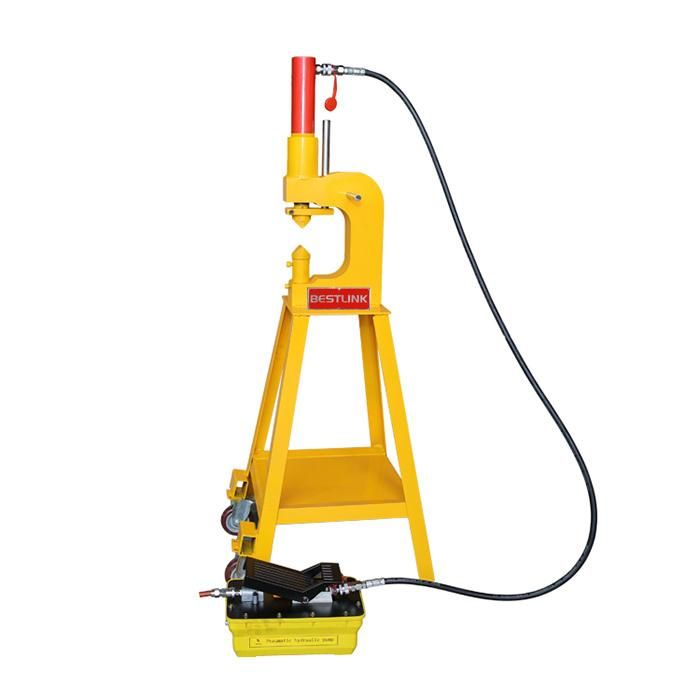

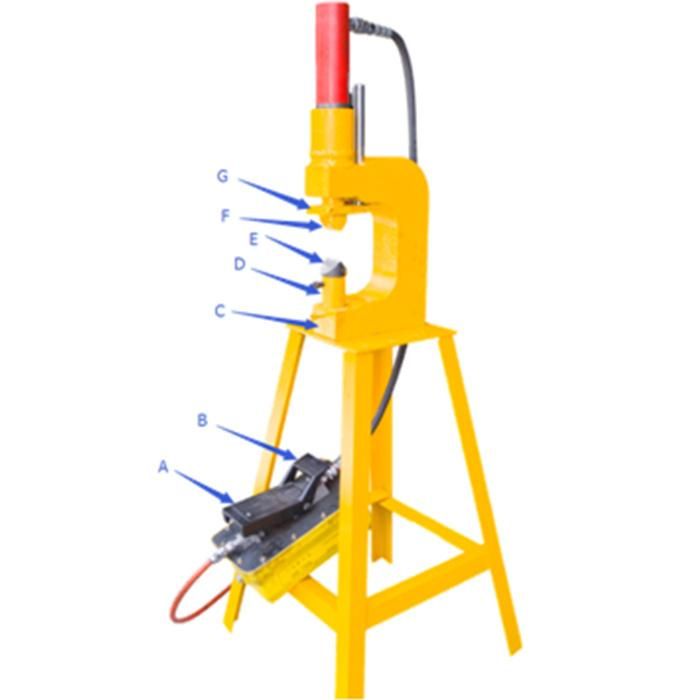

Operation:
1. Connect compressed air to pneumatic hydraulic pump;
2.Put stone between the upper and lower blades(between
E and F)
3.Press the foot switch B part,upper blade F goes down and cuts stone
4.Press the foot switch A part,upper blade F returns.
Adjustment method:
- Cut thick stone (50mm-100mm),take away the adjustment column D and replace the lower blade on the base C directly;
- Ajust the traveling stroke of upper blade F.Loosen the bolt of G,adjust G into a suitable
Safety precautions:(Caution)
Do not put hands between the upper and lower blades to prevent injuring the fingers.
